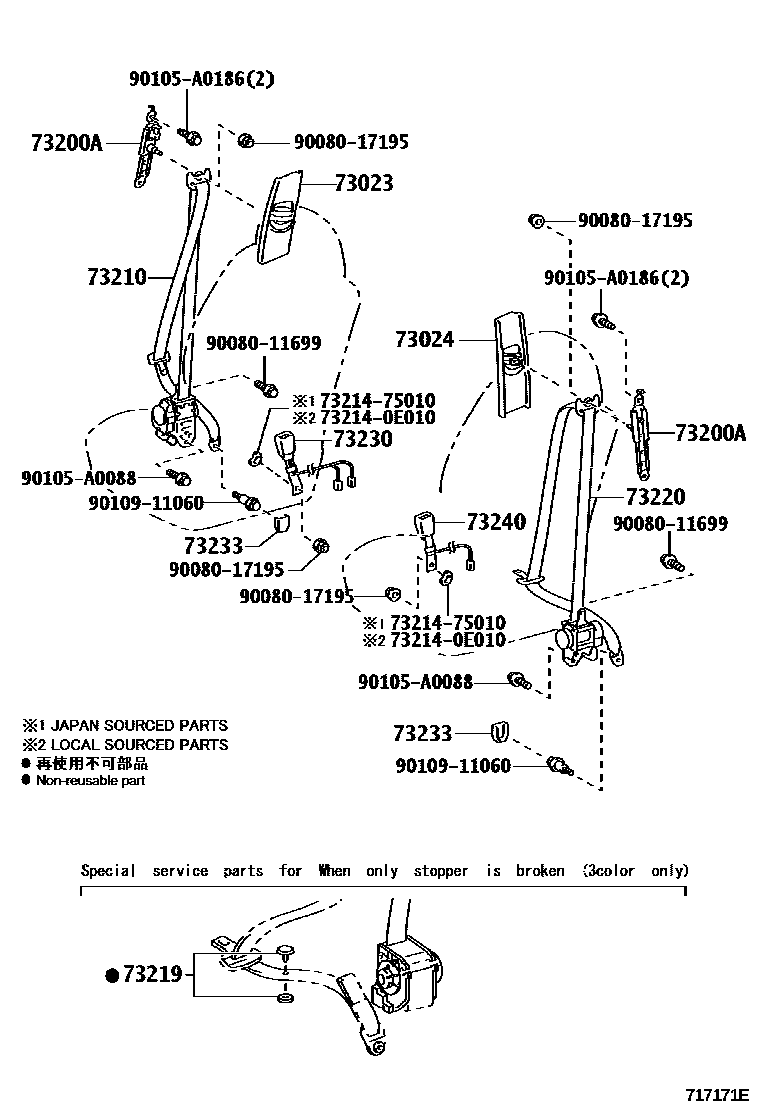

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-06070-A0iASV50201109-201409

IVORY,TRIM0#

main73023-06070-A1iASV50201409-201606

FLAXEN,TRIM0#

main73023-06070-B0iASV50201109-201409

GRAY,TRIM1#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-06070-A0iASV50201109-201409

IVORY,TRIM0#

main73024-06070-A1iASV50201409-201606

FLAXEN,TRIM0#

main73024-06070-B0iASV50201409-201606

GRAY,TRIM1#,2#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-06040×2iASV50201109-201409

main73200-0C020×2iASV50201409

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-06280-A0iASV50201109-201409

IVORY,TRIM0#

main73210-06280-B1iASV50201109-201409

GRAY,TRIM1#

main73210-06340-A0iASV50201409-201511

FLAXEN,TRIM0#

main73210-06340-B0iASV50201409-201511

GRAY,TRIM1#

main73210-06340-C0iASV50201409-201511

BLACK,TRIM2#

main73210-06342-A0iASV50201511-201606

FLAXEN,TRIM0#

main73210-06342-B0iASV50201511-201606

GRAY,TRIM1#

main73210-06342-C0iASV50201511-201606

BLACK,TRIM2#

73219STOPPER, TONGUE PLATE

main73219-02010iASV50201409

BLACK

main73219-02020iASV50201109-201409

GRAY

main73219-02030iASV50201109-201409

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-06280-A0iASV50201109-201409

IVORY,TRIM0#

main73220-06280-B1iASV50201109-201409

GRAY,TRIM1#

main73220-06450-A0iASV50201501-201606

FLAXEN,TRIM0#

main73220-06450-B0iASV50201501-201606

GRAY,TRIM1#

main73220-06450-C0iASV50201501-201606

BLACK,TRIM2#

main73220-07062-A1iASV50201409-201412

FLAXEN,TRIM0#

main73220-07062-B1iASV50201409-201412

GRAY,TRIM1#

main73220-07062-C1iASV50201409-201412

BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-06670-A0iASV50201109-201409

IVORY,TRIM0#

main73230-06670-B0iASV50201109-201409

GRAY,TRIM1#

main73230-06710-A0iASV50201409-201606

FLAXEN,TRIM0#

main73230-06710-B0iASV50201409-201606

GRAY,TRIM1#

main73230-06710-C0iASV50201409-201606

BLACK,TRIM2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-0C010-A0×2iASV50201109-201409

IVORY,TRIM0#

main73233-0C010-A1×2iASV50201409-201606

FLAXEN,TRIM0#

main73233-0C010-B2×2iASV50201409-201606

GRAY,TRIM1#

main73233-0C010-C0×2iASV50201409-201606

BLACK,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-06190-A0iASV50..LE,N201109-201409

IVORY,TRIM0#

main73240-06190-B0iASV50..LE,N201109-201409

GRAY,TRIM1#

main73240-06200-A0iASV50..LE; ASV50..XLE201109-201409

*DRP:WITH(POWER SEAT),IVORY,TRIM0#; IVORY,TRIM0#

main73240-06200-B0iASV50..LE; ASV50..XLE201109-201409

*DRP:WITH(POWER SEAT),GRAY,TRIM1#; GRAY,TRIM1#

main73240-06230-A0iASV50201409-201606

FLAXEN,TRIM0#

main73240-06230-B0iASV50201409-201606

GRAY,TRIM1#

main73240-06230-C0iASV50201409-201606

BLACK,TRIM2#

main73240-06220-A0iASV50..LE201409-201606

FLAXEN,TRIM0#

main73240-06220-B0iASV50..LE201409-201606

GRAY,TRIM1#

main73240-06220-C0iASV50..LE201409-201606

BLACK,TRIM2#

732140E010PLATE, FRONT SEAT BELT ANCHOR

main73214-0E010

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9008011699

main90080-11699

9008017195

main90080-17195

90105A0088

main90105-A0088

90105A0186

main90105-A0186

9010911060

main90109-11060

16 parts on this diagram · 2 diagrams in section
