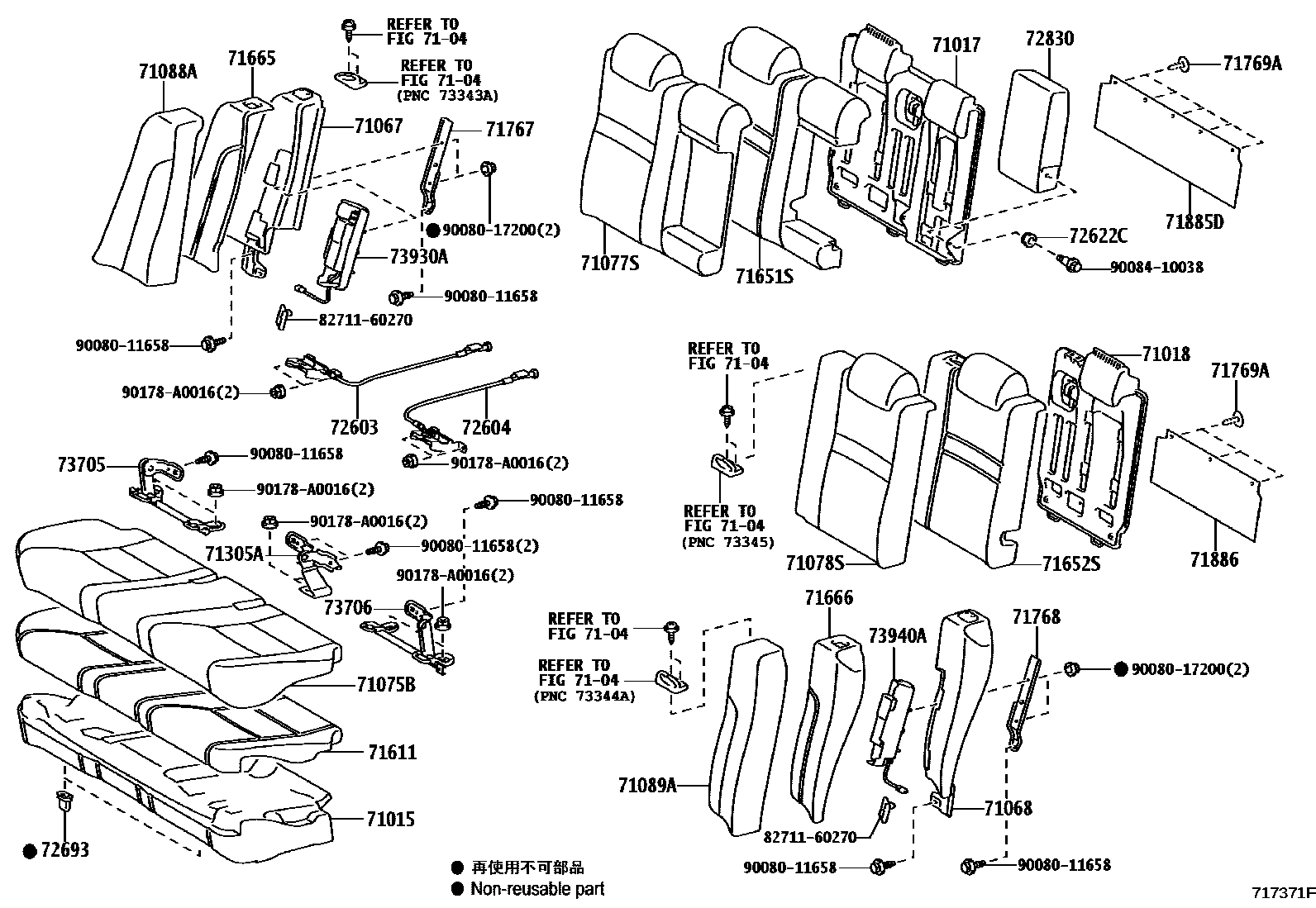

REAR SEAT & SEAT TRACK

71015FRAME SUB-ASSY, REAR SEAT CUSHION

main71015-06060iASV50201109-201409

main71015-06140iASV50201409

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-06170-C1iASV50201109-201409

BLACK,TRIM0#,1#

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-06120-C1iASV50201109-201409

BLACK,TRIM0#,1#

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71067FRAME SUB-ASSY, REAR SIDE SEATBACK, RH

main71067-06030iASV50201109-201409

71068FRAME SUB-ASSY, REAR SIDE SEATBACK, LH

main71068-06030iASV50201109-201409

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-06C10-B1iASV50201109-201212

GRAY,TRIM1#

main71075-06C10-B2iASV50201109-201212

IVORY,TRIM0#

main71075-06C11-A0iASV50201212-201409

LT IVORY,TRIM0#

main71075-06C11-B1iASV50201212-201409

GRAY,TRIM1#

main71075-06D81-A0iASV50..LE201409-201606

FLAXEN,TRIM0#

main71075-06D81-B0iASV50..LE201409-201606

GRAY,TRIM1#

main71075-06D81-C0iASV50..LE201409-201606

BLACK,TRIM2#

main71075-06D91-A3iASV50..XLE201409-201606

CREAM,TRIM0#

main71075-06D91-B2iASV50..XLE201409-201606

NEUTRAL GRAY,TRIM1#

main71075-06D91-C3iASV50..XLE201409-201606

BLACK,TRIM2#

main71075-06C20-A0iASV50..XLE201109-201212

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#

main71075-06C20-B3iASV50..XLE201109-201212

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#

main71075-06C21-A0iASV50..XLE201212-201409

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#

main71075-06C21-B3iASV50..XLE201212-201409

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-06D90-A3iASV50201109-201212

IVORY,TRIM0#

main71077-06D90-B3iASV50201109-201212

GRAY,TRIM1#

main71077-06D91-A4iASV50201212-201409

IVORY,TRIM0#

main71077-06D91-B3iASV50201212-201409

GRAY,TRIM1#

main71077-06F10-A1iASV50..LE201409-201606

FLAXEN,TRIM0#

main71077-06F10-B1iASV50..LE201409-201606

GRAY,TRIM1#

main71077-06F10-C1iASV50..LE201409-201606

BLACK,TRIM2#

main71077-06J00-A3iASV50..XLE201409-201606

FLAXEN,TRIM0#

main71077-06J00-B3iASV50..XLE201409-201606

GRAY,TRIM1#

main71077-06J00-C3iASV50..XLE201409-201606

BLACK,TRIM2#

main71077-06E00-A4iASV50..XLE201109-201212

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#

main71077-06E00-B3iASV50..XLE201109-201212

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#

main71077-06E01-A4iASV50..XLE201212-201409

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#

main71077-06E01-B3iASV50..XLE201212-201409

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-06730-A3iASV50201109-201212

IVORY,TRIM0#

main71078-06730-B3iASV50201109-201212

GRAY,TRIM1#

main71078-06731-A4iASV50201212-201409

IVORY,TRIM0#

main71078-06731-B3iASV50201212-201409

GRAY,TRIM1#

main71078-06800-A1iASV50..LE201409-201606

FLAXEN,TRIM0#

main71078-06800-B1iASV50..LE201409-201606

GRAY,TRIM1#

main71078-06800-C1iASV50..LE201409-201606

BLACK,TRIM2#

main71078-06810-A3iASV50..XLE201409-201606

FLAXEN,TRIM0#

main71078-06810-B3iASV50..XLE201409-201606

GRAY,TRIM1#

main71078-06810-C3iASV50..XLE201409-201606

BLACK,TRIM2#

main71078-06740-A4iASV50..XLE201109-201212

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#

main71078-06740-B3iASV50..XLE201109-201212

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#

main71078-06741-A4iASV50..XLE201212-201409

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#

main71078-06741-B3iASV50..XLE201212-201409

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#

71088ACOVER SUB-ASSY, REAR SIDE SEATBACK, RH

main71088-06130-A2iASV50201109-201409

IVORY,TRIM0#

main71088-06130-B2iASV50201109-201409

GRAY,TRIM1#

main71088-06170-A1iASV50..LE201409-201606

FLAXEN,TRIM0#

main71088-06170-B1iASV50..LE201409-201606

GRAY,TRIM1#

main71088-06170-C1iASV50..LE201409-201606

BLACK,TRIM2#

main71088-06260-A4iASV50..XLE201409-201606

FLAXEN,TRIM0#

main71088-06260-B5iASV50..XLE201409-201606

GRAY,TRIM1#

main71088-06260-C5iASV50..XLE201409-201606

BLACK,TRIM2#

main71088-06150-A2iASV50..XLE201109-201212

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#

main71088-06150-B4iASV50..XLE201109-201212

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#

main71088-06151-A2iASV50..XLE201212-201409

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#

main71088-06151-B4iASV50..XLE201212-201409

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#

71089ACOVER SUB-ASSY, REAR SIDE SEATBACK, LH

main71089-06130-A1iASV50201109-201409

IVORY,TRIM0#

main71089-06130-B1iASV50201109-201409

GRAY,TRIM1#

main71089-06140-A1iASV50..LE201409-201606

FLAXEN,TRIM0#

main71089-06140-B1iASV50..LE201409-201606

GRAY,TRIM1#

main71089-06140-C1iASV50..LE201409-201606

BLACK,TRIM2#

main71089-06270-A4iASV50..XLE201409-201606

FLAXEN,TRIM0#

main71089-06270-B5iASV50..XLE201409-201606

GRAY,TRIM1#

main71089-06270-C5iASV50..XLE201409-201606

BLACK,TRIM2#

main71089-06160-A2iASV50..XLE201109-201212

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#

main71089-06160-B2iASV50..XLE201109-201212

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#

main71089-06161-A2iASV50..XLE201212-201409

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#

main71089-06161-B2iASV50..XLE201212-201409

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-06060iASV50201109-201409

71611PAD, REAR SEAT CUSHION

main71503-06220iASV50201109-201409

main71503-06221iASV50201409

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-06340iASV50201109-201409

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-06150iASV50201109-201409

71665PAD, REAR SEATBACK SIDE, RH

main71665-06051iASV50201109-201409

71666PAD, REAR SEATBACK SIDE, LH

main71666-06061iASV50201109-201409

71767BRACKET, REAR SIDE SEATBACK SET, REAR RH

main71767-06010iASV50201109-201409

71768BRACKET, REAR SIDE SEATBACK SET, REAR LH

main71768-06010iASV50201109-201409

71769ACLIP, REAR SEATBACK BOARD

main71769-06010-C0×8iASV50201109-201409

BLACK,TRIM0#,1#

71885DCARPET, REAR SEATBACK, RH

main71885-06070-C1iASV50201409-201606

BLACK,TRIM0#,1#,2#

71886CARPET, REAR SEATBACK, LH

main71886-06060-C1iASV50201409-201606

BLACK,TRIM0#,1#,2#

72603LOCK SUB-ASSY, REAR SEATBACK, RH

main72630-06040iASV50201109-201409

72604LOCK SUB-ASSY, REAR SEATBACK, LH

main72640-06040iASV50201109-201409

72622CBUSH, REAR SEATBACK PROTECTOR SHAFT

main72622-0T020iASV50201409

72693HOOK, REAR SEAT CUSHION LOCK

main72693-06030×2iASV50201209-201409

main72693-12080×2iASV50201109-201208

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-06760-A0iASV50..LE201409-201606

FLAXEN,TRIM0#

main72830-06760-B0iASV50..LE201409-201606

GRAY,TRIM1#

main72830-06760-C0iASV50..LE201409-201606

BLACK,TRIM2#

main72830-06770-A0iASV50..XLE201409-201606

FLAXEN,TRIM0#

main72830-06770-B1iASV50..XLE201409-201606

GRAY,TRIM1#

main72830-06770-C0iASV50..XLE201409-201606

BLACK,TRIM2#

main72830-06870-A1iASV50201109-201409

IVORY,TRIM0#

main72830-06870-B1iASV50201109-201409

GRAY,TRIM1#

main72830-06880-A1iASV50..XLE201109-201212

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#

main72830-06880-B1iASV50..XLE201109-201212

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#

main72830-06881-A1iASV50..XLE201212-201409

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,IVORY,TRIM0#

main72830-06881-B1iASV50..XLE201212-201409

*DRP:WITH(POWER SEAT) & LEATHER PACKAGE,GRAY,TRIM1#

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-06050iASV50201109-201409

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73706-06050iASV50201109-201409

73930AAIRBAG ASSY, REAR SEAT, RH

main73930-06040iASV50201109-201409

main73930-06050iASV50201409

73940AAIRBAG ASSY, REAR SEAT, LH

main73940-06040iASV50201109-201409

main73940-06050iASV50201409

8271160270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60270

9008011658

main90080-11658

9008017200

main90080-17200

9008410038

main90084-10038

90178A0016

main90178-A0016

36 parts on this diagram · 1 diagram in section
