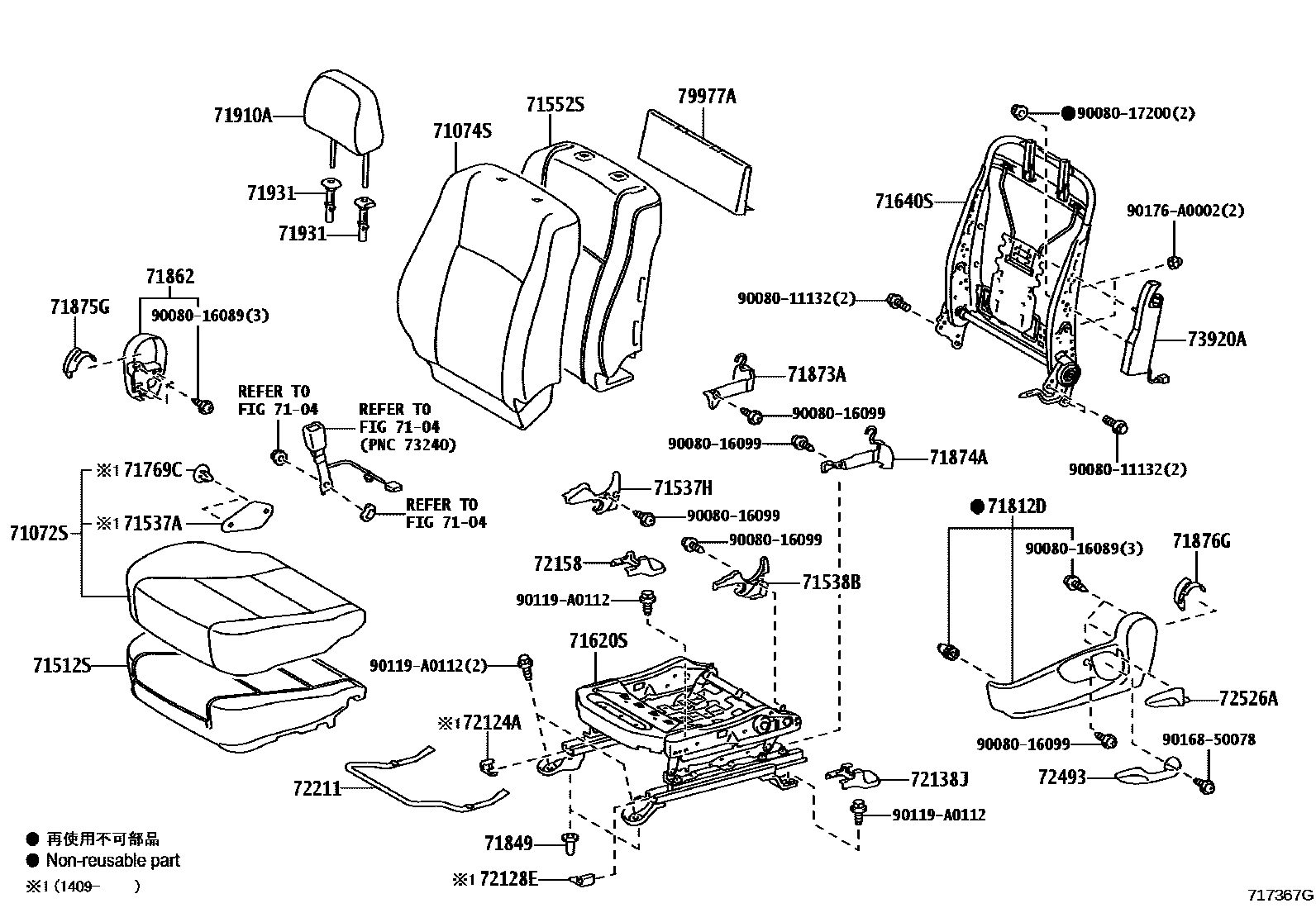

FRONT SEAT & SEAT TRACK

0001 1DRIVER SEAT 0002 1DRIVER SEAT(POWER SEAT) 0003 1PASSENGER SEAT 0004 1PASSENGER SEAT(POWER SEAT)

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-06D50-A1iASV50..LE201409-201606

FLAXEN,TRIM0#

main71072-06D50-B1iASV50..LE201409-201606

GRAY,TRIM1#

main71072-06D50-C1iASV50..LE201409-201606

BLACK,TRIM2#

main71072-06E10-A3iASV50..XLE201409-201606

FLAXEN,TRIM0#

main71072-06E10-B3iASV50..XLE201409-201606

GRAY,TRIM1#

main71072-06E10-C2iASV50..XLE201409-201606

BLACK,TRIM2#

main71072-06F40-B2iASV50..LE,N201109-201212

GRAY,TRIM1#

main71072-06F40-B3iASV50..LE,N201109-201212

IVORY,TRIM0#

main71072-06F41-A0iASV50..LE,N201212-201409

LT IVORY,TRIM0#

main71072-06F41-B2iASV50..LE,N201212-201409

GRAY,TRIM1#

main71072-06F50-B2iASV50..LE201109-201212

GRAY,TRIM1#

main71072-06F50-B2iASV50..XLE201109-201212

*DRP:WITH(POWER SEAT),GRAY,TRIM1#

main71072-06F50-B3iASV50..LE201109-201212

IVORY,TRIM0#

main71072-06F50-B3iASV50..XLE201109-201212

*DRP:WITH(POWER SEAT),IVORY,TRIM0#

main71072-06F51-A0iASV50..XLE201212-201409

*DRP:WITH(POWER SEAT),LT IVORY,TRIM0#

main71072-06F51-A0iASV50..XLE201212-201409

LT IVORY,TRIM0#

main71072-06F51-B2iASV50..LE201212-201409

*DRP:WITH(POWER SEAT),GRAY,TRIM1#

main71072-06F51-B2iASV50..XLE201212-201409

GRAY,TRIM1#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-06G00-A0iASV50..LE201409-201606

FLAXEN,TRIM0#

main71074-06G00-B0iASV50..LE201409-201606

GRAY,TRIM1#

main71074-06G00-C0iASV50..LE201409-201606

BLACK,TRIM2#

main71074-06G30-A2iASV50..XLE201409-201606

FLAXEN,TRIM0#

main71074-06G30-B2iASV50..XLE201409-201606

GRAY,TRIM1#

main71074-06G30-C1iASV50..XLE201409-201606

BLACK,TRIM2#

main71074-06G80-B2iASV50201109-201212

GRAY,TRIM1#

main71074-06G80-B3iASV50201109-201212

IVORY,TRIM0#

main71074-06G81-A0iASV50201212-201409

IVORY,TRIM0#

main71074-06G81-B2iASV50201212-201409

GRAY,TRIM1#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-06450iASV50..LE,N201109-201212

main71512-06451iASV50..LE,N201212-201409

main71512-06460iASV50..XLE201109-201212

*DRP:WITH(POWER SEAT)

main71512-06461iASV50201409-201606

main71512-06461iASV50..XLE201212-201409

*DRP:WITH(POWER SEAT)

71537APROTECTOR, FRONT SEAT CUSHION

main71537-06200iASV50201409-201606

71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

main71537-08020-A0iASV50201109-201409

IVORY,TRIM0#

main71537-08020-A1iASV50201409-201606

FLAXEN,TRIM0#

main71537-08020-B2iASV50201109-201606

GRAY,TRIM1#

main71537-08020-C0iASV50201409-201606

BLACK,TRIM2#

71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

main71538-08020-A0iASV50201109-201409

IVORY,TRIM0#

main71538-08020-A1iASV50201409-201606

FLAXEN,TRIM0#

main71538-08020-B2iASV50201109-201606

GRAY,TRIM1#

main71538-08020-C0iASV50201409-201606

BLACK,TRIM2#

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-06341iASV50201109-201606

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-06341iASV50..LE,N201109-201404

main71620-06342iASV50..LE,N201404-201409

main71620-06351iASV50..LE201109-201404

*DRP:WITH(POWER SEAT)

main71620-06352iASV50..XLE201404-201409

*DRP:WITH(POWER SEAT)

main71620-06352iASV50..LE201409-201606

main71620-06362iASV50..XLE201409-201606

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-06420iASV50..LE,N201109-201409

main71640-06430iASV50..LE201109-201409

*DRP:WITH(POWER SEAT)

main71640-06430iASV50201409-201606

71769CCLIP, FRONT SEAT CUSHION COVER

main71769-60010-A4iASV50201409-201606

FLAXEN,TRIM0#

main71769-60010-B9iASV50201409-201606

GRAY,TRIM1#

main71769-60010-C0iASV50201409-201606

BLACK,TRIM2#

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-06280-A0iASV50..LE,N201109-201409

IVORY,TRIM0#

main71812-06280-B0iASV50..LE,N201109-201409

GRAY,TRIM1#

main71812-06290-A0iASV50..XLE201109-201409

IVORY,TRIM0#

main71812-06290-A0iASV50..XLE201109-201409

*DRP:WITH(POWER SEAT),IVORY,TRIM0#

main71812-06290-A1iASV50201409-201606

FLAXEN,TRIM0#

main71812-06290-B0iASV50..XLE201109-201606

GRAY,TRIM1#

main71812-06290-B0iASV50..XLE201109-201409

*DRP:WITH(POWER SEAT),GRAY,TRIM1#

main71812-06290-C0iASV50201409-201606

BLACK,TRIM2#

71849CAP, SEAT ADJUSTER COVER, LH

main71848-47010iASV50201109-201606

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-06200-A0iASV50..LE,N201109-201409

IVORY,TRIM0#

main71862-06200-B0iASV50..LE,N201109-201409

GRAY,TRIM1#

main71862-06210-A0iASV50..XLE201109-201409

IVORY,TRIM0#

main71862-06210-A0iASV50..XLE201109-201409

*DRP:WITH(POWER SEAT),IVORY,TRIM0#

main71862-06210-A1iASV50201409-201606

FLAXEN,TRIM0#

main71862-06210-B0iASV50..XLE201109-201409

*DRP:WITH(POWER SEAT),GRAY,TRIM1#

main71862-06210-B0iASV50..XLE201109-201606

GRAY,TRIM1#

main71862-06210-C0iASV50201409-201606

BLACK,TRIM2#

71873ASHIELD, FRONT SEAT CUSHION, LOWER

main71873-06420iASV50201109-201606

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-06540iASV50..XLE201109-201409

*DRP:WITH(POWER SEAT)

main71874-06540iASV50201409-201606

main71874-08010iASV50..LE,N201109-201409

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71875-08010-A0iASV50..LE,N201109-201409

IVORY,TRIM0#

main71875-08010-B2iASV50..LE,N201109-201409

GRAY,TRIM1#

main71875-08120-A0iASV50..XLE201109-201409

*DRP:WITH(POWER SEAT),IVORY,TRIM0#

main71875-08120-A0iASV50..XLE201109-201409

IVORY,TRIM0#

main71875-08120-A1iASV50201409-201606

FLAXEN,TRIM0#

main71875-08120-B2iASV50..XLE201109-201606

GRAY,TRIM1#

main71875-08120-B2iASV50..XLE201109-201409

*DRP:WITH(POWER SEAT),GRAY,TRIM1#

main71875-08120-C0iASV50201409-201606

BLACK,TRIM2#

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-08010-A0iASV50..LE,N201109-201409

IVORY,TRIM0#

main71876-08010-B2iASV50..LE,N201109-201409

GRAY,TRIM1#

main71876-08080-A0iASV50..LE201109-201409

IVORY,TRIM0#

main71876-08080-A0iASV50..XLE201109-201409

*DRP:WITH(POWER SEAT),IVORY,TRIM0#

main71876-08080-A1iASV50201409-201606

FLAXEN,TRIM0#

main71876-08080-B2iASV50..XLE201109-201409

*DRP:WITH(POWER SEAT),GRAY,TRIM1#

main71876-08080-B2iASV50..LE201109-201606

GRAY,TRIM1#

main71876-08080-C0iASV50201409-201606

BLACK,TRIM2#

71910AHEADREST ASSY, FRONT SEAT

main71910-06710-A0iASV50201109-201409

IVORY,TRIM0#

main71910-06710-B0iASV50201109-201409

GRAY,TRIM1#

main71910-06810-A0iASV50..LE201409-201606

FLAXEN,TRIM0#

main71910-06810-B0iASV50..LE201409-201606

GRAY,TRIM1#

main71910-06810-C0iASV50..LE201409-201606

BLACK,TRIM2#

main71910-06860-A2iASV50..XLE201409-201606

FLAXEN,TRIM0#

main71910-06860-B2iASV50..XLE201409-201606

GRAY,TRIM1#

main71910-06860-C1iASV50..XLE201409-201606

BLACK,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47020-A1iASV50201109-201409

W(LOCK),IVORY,TRIM0#

main71930-47020-A7iASV50201409-201606

W(LOCK),FLAXEN,TRIM0#

main71930-47020-B5iASV50201109-201606

W(LOCK),GRAY,TRIM1#

main71930-47020-C0iASV50201409-201606

W(LOCK),BLACK,TRIM2#

main71931-47020-A1iASV50201109-201409

W/O(LOCK),IVORY,TRIM0#

main71931-47020-A7iASV50201409-201606

W/O(LOCK),FLAXEN,TRIM0#

main71931-47020-B5iASV50201109-201606

W/O(LOCK),GRAY,TRIM1#

main71931-47020-C0iASV50201409-201606

W/O(LOCK),BLACK,TRIM2#

72124ACOVER, SEAT TRACK BRACKET, INNER FRONT LH

main72123-06200iASV50201409-201606

72128ECOVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72127-06120iASV50201409-201606

72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER

main72138-06190-A0iASV50201109-201409

IVORY,TRIM0#

main72138-06190-A1iASV50201409-201606

FLAXEN,TRIM0#

main72138-06190-B0iASV50201109-201606

GRAY,TRIM1#

main72138-06190-C0iASV50201409-201606

BLACK,TRIM2#

72158COVER, SEAT TRACK BRACKET, INNER LH

main72158-06180-A0iASV50201109-201409

IVORY,TRIM0#

main72158-06180-A1iASV50201409-201606

FLAXEN,TRIM0#

main72158-06180-B0iASV50201109-201606

GRAY,TRIM1#

main72158-06180-C0iASV50201409-201606

BLACK,TRIM2#

72211HANDLE, SEAT TRACK ADJUSTING

main72211-06080iASV50..XLE201109-201409

*DRP:WITH(POWER SEAT)

main72211-06080iASV50..LE201409-201606

72493HANDLE, VERTICAL ADJUSTING, NO.2

main72493-06020-A0iASV50..LE,N201109-201409

IVORY,TRIM0#

main72493-06020-B0iASV50..LE,N201109-201409

GRAY,TRIM1#

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-08010-A0iASV50..LE,N201109-201409

IVORY,TRIM0#

main72526-08010-B1iASV50..LE,N201109-201409

GRAY,TRIM1#

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-06120iASV50201109-201409

main73920-06180iASV50201409-201606

79977AFELT, SEATBACK

main79977-06020iASV50201109-201606

9008011132

main90080-11132

9008016089

main90080-16089

9008016099

main90080-16099

9008017200

main90080-17200

90119A0112

main90119-A0112

9016850078

main90168-50078

90176A0002

main90176-A0002

36 parts on this diagram · 4 diagrams in section
