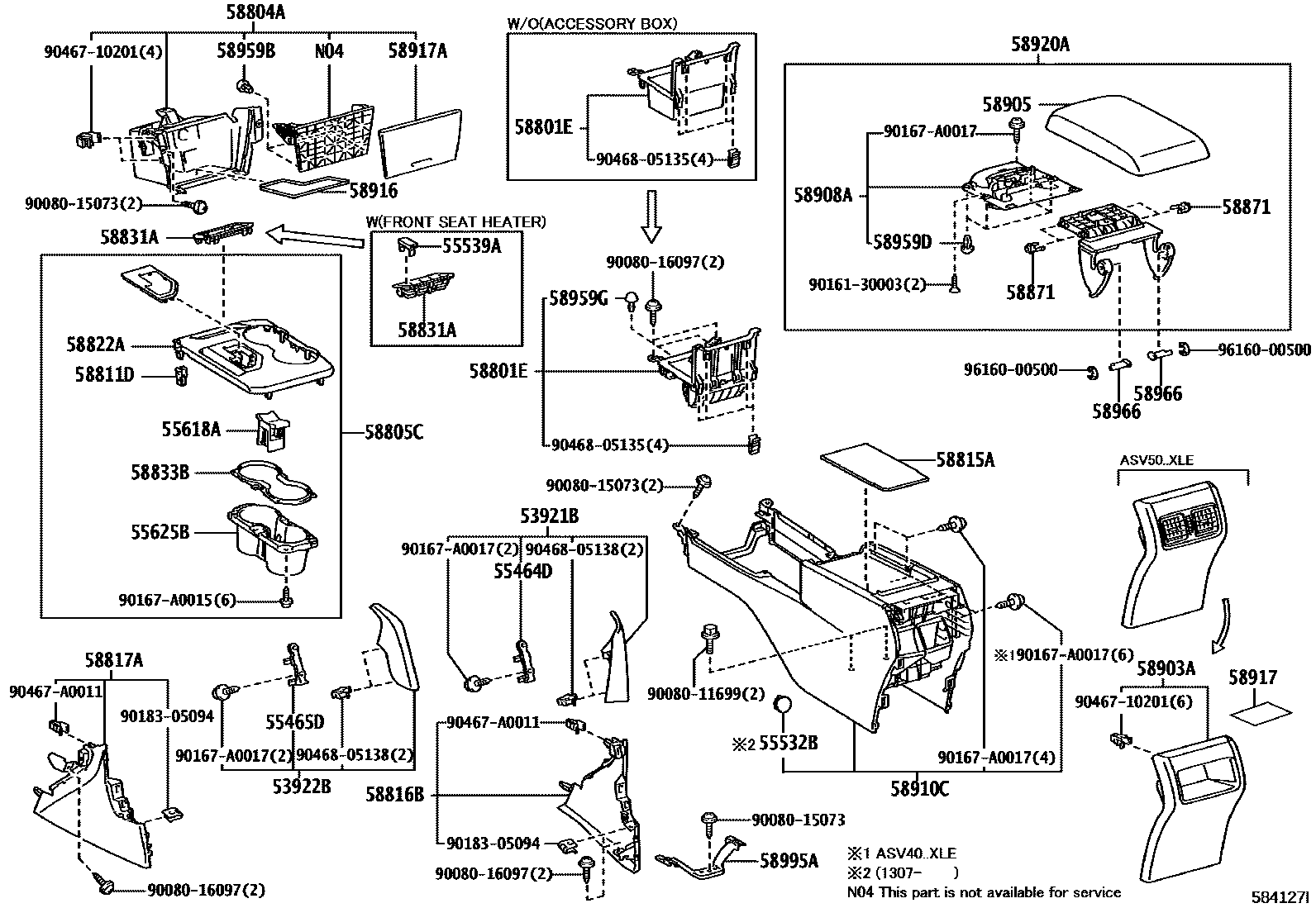

CONSOLE BOX & BRACKET
53921BGARNISH, FRONT PANEL, RH
IVORY,TRIM0#
GRAY,TRIM1#
53922BGARNISH, FRONT PANEL, LH
IVORY,TRIM0#
GRAY,TRIM1#
55464DINSERT, INSTRUMENT PANEL LOWER PAD, RH
55465DINSERT, INSTRUMENT PANEL LOWER PAD, LH
55532BCOVER, CIGAR LIGHTER HOLE
55539ACOVER, SPARE SWITCH HOLE
55618AHOLDER, CONSOLE BOX CUP
55625BTRAY, INSTRUMENT PANEL CUP HOLDER
58801EBOX SUB-ASSY, CONSOLE, UPPER
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
MEDIUM REDDISH BROWN WITH,TRIM0#,1#
BLACK,TRIM0#,1#
58811DCLIP(FOR CONSOLE BOX)
58815ACARPET, CONSOLE BOX
58816BINSERT, CONSOLE BOX
IVORY,TRIM0#
GRAY,TRIM1#
FLAXEN,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#
58817AINSERT, CONSOLE BOX, FRONT NO.2
IVORY,TRIM0#
GRAY,TRIM1#
FLAXEN,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#
58822APANEL, CONSOLE, UPPER REAR
BLACK,TRIM0#,1#
58831AGARNISH, CONSOLE UPPER PANEL, FRONT
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
58871CUSHION, CONSOLE BOX
58903APANEL SUB-ASSY, CONSOLE REAR END
IVORY,TRIM0#
GRAY,TRIM1#
IVORY,TRIM0#
FLAXEN,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#
FLAXEN,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58910CBOX ASSY, CONSOLE, REAR
IVORY,TRIM0#
GRAY,TRIM1#
IVORY,TRIM0#
GRAY,TRIM1#
FLAXEN,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#
FLAXEN,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#
58917MAT, BOX BOTTOM, NO.2
58917ACOVER, CONSOLE BOX, REAR
58920AARMREST ASSY, REAR CONSOLE
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58959DCUSHION, REAR CONSOLE BOX
58959GCUSHION, CONSOLE COMPARTMENT DOOR
58966SHAFT, BOX DOOR HINGE
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
9008011699
main90080-11699
9008015073
main90080-15073
9008016097
main90080-16097
9016130003
main90161-30003
90167A0015
main90167-A0015
90167A0017
main90167-A0017
9018305094
main90183-05094
9046710201
main90467-10201
90467A0011
main90467-A0011
9046805135
main90468-05135
9046805138
main90468-05138
9616000500
main96160-00500
44 parts on this diagram · 2 diagrams in section
