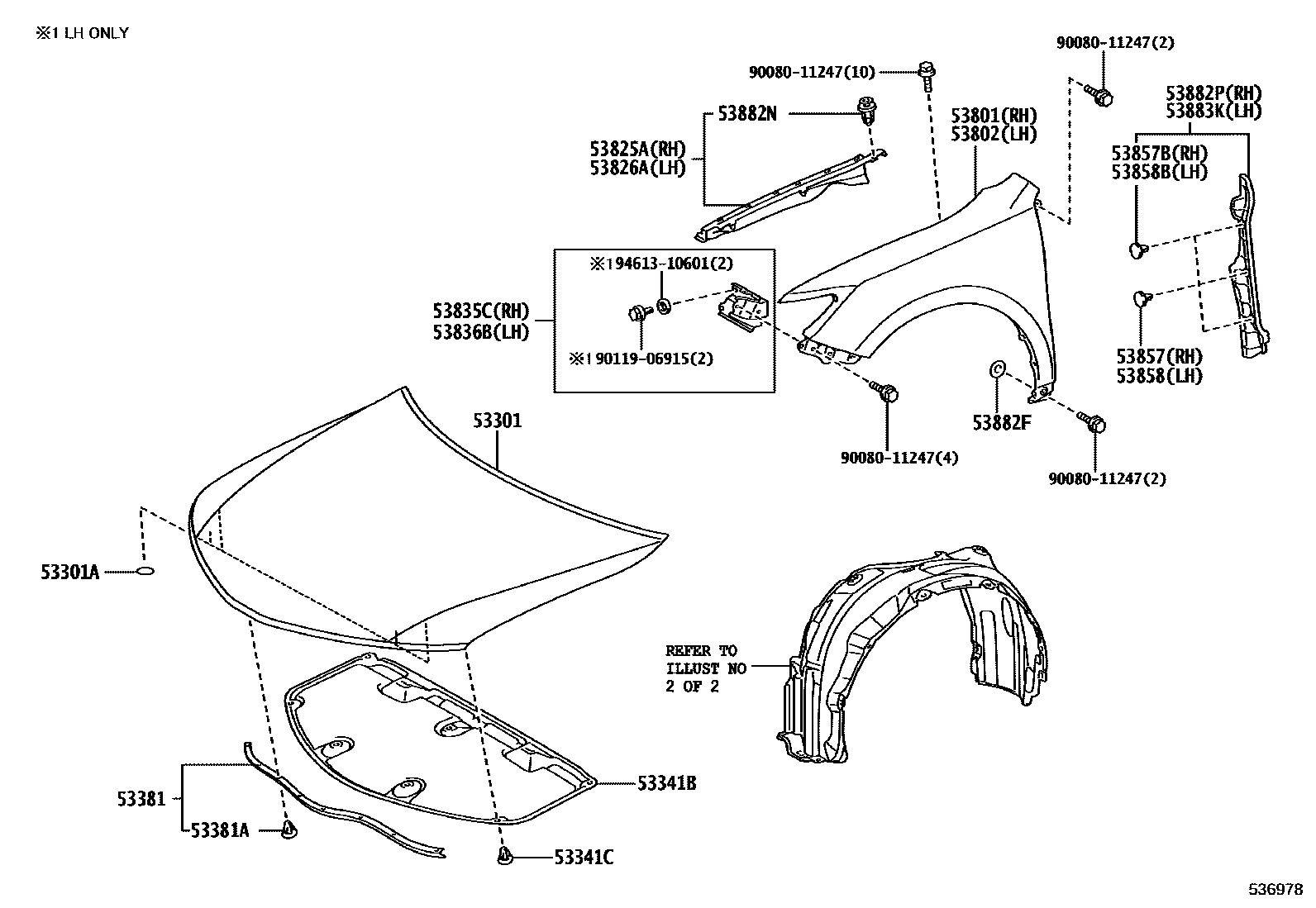

HOOD & FRONT FENDER

0001 1 0002 1 0003 1 0004 1

53301HOOD SUB-ASSY

main53301-06150iASV50201109-201409

main53301-06160iASV50201409-201606

53301APLUG, HOLE(FOR HOOD)

main90950-06124×4iASV50201109-201409

53341BINSULATOR, HOOD

main53341-06250iASV50201109-201409

main53341-06400iASV50201409

53341CCLIP(FOR HOOD INSULATOR)

main90467-A0003×7iASV50201109-201409

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-06100iASV50201109-201409

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90080-46010×8iASV50201109-201409

53801FENDER SUB-ASSY, FRONT RH

main53811-06140iASV50201109-201409

main53811-06200iASV50201409

53802FENDER SUB-ASSY, FRONT LH

main53812-06150iASV50201109-201409

main53812-06210iASV50201409

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-06070iASV50201109-201409

main53825-06130iASV50201409

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-06070iASV50201109-201409

main53826-06130iASV50201409

53835CBRACKET, FRONT SIDE PANEL, RH

main53835-06070iASV50201109-201409

main53835-06080iASV50201409

53836BBRACKET, FRONT SIDE PANEL, LH

main53804-33030iASV50201201-201409

main53836-06080iASV50201409

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iASV50201109-201409

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011×2iASV50201109-201409

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iASV50201109-201409

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011×2iASV50201109-201409

53882FSEAL, FRONT FENDER

main53882-30030×2iASV50201109-201409

main53882-33060×2iASV50201409

TYPE B:REFER ILLUST.

53882NCLIP(FOR FRONT FENDER SEAL)

main90467-A0006×6iASV50201109-201409

53882PSEAL, FRONT FENDER, RH

main53882-06100iASV50201109-201409

main53882-06150iASV50201409

53883KSEAL, FRONT FENDER, LH

main53883-06090iASV50201109-201409

main53883-06140iASV50201409

9008011247

main90080-11247

9011906915

main90119-06915

9461310601

main94613-10601

23 parts on this diagram · 4 diagrams in section
