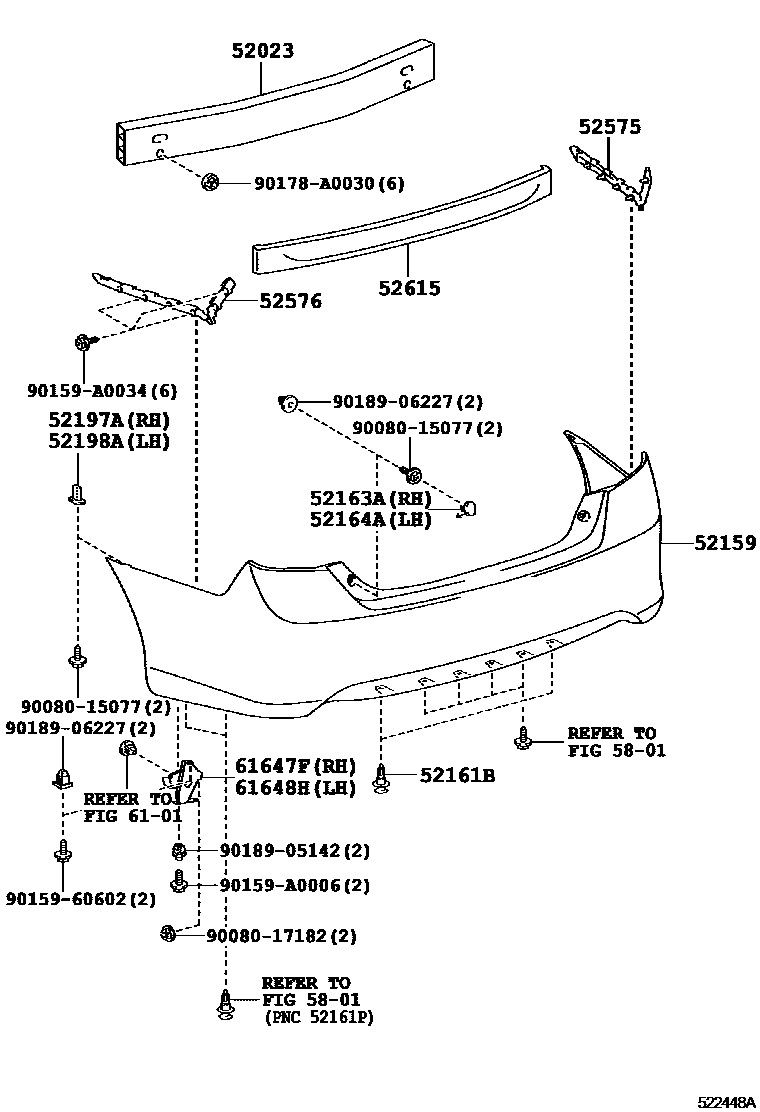

Toyota CAMRY 28A — REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52161BPIECE, REAR BUMPER
52163APLATE, REAR BUMPER, RH
52164APLATE, REAR BUMPER, LH
52197ABRACKET, REAR BUMPER SEAL, RH
52198ABRACKET, REAR BUMPER SEAL, LH
5801FLOOR PAN & LOWER BACK PANEL
6101SIDE MEMBER
61647FREINFORCEMENT, WHEEL HOUSE, RH
61648HREINFORCEMENT, WHEEL HOUSE, LH
9008015077
9008017182
9015960602
90159A0006
90159A0034
90178A0030
9018905142
9018906227
22 parts on this diagram · 2 diagrams in section
REAR BUMPER & BUMPER STAY for Toyota CAMRY 28A
This section contains 27 genuine Toyota parts for the REAR BUMPER & BUMPER STAY system of the Toyota CAMRY 28A. Key components include: REINFORCEMENT SUB-ASSY, REAR BUMPER, COVER, REAR BUMPER, PIECE, REAR BUMPER, PLATE, REAR BUMPER, RH, PLATE, REAR BUMPER, LH.
