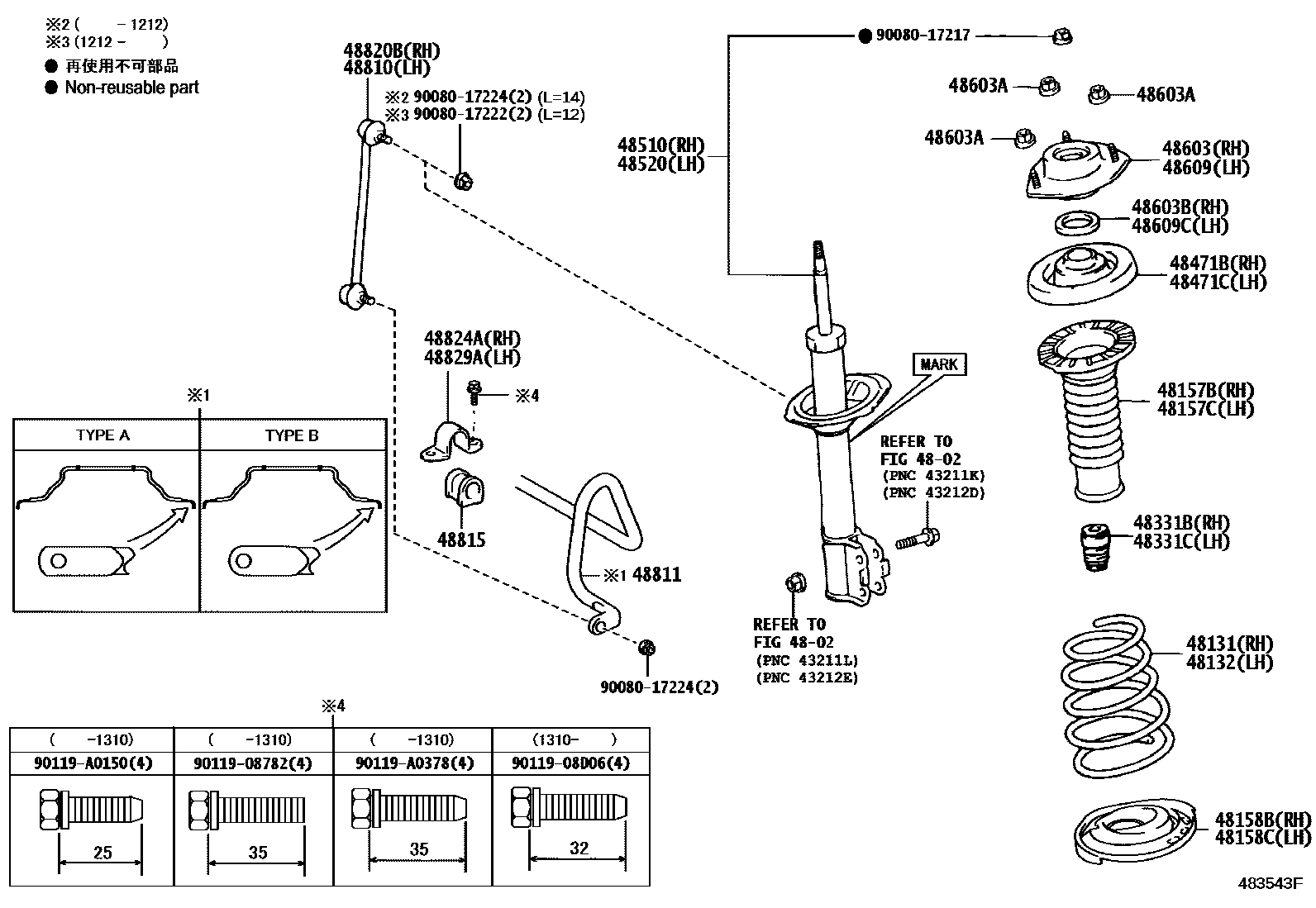

FRONT SPRING & SHOCK ABSORBER

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

48131SPRING, FRONT COIL, RH

main48131-06C50iASV50201109-201312

main48131-06C51iASV50201312-201409

main48131-06F50iASV50201409

48132SPRING, FRONT COIL, LH

main48132-06010iASV50201109-201312

main48132-06011iASV50201312-201409

main48132-06170iASV50201409

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-06082iASV50201109-201601

main48157-07020iASV50201601

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-06082iASV50201109-201601

main48157-07020iASV50201601

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-06070iASV50201109-201601

main48158-06071iASV50201601

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-06080iASV50201109-201601

main48158-06081iASV50201601

48331BBUMPER, FRONT SPRING, RH

main48331-06050iASV50201109-201409

48331CBUMPER, FRONT SPRING, LH

main48331-06050iASV50201109-201409

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-0E011iASV50201109-201409

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-0E011iASV50201109-201409

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-09871iASV50201109-201212

MARK 48510-06670

main48510-8Z075iASV50201212-201409

MARK 48510-06671

main48510-8Z151iASV50201409-201601

MARK 48510-06840

main48510-8Z249iASV50201601

MARK 48510-06841

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-09841iASV50201109-201212

MARK 48520-06660

main48520-09Z30iASV50201212-201409

MARK 48520-06661

main48520-8Z039iASV50201409-201601

MARK 48520-06840

main48520-8Z113iASV50201601

MARK 48520-06841

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-06250iASV50201109-201409

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-A0004iASV50201109-201409

48603BBEARING(FOR FRONT SUSPENSION SUPPORT RH)

main90903-63014iASV50201109-201409

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-06250iASV50201109-201409

48609CBEARING(FOR FRONT SUSPENSION SUPPORT LH)

main90903-63014iASV50201109-201409

48810LINK ASSY, FRONT STABILIZER, LH

main48820-06090iASV50201409

main48820-33040iASV50201109-201409

48811BAR, STABILIZER, FRONT

main48811-06250iASV50201109-201309

TYPE A:REFER ILLUST.

main48811-06251iASV50201310-201409

TYPE A:REFER ILLUST.

main48811-06251iASV50201409

main48811-06260iASV50201109-201305

TYPE B:REFER ILLUST.

main48811-33190iASV50201407-201409

TYPE B:REFER ILLUST.

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-06140iASV50201109-201409

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-06090iASV50201409

main48820-33040iASV50201109-201409

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-06020iASV50201109-201409

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-06020iASV50201109-201409

9008017217

main90080-17217

9008017222

main90080-17222

9008017224

main90080-17224

9011908782

main90119-08782

9011908D06

main90119-08D06

90119A0150

main90119-A0150

90119A0378

main90119-A0378

31 parts on this diagram · 1 diagram in section
