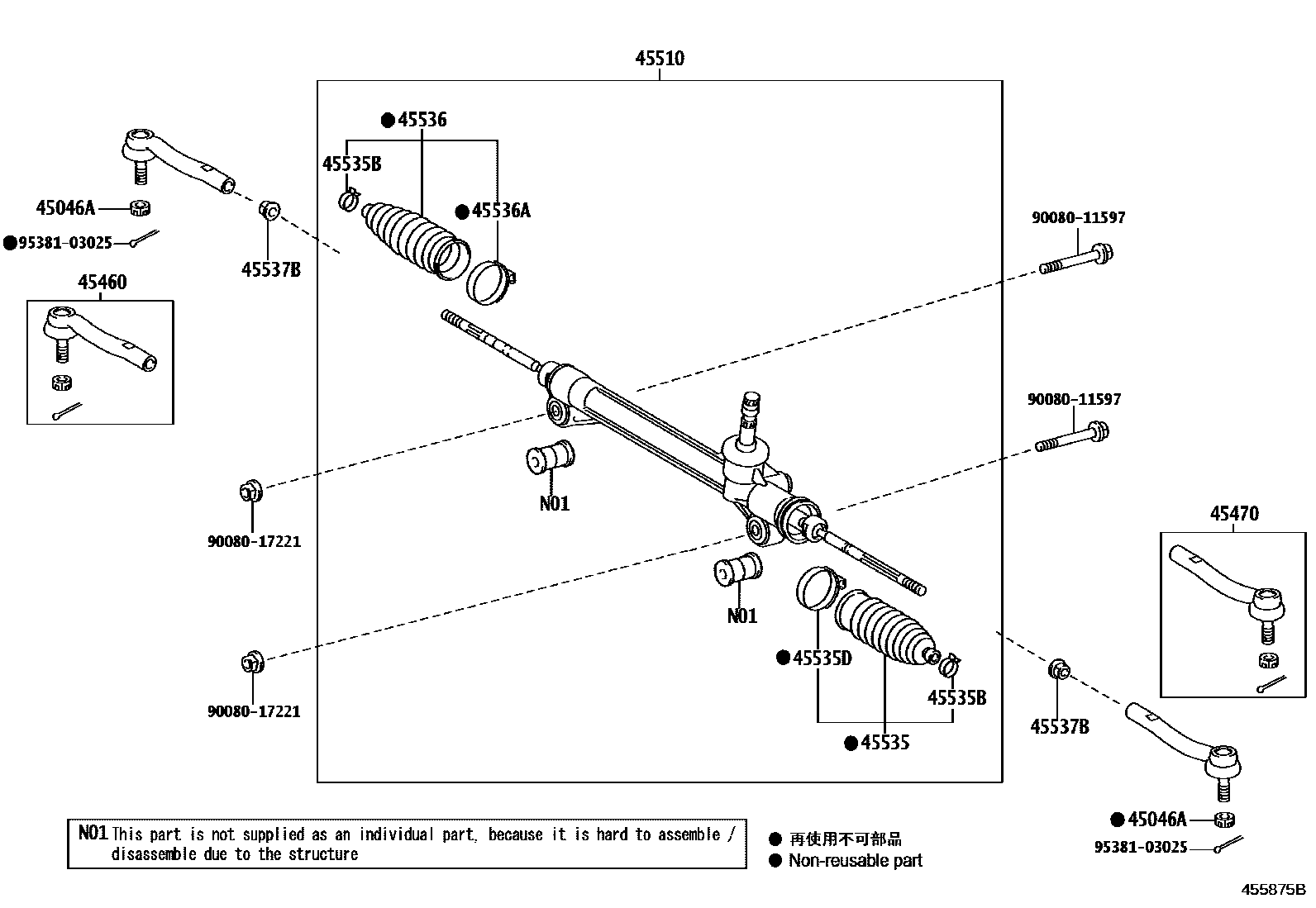

FRONT STEERING GEAR & LINK

45046ANUT, CASTLE(FOR TIE ROD END)

main90080-17220×2iASV50201109-201409

45460ROD ASSY, TIE, RH

main45460-09230iASV50201109-201409

45470ROD ASSY, TIE, LH

main45470-09140iASV50201409

45510GEAR ASSY, STEERING

main45510-06011iASV50..LE,XLE201109-201409

main45510-06031iASV50..N201109-201409

45535BOOT, STEERING RACK, NO.1

main45535-06060iASV50201109-201112

main45535-09430iASV50201409

45535BCLIP(FOR STEERING RACK BOOT)

main45537-0T010×2iASV50201109-201409

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-0T010iASV50201109-201409

45536BOOT, STEERING RACK, NO.2

main45535-06060iASV50201109-201112

main45535-09430iASV50201112-201409

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-0T010iASV50201109-201409

45537BNUT, RACK END LOCK

main90178-15003×2iASV50201109-201409

9008011597

main90080-11597

9008017221

main90080-17221

9538103025

main95381-03025

13 parts on this diagram · 1 diagram in section
