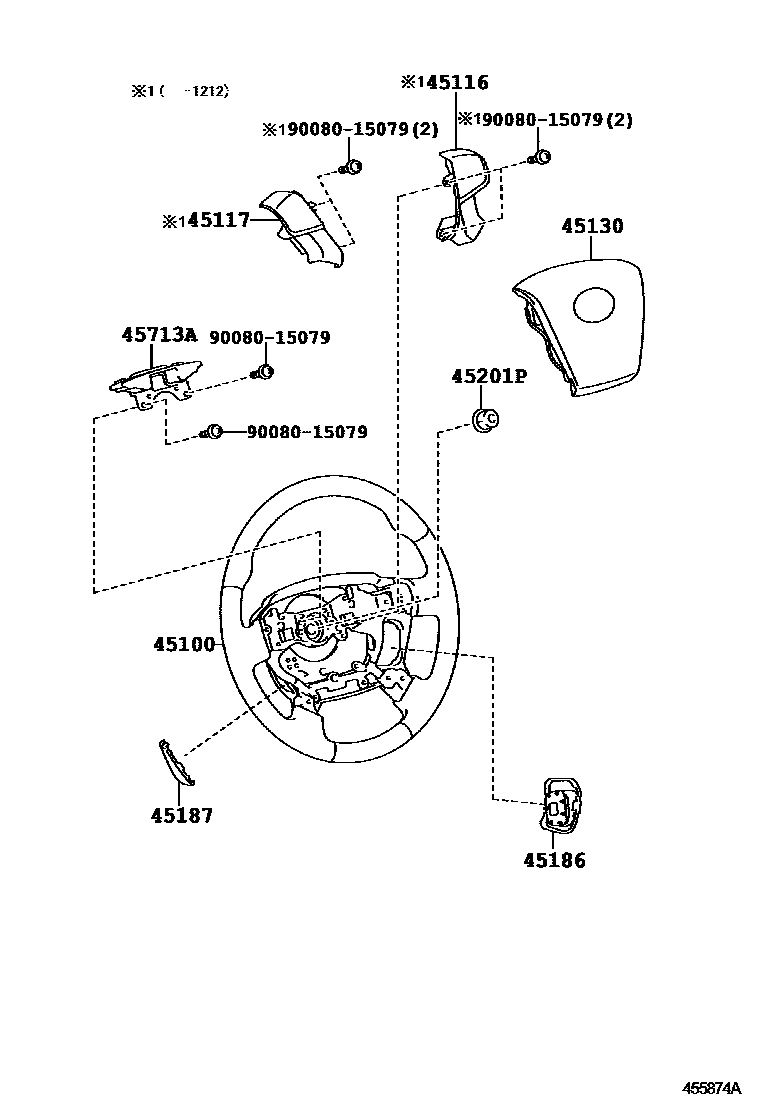

STEERING WHEEL
45100WHEEL ASSY, STEERING
4-SPOKE,URETHANE,BLACK,TRIM0#,1#
4-SPOKE,LEATHER,BLACK,TRIM0#,1#
3-SPOKE,LEATHER,BLACK,TRIM0#,1#,2#
3-SPOKE,LEATHER,BLACK,TRIM0#,1#,2#
45116ORNAMENT, STEERING WHEEL, NO.1
45117ORNAMENT, STEERING WHEEL, NO.2
45130BUTTON ASSY, HORN
BLACK,TRIM0#,1#
BLACK,TRIM0#,1#,2#
45186COVER, STEERING WHEEL, LOWER NO.2
BLACK,TRIM0#,1#
BLACK,TRIM0#,1#,2#
45187COVER, STEERING WHEEL, LOWER NO.3
BLACK,TRIM0#,1#
BLACK,TRIM0#,1#,2#
45201PNUT, STEERING WHEEL SET
45713ADAMPER, STEERING SHAKE
9008015079
main90080-15079
9 parts on this diagram · 2 diagrams in section
