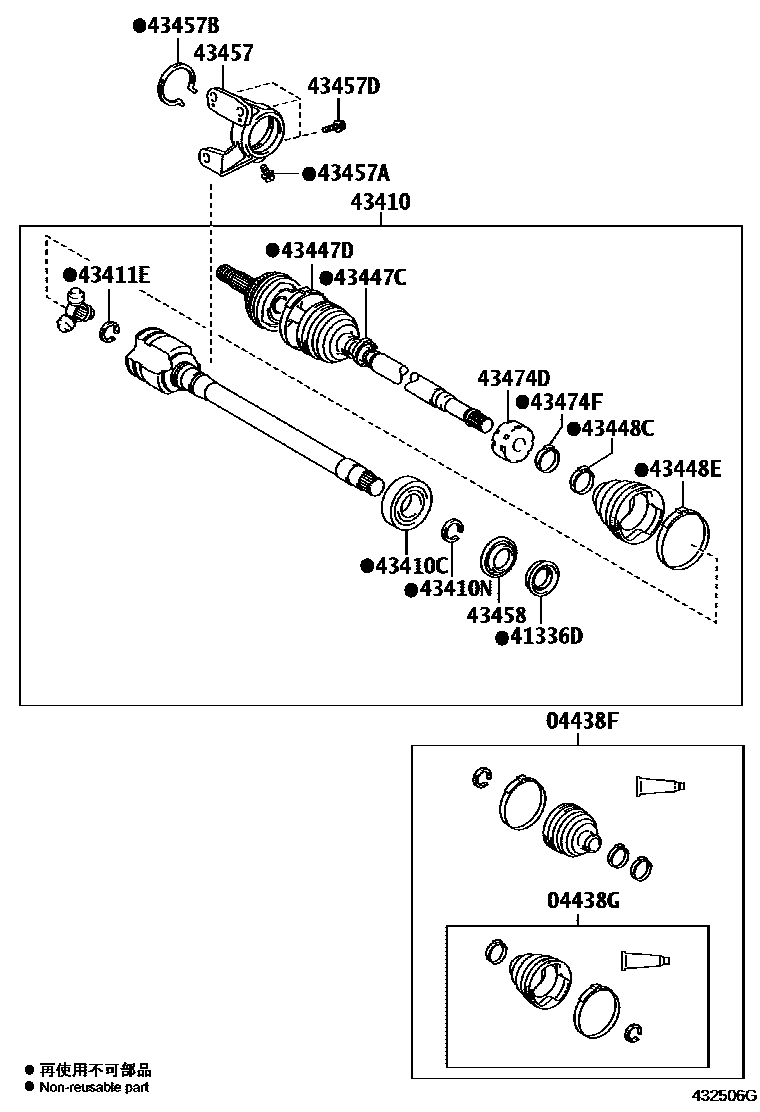

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-0R090iASV50201109-201409

sub04427-0R104

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-0R020iASV50201409-201606

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-07020iASV50201109-201409

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-06730iASV50201109-201409

main43410-06731iASV50201501-201606

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-A0004iASV50201109-201409

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-07010iASV50201109-201409

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-0R030iASV50201109-201409

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0R040iASV50201109-201409

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0R030iASV50201109-201409

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0R060iASV50201109-201409

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0R050iASV50201109-201409

43457BRACKET, DRIVE SHAFT BEARING

main43457-0T010iASV50201109-201409

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461iASV50201109-201409

*10-1.25PX19.8-8.3

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-78002iASV50201109-201409

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90080-10087×3iASV50201109-201409

43458COVER, FRONT DRIVE SHAFT DUST

main43458-07010iASV50201109-201409

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-06270iASV50201501-201606

main43474-07010iASV50201109-201409

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-07090iASV50201109-201409

18 parts on this diagram · 2 diagrams in section
