FRONT AXLE HOUSING & DIFFERENTIAL

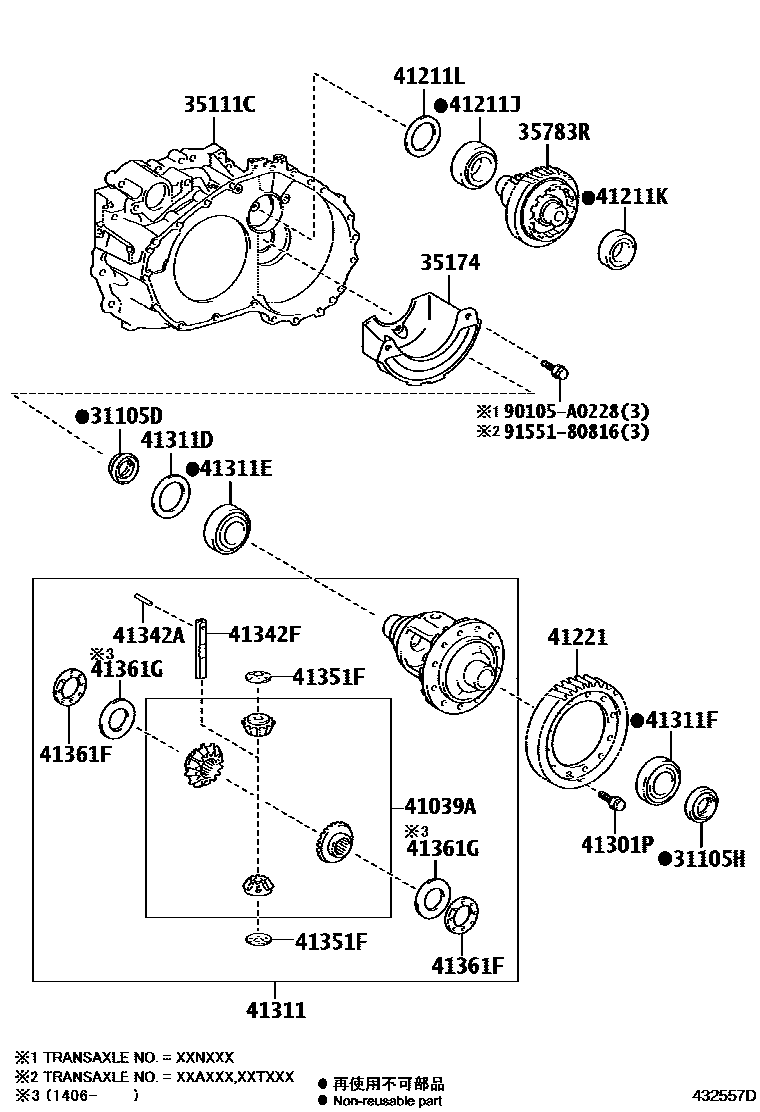

Parts diagram
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
main90311-40029i201109-201212
TRANSAXLE NO.=XXAXXX
sub90311-40038
main90311-40029i201109-201110
TRANSAXLE NO.=XXTXXX
sub90311-40038
main90311-40038i201212-201409
TRANSAXLE NO.=XXAXXX
main90311-A0012i201111-201403
TRANSAXLE NO.=XXNXXX
sub90311-A0029
main90311-A0029i201403-201409
TRANSAXLE NO.=XXNXXX
31105HSEAL, OIL, NO.2(FOR TRANSAXLE CASE)
main90311-50045i201109-201110
TRANSAXLE NO.=XXTXXX
sub90311-50064
main90311-50045i201109-201409
TRANSAXLE NO.=XXAXXX
sub90311-50064
main90311-A0011i201111-201206
TRANSAXLE NO.=XXNXXX
sub90311-A0021
main90311-A0021i201206-201409
TRANSAXLE NO.=XXNXXX
35111CHOUSING, TRANSAXLE
main35105-06060i201111-201409
TRANSAXLE NO.=XXNXXX
sub35105-33022
main35105-33020i201109-201411
TRANSAXLE NO.=XXAXXX
sub35105-33021
main35105-33021i201412-201503
TRANSAXLE NO.=XXAXXX
sub35105-33022
main35105-33022i201504
TRANSAXLE NO.=XXAXXX
main35105-73030i201109-201110
TRANSAXLE NO.=XXTXXX
sub35105-73031
35174SEPARATOR, TRANSAXLE HOUSING OIL
main35174-73010i201109-201409
35783RGEAR, COUNTER DRIVEN
main35705-06010i201111-201409
TRANSAXLE NO.=XXNXXX
sub35705-33060
main35705-33050i201109-201110
TRANSAXLE NO.=XXTXXX
sub35705-33060
main35705-33060i201109-201409
TRANSAXLE NO.=XXAXXX
41039AGEAR KIT, DIFFERENTIAL
main41039-28020i201109-201110
TRANSAXLE NO.=XXTXXX
sub41039-28030
main41039-28020i201109-201406
TRANSAXLE NO.=XXAXXX
sub41039-28030
main41039-28020i201111-201407
TRANSAXLE NO.=XXNXXX
sub41039-28030
main41039-28030i201407-201409
TRANSAXLE NO.=XXNXXX
main41039-28030i201406-201409
TRANSAXLE NO.=XXAXXX
main41039-28030i201409
41211JBEARING, TAPERED ROLLER (FOR DIFFERENTIAL DRIVE PINION RH)
main90366-35167i201204-201409
(J)
main90366-35167i201109-201409
TRANSAXLE NO.=XXAXXX
main90366-35167i201109-201110
TRANSAXLE NO.=XXTXXX
main90366-35167i201409
AXLE NO.=XXNXXX,(J),TRANSAXLE NO.=XXAXXX
main90366-A0050i201111-201204
TRANSAXLE NO.=XXNXXX
main90366-A0050i201204-201409
(L)
main90366-A0050i201409
AXLE NO.=XXNXXX,(L)
41211KBEARING, TAPERED ROLLER (FOR DIFFERENTIAL DRIVE PINION LH)
main90366-32034i201204-201409
(J)
main90366-32034i201109-201110
TRANSAXLE NO.=XXTXXX
main90366-32034i201109-201409
TRANSAXLE NO.=XXAXXX
main90366-32034i201409
AXLE NO.=XXNXXX,(J),TRANSAXLE NO.=XXAXXX
main90366-A0047i201111-201204
TRANSAXLE NO.=XXNXXX
main90366-A0047i201204-201409
(L)
main90366-A0047i201409
AXLE NO.=XXNXXX,(L)
41211LSHIM (FOR DIFFERENTIAL DRIVE PINION)
main90564-61022i201109-201409
T=2.000,TRANSAXLE NO.=XXAXXX
main90564-61022i201109-201110
T=2.000,TRANSAXLE NO.=XXTXXX
main90564-61023i201109-201409
T=2.025,TRANSAXLE NO.=XXAXXX
main90564-61023i201109-201110
T=2.025,TRANSAXLE NO.=XXTXXX
main90564-61024i201109-201409
T=2.050,TRANSAXLE NO.=XXAXXX
main90564-61024i201109-201110
T=2.050,TRANSAXLE NO.=XXTXXX
main90564-61025i201109-201409
T=2.075,TRANSAXLE NO.=XXAXXX
main90564-61025i201109-201110
T=2.075,TRANSAXLE NO.=XXTXXX
main90564-61026i201109-201409
T=2.100,TRANSAXLE NO.=XXAXXX
main90564-61026i201109-201110
T=2.100,TRANSAXLE NO.=XXTXXX
main90564-61027i201109-201110
T=2.125,TRANSAXLE NO.=XXTXXX
main90564-61027i201109-201409
T=2.125,TRANSAXLE NO.=XXAXXX
main90564-61028i201109-201110
T=2.150,TRANSAXLE NO.=XXTXXX
main90564-61028i201109-201409
T=2.150,TRANSAXLE NO.=XXAXXX
main90564-61029i201109-201110
T=2.175,TRANSAXLE NO.=XXTXXX
main90564-61029i201109-201409
T=2.175,TRANSAXLE NO.=XXAXXX
main90564-61030i201109-201110
T=2.200,TRANSAXLE NO.=XXTXXX
main90564-61030i201109-201409
T=2.200,TRANSAXLE NO.=XXAXXX
main90564-61031i201109-201409
T=2.225,TRANSAXLE NO.=XXAXXX
main90564-61031i201109-201110
T=2.225,TRANSAXLE NO.=XXTXXX
main90564-61032i201109-201409
T=2.250,TRANSAXLE NO.=XXAXXX
main90564-61032i201109-201110
T=2.250,TRANSAXLE NO.=XXTXXX
main90564-61033i201109-201409
T=2.275,TRANSAXLE NO.=XXAXXX
main90564-61033i201109-201110
T=2.275,TRANSAXLE NO.=XXTXXX
main90564-61034i201109-201110
T=2.300,TRANSAXLE NO.=XXTXXX
main90564-61034i201109-201409
T=2.300,TRANSAXLE NO.=XXAXXX
main90564-61035i201109-201110
T=2.325,TRANSAXLE NO.=XXTXXX
main90564-61035i201109-201409
T=2.325,TRANSAXLE NO.=XXAXXX
main90564-61036i201109-201409
T=2.350,TRANSAXLE NO.=XXAXXX
main90564-61036i201109-201110
T=2.350,TRANSAXLE NO.=XXTXXX
main90564-61037i201109-201110
T=2.375,TRANSAXLE NO.=XXTXXX
main90564-61037i201109-201409
T=2.375,TRANSAXLE NO.=XXAXXX
main90564-61038i201109-201409
T=2.400,TRANSAXLE NO.=XXAXXX
main90564-61038i201109-201110
T=2.400,TRANSAXLE NO.=XXTXXX
main90564-61039i201109-201409
T=2.425,TRANSAXLE NO.=XXAXXX
main90564-61039i201109-201110
T=2.425,TRANSAXLE NO.=XXTXXX
main90564-61040i201109-201409
T=2.450,TRANSAXLE NO.=XXAXXX
main90564-61040i201109-201110
T=2.450,TRANSAXLE NO.=XXTXXX
main90564-61041i201109-201409
T=2.475,TRANSAXLE NO.=XXAXXX
main90564-61041i201109-201110
T=2.475,TRANSAXLE NO.=XXTXXX
main90564-61042i201109-201409
T=2.500,TRANSAXLE NO.=XXAXXX
main90564-61042i201109-201110
T=2.500,TRANSAXLE NO.=XXTXXX
main90564-61043i201109-201409
T=2.525,TRANSAXLE NO.=XXAXXX
main90564-61043i201109-201110
T=2.525,TRANSAXLE NO.=XXTXXX
main90564-61044i201109-201409
T=2.550,TRANSAXLE NO.=XXAXXX
main90564-61044i201109-201110
T=2.550,TRANSAXLE NO.=XXTXXX
main90564-61045i201109-201110
T=2.575,TRANSAXLE NO.=XXTXXX
main90564-61045i201109-201409
T=2.575,TRANSAXLE NO.=XXAXXX
main90564-61046i201109-201409
T=2.600,TRANSAXLE NO.=XXAXXX
main90564-61046i201109-201110
T=2.600,TRANSAXLE NO.=XXTXXX
main90564-61047i201109-201409
T=2.625,TRANSAXLE NO.=XXAXXX
main90564-61047i201109-201110
T=2.625,TRANSAXLE NO.=XXTXXX
main90564-61048i201109-201110
T=2.650,TRANSAXLE NO.=XXTXXX
main90564-61048i201109-201409
T=2.650,TRANSAXLE NO.=XXAXXX
main90564-61049i201109-201409
T=2.675,TRANSAXLE NO.=XXAXXX
main90564-61049i201109-201110
T=2.675,TRANSAXLE NO.=XXTXXX
main90564-61050i201109-201409
T=2.700,TRANSAXLE NO.=XXAXXX
main90564-61050i201109-201110
T=2.700,TRANSAXLE NO.=XXTXXX
main90564-61051i201109-201409
T=2.725,TRANSAXLE NO.=XXAXXX
main90564-61051i201109-201110
T=2.725,TRANSAXLE NO.=XXTXXX
main90564-61052i201109-201409
T=2.750,TRANSAXLE NO.=XXAXXX
main90564-61052i201109-201110
T=2.750,TRANSAXLE NO.=XXTXXX
main90564-61053i201109-201409
T=2.775,TRANSAXLE NO.=XXAXXX
main90564-61053i201109-201110
T=2.775,TRANSAXLE NO.=XXTXXX
main90564-61054i201109-201409
T=2.800,TRANSAXLE NO.=XXAXXX
main90564-61054i201109-201110
T=2.800,TRANSAXLE NO.=XXTXXX
main90564-61055i201109-201110
T=2.825,TRANSAXLE NO.=XXTXXX
main90564-61055i201109-201409
T=2.825,TRANSAXLE NO.=XXAXXX
main90564-61056i201109-201409
T=2.850,TRANSAXLE NO.=XXAXXX
main90564-61056i201109-201110
T=2.850,TRANSAXLE NO.=XXTXXX
main90564-61057i201109-201409
T=2.875,TRANSAXLE NO.=XXAXXX
main90564-61057i201109-201110
T=2.875,TRANSAXLE NO.=XXTXXX
main90564-61058i201109-201110
T=2.900,TRANSAXLE NO.=XXTXXX
main90564-61058i201109-201409
T=2.900,TRANSAXLE NO.=XXAXXX
main90564-61059i201109-201110
T=2.925,TRANSAXLE NO.=XXTXXX
main90564-61059i201109-201409
T=2.925,TRANSAXLE NO.=XXAXXX
main90564-61060i201109-201409
T=2.950,TRANSAXLE NO.=XXAXXX
main90564-61060i201109-201110
T=2.950,TRANSAXLE NO.=XXTXXX
main90564-61061i201109-201409
T=2.975,TRANSAXLE NO.=XXAXXX
main90564-61061i201109-201110
T=2.975,TRANSAXLE NO.=XXTXXX
main90564-61062i201109-201409
T=3.000,TRANSAXLE NO.=XXAXXX
main90564-61062i201109-201110
T=3.000,TRANSAXLE NO.=XXTXXX
main90564-A0219i201111-201409
T=2.000,TRANSAXLE NO.=XXNXXX
main90564-A0220i201111-201409
T=2.025,TRANSAXLE NO.=XXNXXX
main90564-A0221i201111-201409
T=2.050,TRANSAXLE NO.=XXNXXX
main90564-A0222i201111-201409
T=2.075,TRANSAXLE NO.=XXNXXX
main90564-A0223i201111-201409
T=2.100,TRANSAXLE NO.=XXNXXX
main90564-A0224i201111-201409
T=2.125,TRANSAXLE NO.=XXNXXX
main90564-A0225i201111-201409
T=2.150,TRANSAXLE NO.=XXNXXX
main90564-A0226i201111-201409
T=2.175,TRANSAXLE NO.=XXNXXX
main90564-A0227i201111-201409
T=2.200,TRANSAXLE NO.=XXNXXX
main90564-A0228i201111-201409
T=2.225,TRANSAXLE NO.=XXNXXX
main90564-A0229i201111-201409
T=2.250,TRANSAXLE NO.=XXNXXX
main90564-A0230i201111-201409
T=2.275,TRANSAXLE NO.=XXNXXX
main90564-A0231i201111-201409
T=2.300,TRANSAXLE NO.=XXNXXX
main90564-A0232i201111-201409
T=2.325,TRANSAXLE NO.=XXNXXX
main90564-A0233i201111-201409
T=2.350,TRANSAXLE NO.=XXNXXX
main90564-A0234i201111-201409
T=2.375,TRANSAXLE NO.=XXNXXX
main90564-A0235i201111-201409
T=2.400,TRANSAXLE NO.=XXNXXX
main90564-A0236i201111-201409
T=2.425,TRANSAXLE NO.=XXNXXX
main90564-A0237i201111-201409
T=2.450,TRANSAXLE NO.=XXNXXX
main90564-A0238i201111-201409
T=2.475,TRANSAXLE NO.=XXNXXX
main90564-A0239i201111-201409
T=2.500,TRANSAXLE NO.=XXNXXX
main90564-A0240i201111-201409
T=2.525,TRANSAXLE NO.=XXNXXX
main90564-A0241i201111-201409
T=2.550,TRANSAXLE NO.=XXNXXX
main90564-A0242i201111-201409
T=2.575,TRANSAXLE NO.=XXNXXX
main90564-A0243i201111-201409
T=2.600,TRANSAXLE NO.=XXNXXX
main90564-A0244i201111-201409
T=2.625,TRANSAXLE NO.=XXNXXX
main90564-A0245i201111-201409
T=2.650,TRANSAXLE NO.=XXNXXX
main90564-A0246i201111-201409
T=2.675,TRANSAXLE NO.=XXNXXX
main90564-A0247i201111-201409
T=2.700,TRANSAXLE NO.=XXNXXX
main90564-A0248i201111-201409
T=2.725,TRANSAXLE NO.=XXNXXX
main90564-A0249i201111-201409
T=2.750,TRANSAXLE NO.=XXNXXX
main90564-A0250i201111-201409
T=2.775,TRANSAXLE NO.=XXNXXX
main90564-A0251i201111-201409
T=2.800,TRANSAXLE NO.=XXNXXX
main90564-A0252i201111-201409
T=2.825,TRANSAXLE NO.=XXNXXX
main90564-A0253i201111-201409
T=2.850,TRANSAXLE NO.=XXNXXX
main90564-A0254i201111-201409
T=2.875,TRANSAXLE NO.=XXNXXX
main90564-A0255i201111-201409
T=2.900,TRANSAXLE NO.=XXNXXX
main90564-A0256i201111-201409
T=2.925,TRANSAXLE NO.=XXNXXX
main90564-A0257i201111-201409
T=2.950,TRANSAXLE NO.=XXNXXX
main90564-A0258i201111-201409
T=2.975,TRANSAXLE NO.=XXNXXX
main90564-A0259i201111-201409
T=3.000,TRANSAXLE NO.=XXNXXX
41221GEAR, FRONT DIFFERENTIAL RING
main41221-33200i201109-201110
TRANSAXLE NO.=XXTXXX
sub41221-33210
main41221-33210i201109-201409
TRANSAXLE NO.=XXAXXX
main41221-33210i201111-201409
TRANSAXLE NO.=XXNXXX
main41221-33210i201409
TRANSAXLE NO.=XXNXXX,TRANSAXLE NO.=XXAXXX
41301PSCREW(FOR FRONT DIFFERENTIAL CASE)
main90080-10239i201111-201409
TRANSAXLE NO.=XXNXXX
main90105-12303i201109-201409
TRANSAXLE NO.=XXAXXX
main90105-12303i201109-201110
TRANSAXLE NO.=XXTXXX
41311CASE, FRONT DIFFERENTIAL
main41301-06010i201111-201406
TRANSAXLE NO.=XXNXXX
sub41301-06011
main41301-06011i201407-201409
TRANSAXLE NO.=XXNXXX
sub41301-33101
main41301-33100i201109-201405
TRANSAXLE NO.=XXAXXX
sub41301-33101
main41301-33101i201406-201409
TRANSAXLE NO.=XXAXXX
main41301-73010i201109-201110
TRANSAXLE NO.=XXTXXX
sub41301-73011
41311DSHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
main90564-69001i201109-201110
T=2.000,TRANSAXLE NO.=XXTXXX
main90564-69001i201109-201409
T=2.000,TRANSAXLE NO.=XXAXXX
main90564-69002i201109-201409
T=2.025,TRANSAXLE NO.=XXAXXX
main90564-69002i201109-201110
T=2.025,TRANSAXLE NO.=XXTXXX
main90564-69003i201109-201409
T=2.050,TRANSAXLE NO.=XXAXXX
main90564-69003i201109-201110
T=2.050,TRANSAXLE NO.=XXTXXX
main90564-69004i201109-201110
T=2.075,TRANSAXLE NO.=XXTXXX
main90564-69004i201109-201409
T=2.075,TRANSAXLE NO.=XXAXXX
main90564-69005i201109-201110
T=2.100,TRANSAXLE NO.=XXTXXX
main90564-69005i201109-201409
T=2.100,TRANSAXLE NO.=XXAXXX
main90564-69006i201109-201409
T=2.125,TRANSAXLE NO.=XXAXXX
main90564-69006i201109-201110
T=2.125,TRANSAXLE NO.=XXTXXX
main90564-69007i201109-201110
T=2.150,TRANSAXLE NO.=XXTXXX
main90564-69007i201109-201409
T=2.150,TRANSAXLE NO.=XXAXXX
main90564-69008i201109-201110
T=2.175,TRANSAXLE NO.=XXTXXX
main90564-69008i201109-201409
T=2.175,TRANSAXLE NO.=XXAXXX
main90564-69009i201109-201409
T=2.200,TRANSAXLE NO.=XXAXXX
main90564-69009i201109-201110
T=2.200,TRANSAXLE NO.=XXTXXX
main90564-69010i201109-201110
T=2.225,TRANSAXLE NO.=XXTXXX
main90564-69010i201109-201409
T=2.225,TRANSAXLE NO.=XXAXXX
main90564-69011i201109-201409
T=2.250,TRANSAXLE NO.=XXAXXX
main90564-69011i201109-201110
T=2.250,TRANSAXLE NO.=XXTXXX
main90564-69012i201109-201110
T=2.275,TRANSAXLE NO.=XXTXXX
main90564-69012i201109-201409
T=2.275,TRANSAXLE NO.=XXAXXX
main90564-69013i201109-201409
T=2.300,TRANSAXLE NO.=XXAXXX
main90564-69013i201109-201110
T=2.300,TRANSAXLE NO.=XXTXXX
main90564-69014i201109-201110
T=2.325,TRANSAXLE NO.=XXTXXX
main90564-69014i201109-201409
T=2.325,TRANSAXLE NO.=XXAXXX
main90564-69015i201109-201409
T=2.350,TRANSAXLE NO.=XXAXXX
main90564-69015i201109-201110
T=2.350,TRANSAXLE NO.=XXTXXX
main90564-69016i201109-201409
T=2.375,TRANSAXLE NO.=XXAXXX
main90564-69016i201109-201110
T=2.375,TRANSAXLE NO.=XXTXXX
main90564-69017i201109-201409
T=2.400,TRANSAXLE NO.=XXAXXX
main90564-69017i201109-201110
T=2.400,TRANSAXLE NO.=XXTXXX
main90564-69020i201109-201110
T=2.425,TRANSAXLE NO.=XXTXXX
main90564-69020i201109-201409
T=2.425,TRANSAXLE NO.=XXAXXX
main90564-69021i201109-201409
T=2.450,TRANSAXLE NO.=XXAXXX
main90564-69021i201109-201110
T=2.450,TRANSAXLE NO.=XXTXXX
main90564-69022i201109-201110
T=2.475,TRANSAXLE NO.=XXTXXX
main90564-69022i201109-201409
T=2.475,TRANSAXLE NO.=XXAXXX
main90564-69023i201109-201110
T=2.500,TRANSAXLE NO.=XXTXXX
main90564-69023i201109-201409
T=2.500,TRANSAXLE NO.=XXAXXX
main90564-69024i201109-201409
T=2.525,TRANSAXLE NO.=XXAXXX
main90564-69024i201109-201110
T=2.525,TRANSAXLE NO.=XXTXXX
main90564-69025i201109-201409
T=2.550,TRANSAXLE NO.=XXAXXX
main90564-69025i201109-201110
T=2.550,TRANSAXLE NO.=XXTXXX
main90564-69026i201109-201409
T=2.575,TRANSAXLE NO.=XXAXXX
main90564-69026i201109-201110
T=2.575,TRANSAXLE NO.=XXTXXX
main90564-69027i201109-201409
T=2.600,TRANSAXLE NO.=XXAXXX
main90564-69027i201109-201110
T=2.600,TRANSAXLE NO.=XXTXXX
main90564-69028i201109-201409
T=2.625,TRANSAXLE NO.=XXAXXX
main90564-69028i201109-201110
T=2.625,TRANSAXLE NO.=XXTXXX
main90564-69029i201109-201110
T=2.650,TRANSAXLE NO.=XXTXXX
main90564-69029i201109-201409
T=2.650,TRANSAXLE NO.=XXAXXX
main90564-69030i201109-201409
T=2.675,TRANSAXLE NO.=XXAXXX
main90564-69030i201109-201110
T=2.675,TRANSAXLE NO.=XXTXXX
main90564-69031i201109-201409
T=2.700,TRANSAXLE NO.=XXAXXX
main90564-69031i201109-201110
T=2.700,TRANSAXLE NO.=XXTXXX
main90564-69032i201109-201409
T=2.725,TRANSAXLE NO.=XXAXXX
main90564-69032i201109-201110
T=2.725,TRANSAXLE NO.=XXTXXX
main90564-69033i201109-201110
T=2.750,TRANSAXLE NO.=XXTXXX
main90564-69033i201109-201409
T=2.750,TRANSAXLE NO.=XXAXXX
main90564-69034i201109-201409
T=2.775,TRANSAXLE NO.=XXAXXX
main90564-69034i201109-201110
T=2.775,TRANSAXLE NO.=XXTXXX
main90564-69035i201109-201110
T=2.800,TRANSAXLE NO.=XXTXXX
main90564-69035i201109-201409
T=2.800,TRANSAXLE NO.=XXAXXX
main90564-69036i201109-201110
T=2.825,TRANSAXLE NO.=XXTXXX
main90564-69036i201109-201409
T=2.825,TRANSAXLE NO.=XXAXXX
main90564-69037i201109-201110
T=2.850,TRANSAXLE NO.=XXTXXX
main90564-69037i201109-201409
T=2.850,TRANSAXLE NO.=XXAXXX
main90564-69038i201109-201409
T=2.875,TRANSAXLE NO.=XXAXXX
main90564-69038i201109-201110
T=2.875,TRANSAXLE NO.=XXTXXX
main90564-A0260i201111-201409
T=2.000,TRANSAXLE NO.=XXNXXX
main90564-A0261i201111-201409
T=2.025,TRANSAXLE NO.=XXNXXX
main90564-A0262i201111-201409
T=2.050,TRANSAXLE NO.=XXNXXX
main90564-A0263i201111-201409
T=2.075,TRANSAXLE NO.=XXNXXX
main90564-A0264i201111-201409
T=2.100,TRANSAXLE NO.=XXNXXX
main90564-A0265i201111-201409
T=2.125,TRANSAXLE NO.=XXNXXX
main90564-A0266i201111-201409
T=2.150,TRANSAXLE NO.=XXNXXX
main90564-A0267i201111-201409
T=2.175,TRANSAXLE NO.=XXNXXX
main90564-A0268i201111-201409
T=2.200,TRANSAXLE NO.=XXNXXX
main90564-A0269i201111-201409
T=2.225,TRANSAXLE NO.=XXNXXX
main90564-A0270i201111-201409
T=2.250,TRANSAXLE NO.=XXNXXX
main90564-A0271i201111-201409
T=2.275,TRANSAXLE NO.=XXNXXX
main90564-A0272i201111-201409
T=2.300,TRANSAXLE NO.=XXNXXX
main90564-A0273i201111-201409
T=2.325,TRANSAXLE NO.=XXNXXX
main90564-A0274i201111-201409
T=2.350,TRANSAXLE NO.=XXNXXX
main90564-A0275i201111-201409
T=2.375,TRANSAXLE NO.=XXNXXX
main90564-A0276i201111-201409
T=2.400,TRANSAXLE NO.=XXNXXX
main90564-A0277i201111-201409
T=2.425,TRANSAXLE NO.=XXNXXX
main90564-A0278i201111-201409
T=2.450,TRANSAXLE NO.=XXNXXX
main90564-A0279i201111-201409
T=2.475,TRANSAXLE NO.=XXNXXX
main90564-A0280i201111-201409
T=2.500,TRANSAXLE NO.=XXNXXX
main90564-A0281i201111-201409
T=2.525,TRANSAXLE NO.=XXNXXX
main90564-A0282i201111-201409
T=2.550,TRANSAXLE NO.=XXNXXX
main90564-A0283i201111-201409
T=2.575,TRANSAXLE NO.=XXNXXX
main90564-A0284i201111-201409
T=2.600,TRANSAXLE NO.=XXNXXX
main90564-A0285i201111-201409
T=2.625,TRANSAXLE NO.=XXNXXX
main90564-A0286i201111-201409
T=2.650,TRANSAXLE NO.=XXNXXX
main90564-A0287i201111-201409
T=2.675,TRANSAXLE NO.=XXNXXX
main90564-A0288i201111-201409
T=2.700,TRANSAXLE NO.=XXNXXX
main90564-A0289i201111-201409
T=2.725,TRANSAXLE NO.=XXNXXX
main90564-A0290i201111-201409
T=2.750,TRANSAXLE NO.=XXNXXX
main90564-A0291i201111-201409
T=2.775,TRANSAXLE NO.=XXNXXX
main90564-A0292i201111-201409
T=2.800,TRANSAXLE NO.=XXNXXX
main90564-A0293i201111-201409
T=2.825,TRANSAXLE NO.=XXNXXX
main90564-A0294i201111-201409
T=2.850,TRANSAXLE NO.=XXNXXX
main90564-A0295i201111-201409
T=2.875,TRANSAXLE NO.=XXNXXX
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
main90366-50118i201111-201210
TRANSAXLE NO.=XXNXXX
main90366-50118i201109-201110
TRANSAXLE NO.=XXTXXX
main90366-50118i201109-201409
TRANSAXLE NO.=XXAXXX
main90366-50118i201409
main90366-A0056i201210-201409
TRANSAXLE NO.=XXNXXX
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
main90366-55071i201109-201409
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
main90250-06058i201109-201409
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
main41342-33060i201109-201405
TRANSAXLE NO.=XXAXXX
sub41342-33061
main41342-33060i201111-201406
TRANSAXLE NO.=XXNXXX
sub41342-33061
main41342-33061i201409
TRANSAXLE NO.=XXNXXX,TRANSAXLE NO.=XXAXXX
main41342-33061i201406-201409
TRANSAXLE NO.=XXAXXX
main41342-33061i201407-201409
TRANSAXLE NO.=XXNXXX
main41342-73010i201109-201110
TRANSAXLE NO.=XXTXXX
sub41342-73011
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
main41351-73010i201109-201409
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
main41361-73010i201109-201409
T=1.00
sub41361-33360
main41361-73020i201109-201409
T=1.10
sub41361-33380
main41361-73030i201109-201409
T=1.20
sub41361-33400
main41361-73050i201109-201409
T=0.90
sub41361-33340
41361GWASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEAR)
main90208-40003i201406-201409
90105A0228
main90105-A0228
9155180816
main91551-80816

22 parts on this diagram · 1 diagram in section

FRONT AXLE HOUSING & DIFFERENTIAL — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
