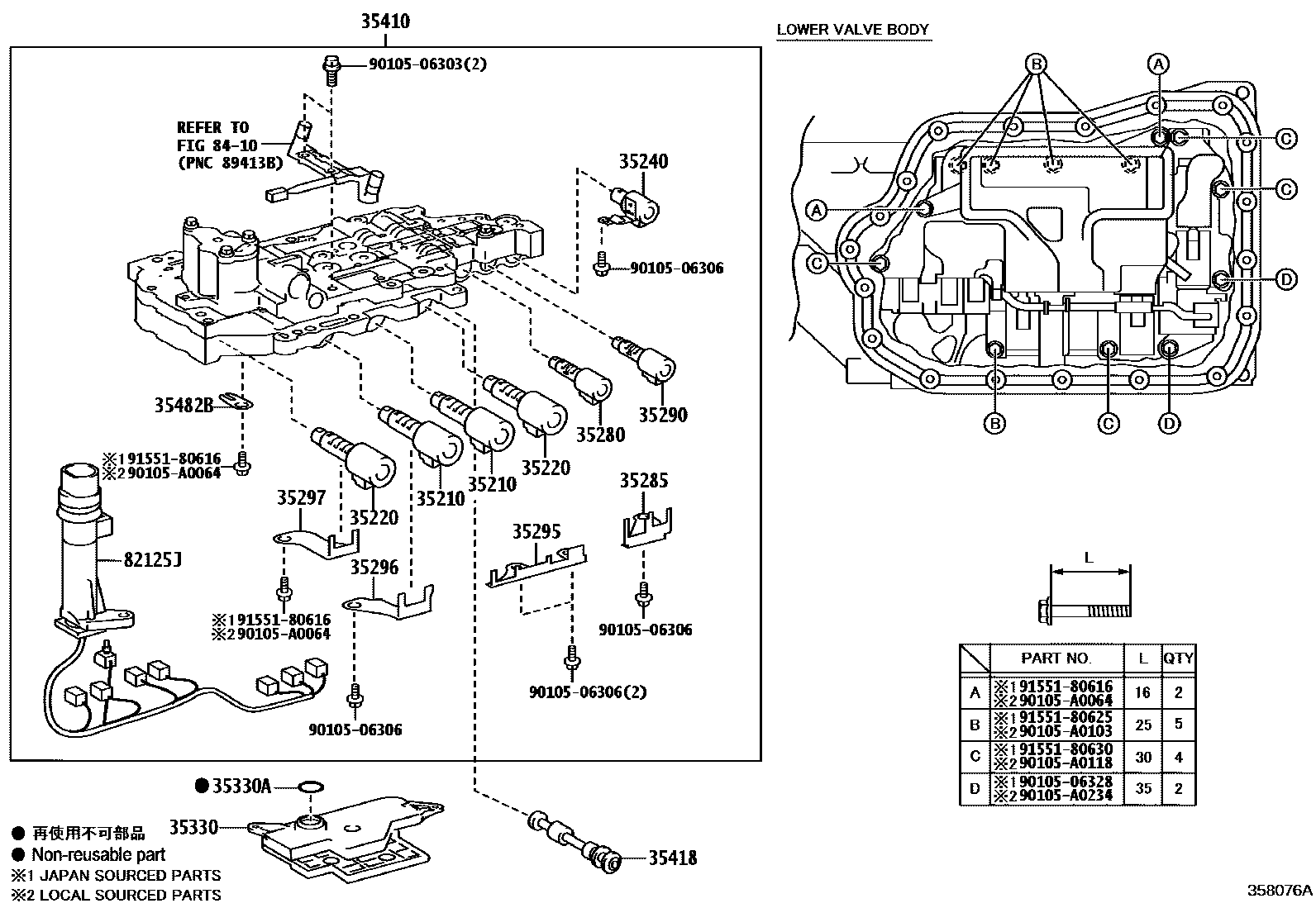

VALVE BODY & OIL STRAINER (ATM)
35210SOLENOID ASSY, CLUTCH CONTROL, NO.1
35220SOLENOID ASSY, CLUTCH CONTROL, NO.2
35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY
35280SOLENOID ASSY, LOCK UP CONTROL
35285PLATE, SOLENOID LOCK
TRANSAXLE NO.=XXAXXX
TRANSAXLE NO.=XXTXXX
35290SOLENOID ASSY, LINE PRESSURE CONTROL
35295PLATE, SOLENOID LOCK, NO.2
TRANSAXLE NO.=XXAXXX
TRANSAXLE NO.=XXTXXX
35296PLATE, SOLENOID LOCK, NO.3
TRANSAXLE NO.=XXTXXX
35297PLATE, SOLENOID LOCK, NO.4
TRANSAXLE NO.=XXAXXX
TRANSAXLE NO.=XXTXXX
35330STRAINER ASSY, VALVE BODY OIL
TRANSAXLE NO.=XXNXXX
TRANSAXLE NO.=XXNXXX
35330ARING, O (FOR OIL STRAINER)
TRANSAXLE NO.=XXNXXX
TRANSAXLE NO.=XXAXXX
35410BODY ASSY, TRANSMISSION VALVE
TRANSAXLE NO.=XXNXXX
TRANSAXLE NO.=XXTXXX
TRANSAXLE NO.=XXAXXX
35418VALVE, MANUAL
35482BCLAMP, TEMPERATURE SENSOR
82125JWIRE, TRANSMISSION
8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
9010506303
main90105-06303
9010506306
main90105-06306
9010506328
main90105-06328
90105A0064
main90105-A0064
90105A0103
main90105-A0103
90105A0118
main90105-A0118
90105A0234
main90105-A0234
9155180616
main91551-80616
9155180625
main91551-80625
9155180630
main91551-80630
26 parts on this diagram · 2 diagrams in section
