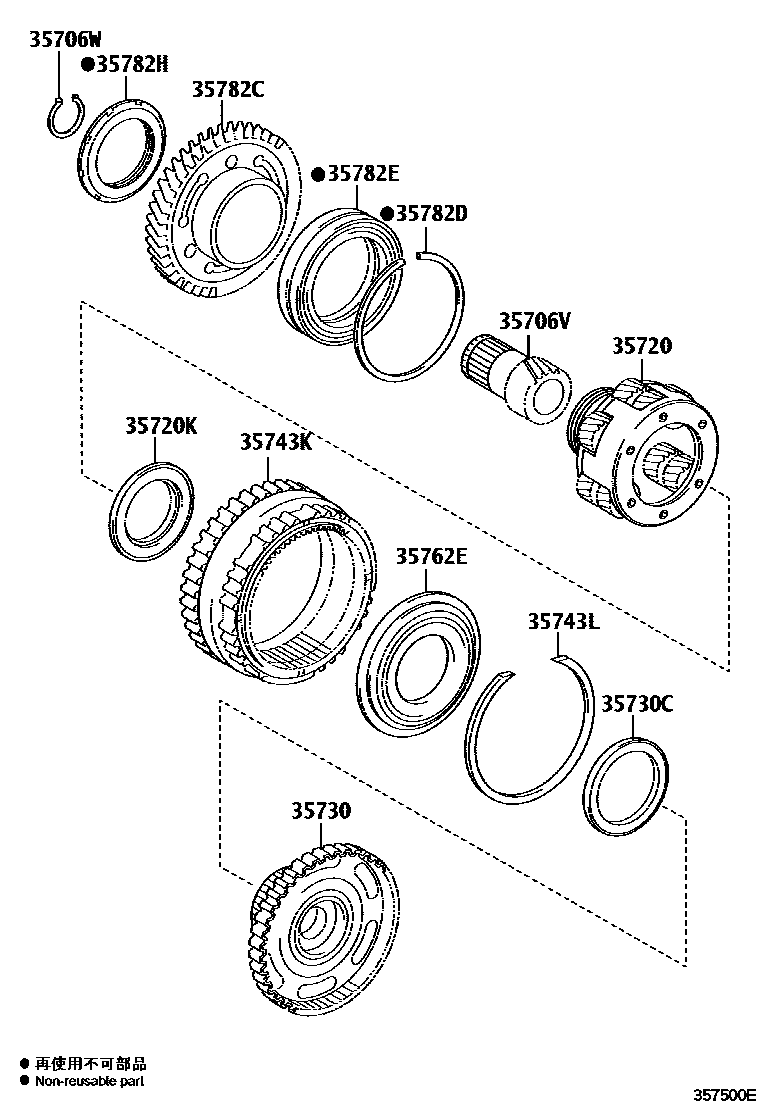

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35706VGEAR SUB ASSY, PLANETARY SUN
35706WRING, SNAP (FOR PLANETARY SUN GEAR)
35720GEAR ASSY, FRONT PLANETARY
TRANSAXLE NO.=XXAXXX
TRANSAXLE NO.=XXTXXX
35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)
TRANSAXLE NO.=XXAXXX
TRANSAXLE NO.=XXAXXX
TRANSAXLE NO.=XXNXXX
35730GEAR ASSY, REAR PLANETARY SUN
TRANSAXLE NO.=XXNXXX
TRANSAXLE NO.=XXAXXX
TRANSAXLE NO.=XXTXXX
35730CBEARING, THRUST NEEDLE(FOR REAR PLANETARY SUN GEAR, NO.2)
TRANSAXLE NO.=XXTXXX
TRANSAXLE NO.=XXNXXX
35743KGEAR, PLANETARY RING
TRANSAXLE NO.=XXTXXX
35743LRING, SNAP (FOR PLANETARY RING GEAR)
TRANSAXLE NO.=XXTXXX
TRANSAXLE NO.=XXNXXX
35762EFLANGE, PLANETARY RING GEAR
35782CGEAR, COUNTER DRIVE
TRANSAXLE NO.=XXAXXX
TRANSAXLE NO.=XXTXXX
35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)
TRANSAXLE NO.=XXTXXX
TRANSAXLE NO.=XXAXXX
TRANSAXLE NO.=XXNXXX
TRANSAXLE NO.=XXNXXX
35782EBEARING(FOR COUNTER DRIVE GEAR)
TRANSAXLE NO.=XXAXXX
TRANSAXLE NO.=XXAXXX
TRANSAXLE NO.=XXNXXX
TRANSAXLE NO.=XXNXXX
13 parts on this diagram · 1 diagram in section
