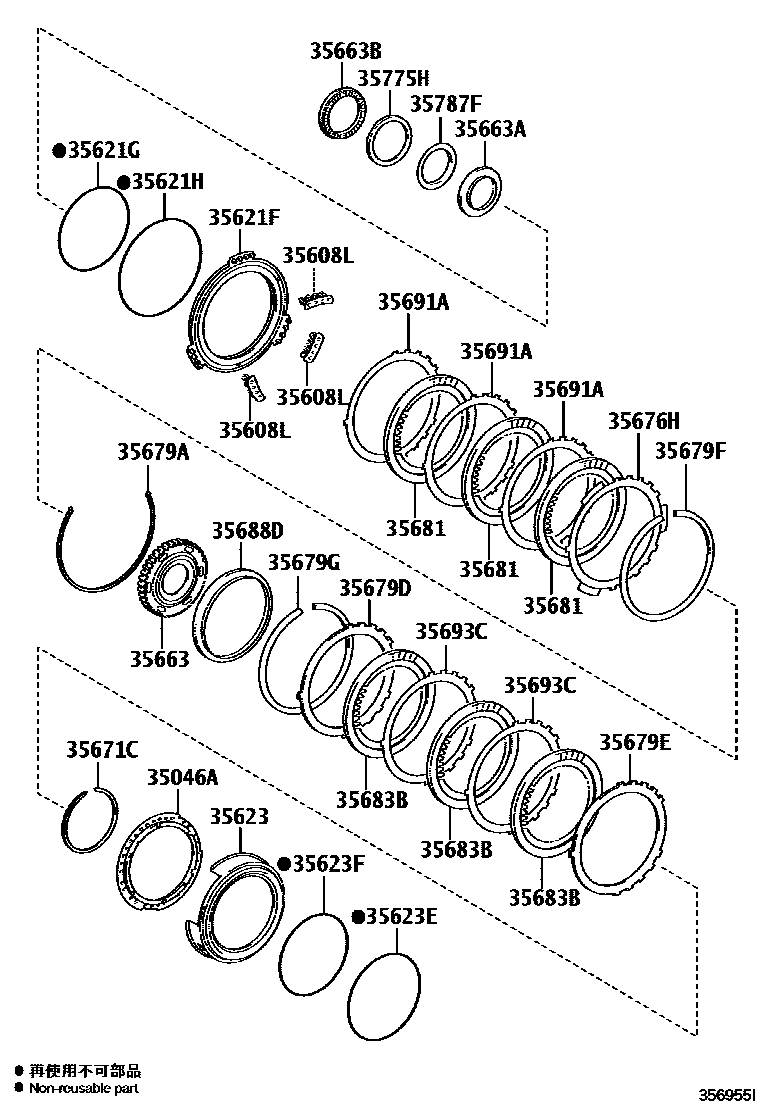

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35046ASPRING SUB-ASSY, BRAKE PISTON RETURN, NO.3

main35046-06010iASV50201409

TRANSAXLE NO.=XXNXXX

main35046-73010iASV50201109-201110

TRANSAXLE NO.=XXTXXX

35608LSPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-06020×3iASV50201111-201409

TRANSAXLE NO.=XXNXXX

main35608-73010×3iASV50201409

TRANSAXLE NO.=XXAXXX

35621FPISTON, BRAKE, NO.1

main35621-06010iASV50201111-201201

TRANSAXLE NO.=XXNXXX

main35621-33020iASV50201109-201404

TRANSAXLE NO.=XXAXXX

main35621-33030iASV50201409

TRANSAXLE NO.=XXAXXX

main35621-73010iASV50201109-201110

TRANSAXLE NO.=XXTXXX

35621GRING, O (FOR BRAKE PISTON INNER)

main90301-99156iASV50201111-201409

TRANSAXLE NO.=XXNXXX

main90301-99190iASV50201109-201409

TRANSAXLE NO.=XXAXXX

35621HRING, O (FOR BRAKE PISTON OUTER)

main90301-99093iASV50201111-201409

TRANSAXLE NO.=XXNXXX

main90301-99189iASV50201409

TRANSAXLE NO.=XXAXXX

35623PISTON, BRAKE, NO.3

main35623-06030iASV50201111-201409

TRANSAXLE NO.=XXNXXX

main35623-33080iASV50201109-201404

TRANSAXLE NO.=XXAXXX

main35623-33090iASV50201409

TRANSAXLE NO.=XXAXXX

main35623-73010iASV50201109-201110

TRANSAXLE NO.=XXTXXX

35623ERING, O, NO.1 (FOR BRAKE PISTON)

main90301-99156iASV50201111-201409

TRANSAXLE NO.=XXNXXX

main90301-99190iASV50201109-201409

TRANSAXLE NO.=XXAXXX

35623FRING, O, NO.2 (FOR BRAKE PISTON)

main90301-99181iASV50201111-201409

TRANSAXLE NO.=XXNXXX

main90301-99194iASV50201109-201110

TRANSAXLE NO.=XXTXXX

35663HUB, BRAKE NO.3

main35663-06010iASV50201111-201409

TRANSAXLE NO.=XXNXXX

main35663-33030iASV50201109-201409

TRANSAXLE NO.=XXAXXX

main35663-73010iASV50201109-201110

TRANSAXLE NO.=XXTXXX

35663ABEARING, THRUST NEEDLE ROLLER, NO.1

main90374-60001iASV50201109-201404

TRANSAXLE NO.=XXAXXX

main90374-A0036iASV50201409

TRANSAXLE NO.=XXNXXX

35663BBEARING, THRUST NEEDLE ROLLER, NO.2

main90374-62005iASV50201109-201312

TRANSAXLE NO.=XXAXXX

main90374-62010iASV50201401-201409

TRANSAXLE NO.=XXAXXX

main90374-A0041iASV50201409

TRANSAXLE NO.=XXNXXX

35671CRING, SNAP (FOR BRAKE PISTON RETURN SPRING)

main90520-99103iASV50201409

TRANSAXLE NO.=XXAXXX

main90520-A0011iASV50201409

TRANSAXLE NO.=XXNXXX

35676HFLANGE, BRAKE, NO.1

main35676-06100iASV50201111-201409

T=3.0,MARK 30,TRANSAXLE NO.=XXNXXX

main35676-06110iASV50201409

T=3.1,MARK 31,TRANSAXLE NO.=XXNXXX

main35676-06120iASV50201111-201409

T=3.2,MARK 32,TRANSAXLE NO.=XXNXXX

main35676-06130iASV50201409

T=3.3,MARK 33,TRANSAXLE NO.=XXNXXX

main35676-06140iASV50201409

T=3.4,MARK 34,TRANSAXLE NO.=XXNXXX

main35676-06150iASV50201111-201409

T=3.5,MARK 35,TRANSAXLE NO.=XXNXXX

main35676-73010iASV50201109-201110

T=3.0,MARK 30,TRANSAXLE NO.=XXTXXX

main35676-73020iASV50201409

T=3.1,MARK 31,TRANSAXLE NO.=XXAXXX

main35676-73030iASV50201109-201110

T=3.2,MARK 32,TRANSAXLE NO.=XXTXXX

main35676-73040iASV50201109-201409

T=3.3,MARK 33,TRANSAXLE NO.=XXAXXX

main35676-73050iASV50201109-201409

T=3.4,MARK 34,TRANSAXLE NO.=XXAXXX

main35676-73060iASV50201409

T=3.5,MARK 35,TRANSAXLE NO.=XXAXXX

main35676-73070iASV50201409

T=3.6,MARK 36,TRANSAXLE NO.=XXAXXX

35679ARING, HOLE SNAP(FOR BRAKE FLANGE)

main90521-99136iASV50201109-201409

TRANSAXLE NO.=XXAXXX

main90521-A0017iASV50201409

TRANSAXLE NO.=XXNXXX

35679DFRANGE, BRAKE, NO.2

main35679-06010iASV50201404-201409

TRANSAXLE NO.=XXAXXX

main35679-33080iASV50201410

TRANSAXLE NO.=XXAXXX

main35679-73010iASV50201109-201110

TRANSAXLE NO.=XXTXXX

35679EFRANGE, BRAKE, NO.3

main35679-06020iASV50201409

T=3.8,MARK 38,TRANSAXLE NO.=XXNXXX

main35679-06030iASV50201111-201409

T=3.9,MARK 39,TRANSAXLE NO.=XXNXXX

main35679-06040iASV50201409

T=4.0,MARK 40,TRANSAXLE NO.=XXNXXX

main35679-06050iASV50201111-201409

T=4.1,MARK 41,TRANSAXLE NO.=XXNXXX

main35679-06060iASV50201409

T=4.2,MARK 42,TRANSAXLE NO.=XXNXXX

main35679-06070iASV50201111-201409

T=4.3,MARK 43,TRANSAXLE NO.=XXNXXX

main35679-73020iASV50201109-201110

T=3.8,MARK 38,TRANSAXLE NO.=XXTXXX

main35679-73030iASV50201409

T=3.9,MARK 39,TRANSAXLE NO.=XXAXXX

main35679-73040iASV50201109-201409

T=4.0,MARK 40,TRANSAXLE NO.=XXAXXX

main35679-73050iASV50201109-201409

T=4.1,MARK 41,TRANSAXLE NO.=XXAXXX

main35679-73060iASV50201109-201409

T=4.2,MARK 42,TRANSAXLE NO.=XXAXXX

main35679-73070iASV50201409

T=4.3,MARK 43,TRANSAXLE NO.=XXAXXX

main35679-73080iASV50201409

T=4.4,MARK 44,TRANSAXLE NO.=XXAXXX

35679FRING, SNAP(FOR BRAKE FLANGE)

main90520-99144iASV50201109-201409

35679GRING, SNAP (FOR RAKE FLANGE NO.3)

main90520-99136iASV50201109-201409

35681DISC, BRAKE, NO.1

main35681-06020×3iASV50201111-201409

TRANSAXLE NO.=XXNXXX

main35681-73010×3iASV50201109-201409

TRANSAXLE NO.=XXAXXX

35683BDISC, BRAKE, NO.3

main35683-06010×3iASV50201409

TRANSAXLE NO.=XXNXXX

main35683-73010×3iASV50201409

TRANSAXLE NO.=XXAXXX

35688DSTOPPER, BRAKE SNAP RING

main35688-73010iASV50201109-201409

35691APLATE, BRAKE, NO.1

main35691-06020×3iASV50201111-201409

TRANSAXLE NO.=XXNXXX

main35691-73010×3iASV50201109-201110

TRANSAXLE NO.=XXTXXX

35693CPLATE, BRAKE, NO.3

main35693-07010×2iASV50201409

TRANSAXLE NO.=XXNXXX

main35693-73010×2iASV50201109-201110

TRANSAXLE NO.=XXTXXX

35775HRACE, THRUST BEARING, NO.5

main35775-07010iASV50201210-201409

TRANSAXLE NO.=XXNXXX

main35775-33020iASV50201401-201409

TRANSAXLE NO.=XXAXXX

main35775-73010iASV50201111-201210

TRANSAXLE NO.=XXNXXX

35787FRACE, THRUST BEARING, NO.2

main35787-0R010iASV50201210-201409

TRANSAXLE NO.=XXNXXX

main35787-73010iASV50201109-201404

TRANSAXLE NO.=XXAXXX

25 parts on this diagram · 1 diagram in section
