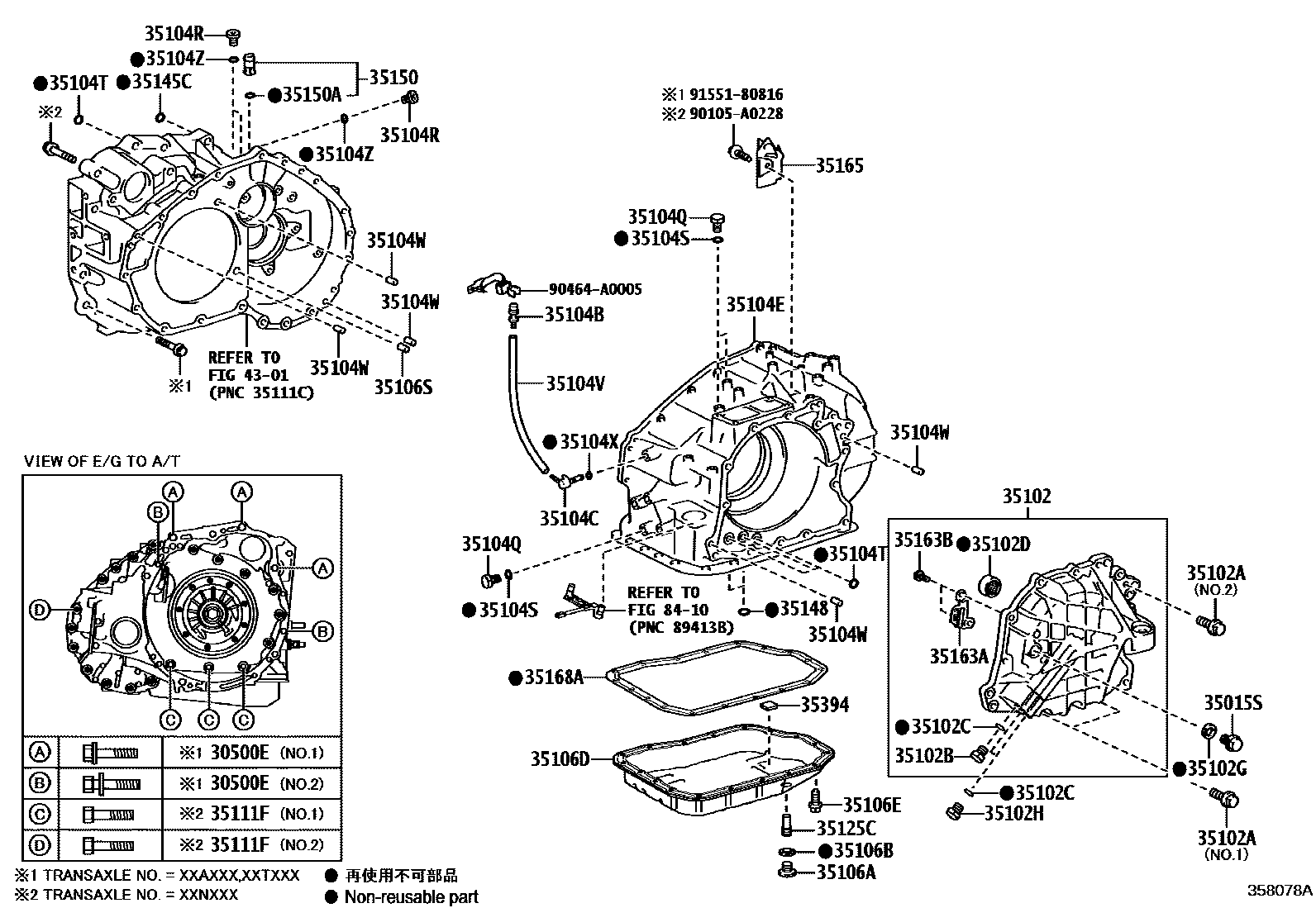

TRANSMISSION CASE & OIL PAN (ATM)

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90080-10299×2iASV50201409

*10-1.25PX50-30,NO.2

main90080-11310×3iASV50201409

*12-1.25PX55-30,NO.1

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18064iASV50201109-201409

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-06030iASV50201111-201403

TRANSAXLE NO.=XXNXXX

main35102-06031iASV50201404-201409

TRANSAXLE NO.=XXNXXX

main35102-33090iASV50201109-201308

TRANSAXLE NO.=XXAXXX

main35102-33091iASV50201308-201409

TRANSAXLE NO.=XXAXXX

main35102-73010iASV50201109-201110

TRANSAXLE NO.=XXTXXX

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08431×2iASV50201109-201409

*8-1.25PX28-22,AXLE NO.=XXAXXX,NO.1

main90105-A0109×2iASV50201409

*8-1.25PX28-22,AXLE NO.=XXNXXX,NO.1

main90105-A0213×12iASV50201409

*8-1.25PX28-22,AXLE NO.=XXNXXX,NO.2

main91551-00828×12iASV50201109-201110

*8-1.25PX28-22,AXLE NO.=XXTXXX,NO.2

35102BPLUG(FOR TRANSAXLE REAR COVER)

main90341-08001iASV50201109-201110

TRANSAXLE NO.=XXTXXX

main90341-A0001iASV50201409

TRANSAXLE NO.=XXNXXX

35102CRING, O(FOR TRANSAXLE REAR COVER PULG)

main90080-30075iASV50201305-201409

(L)

main90301-06196×3iASV50201409

(J)

35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)

main90364-18010iASV50201409

TRANSAXLE NO.=XXAXXX

main90364-A0010iASV50201409

TRANSAXLE NO.=XXNXXX

35102GGASKET (FOR TRANSAXLE REAR COVER )

main90430-18008iASV50201409

35102HPLUG, NO.2 (FOR TRANSAXLE REAR COVER)

main90341-08001×2iASV50201109-201409

TRANSAXLE NO.=XXAXXX

main90341-A0001×2iASV50201409

TRANSAXLE NO.=XXNXXX

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03149iASV50201109-201409

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03187iASV50201409

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35141-06030iASV50201111-201409

TRANSAXLE NO.=XXNXXX

main35141-06031iASV50201411

AXLE NO.=XXNXXX,(L)

main35141-33140iASV50201109-201404

TRANSAXLE NO.=XXAXXX

main35141-33141iASV50201411

AXLE NO.=XXNXXX,(J)

main35141-73010iASV50201109-201110

TRANSAXLE NO.=XXTXXX

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×3iASV50201109-201409

TRANSAXLE NO.=XXAXXX

main90341-A0001×3iASV50201111-201409

TRANSAXLE NO.=XXNXXX

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-14015×3iASV50201109-201409

TRANSAXLE NO.=XXAXXX

main90341-A0005×3iASV50201409

TRANSAXLE NO.=XXNXXX

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×3iASV50201409

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90301-10018×4iASV50201109-201110

TRANSAXLE NO.=XXTXXX

main90301-10189×4iASV50201409

TRANSAXLE NO.=XXNXXX

35104VHOSE (FOR BREATHER PLUG)

main35121-33050iASV50201109-201404

TRANSAXLE NO.=XXAXXX

main35121-33051iASV50201409

main35121-73010iASV50201109-201110

TRANSAXLE NO.=XXTXXX

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017×5iASV50201109-201409

35104XRING, O (FOR BREATHER PLUG)

main90301-06021iASV50201409

35104ZGASKET (FOR TRANSAXLE CASE)

main90430-14008×3iASV50201109-201409

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-12034iASV50201109-201409

35106BGASKET, DRAIN PLUG (ATM)

main90430-12008iASV50201109-201110

TRANSAXLE NO.=XXTXXX

main90430-A0002iASV50201409

TRANSAXLE NO.=XXNXXX

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-06020iASV50201409

TRANSAXLE NO.=XXNXXX

main35106-33070iASV50201409

main35106-73010iASV50201109-201110

TRANSAXLE NO.=XXTXXX

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90080-11496×2iASV50201111-201409

AXLE NO.=XXNXXX,NO.2

main90119-06173×19iASV50201409

TRANSAXLE NO.=XXAXXX

main90119-A0298×17iASV50201111-201409

AXLE NO.=XXNXXX,NO.1

35106SPIN, RING (FOR TRANSAXLE CASE)

main90253-11007iASV50201409

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08432×3iASV50201409

*8-1.25PX45-22,AXLE NO.=XXAXXX,NO.1

main90105-A0110×3iASV50201409

*8-1.25PX45-22,AXLE NO.=XXNXXX,NO.1

main90105-A0111×17iASV50201409

*8-1.25PX45-22,AXLE NO.=XXNXXX,NO.2

main91551-10845×17iASV50201409

*8-1.25PX45-22,AXLE NO.=XXAXXX,NO.2

35125CTUBE, TRANSMISSION OIL FILLER, NO.1

main35125-73010iASV50201109-201409

35145CGASKET, TRANSAXLE CASE

main35145-33010iASV50201109-201409

35148GASKET, GOVERNOR APPLY, NO.1

main35145-33010×2iASV50201109-201409

35150PLUG ASSY, TRANSMISSION CASE

main35150-44010iASV50201109-201409

35150ARING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG)

main90301-09173iASV50201109-201409

35163APLATE, TRANSAXLE REAR COVER

main35163-07010iASV50201409

(L)

main35163-33010iASV50201409

(J)

35163BSCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)

main90080-14046×2iASV50201409

(L)

main90148-60055×2iASV50201409

(J)

35165PLATE, TRANSMISSION CASE, NO.1

main35165-73010iASV50201109-201409

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-73010iASV50201109-201409

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iASV50201109-201402

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

90105A0228

main90105-A0228

90464A0005

main90464-A0005

9155180816

main91551-80816

41 parts on this diagram · 1 diagram in section
