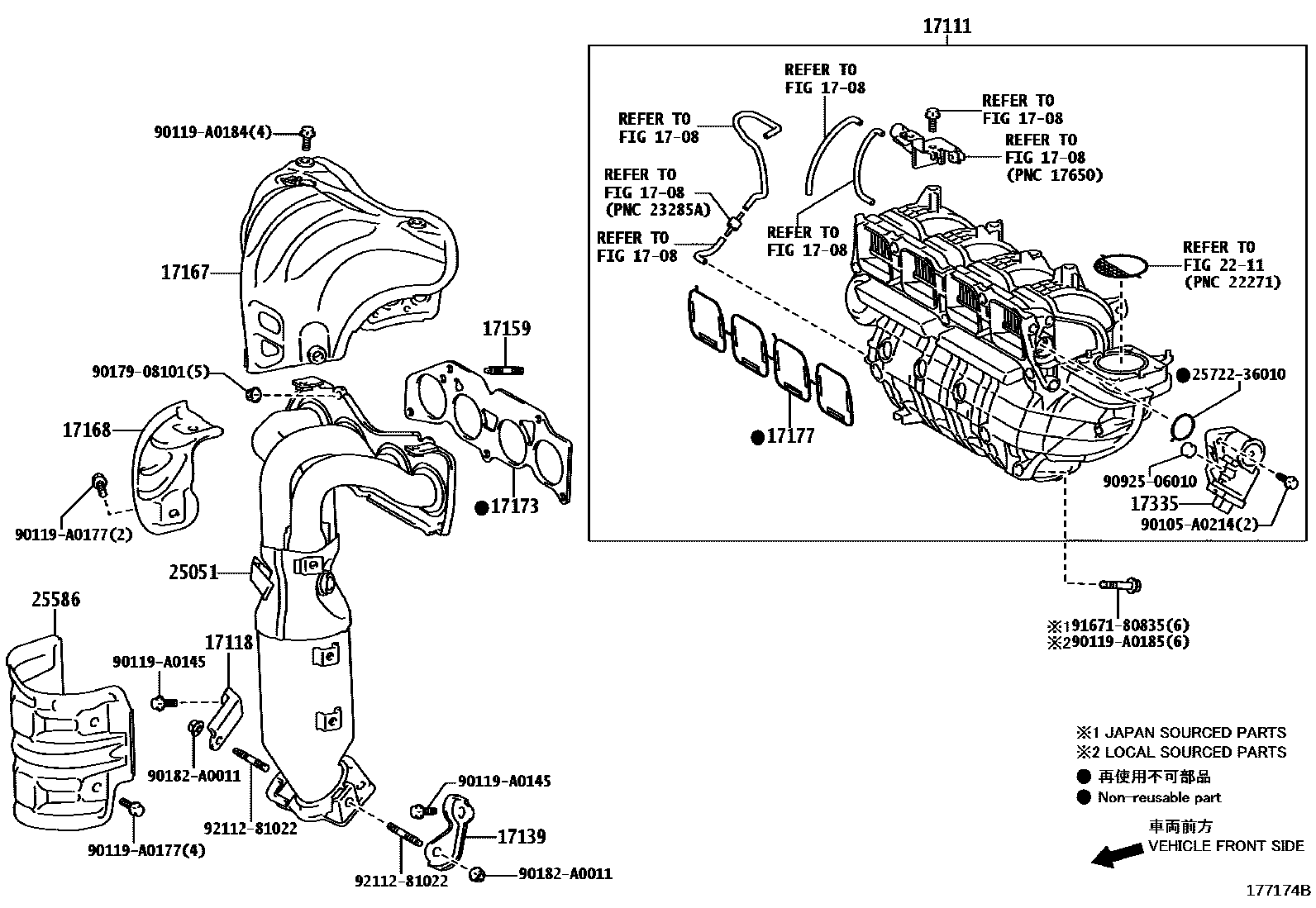

MANIFOLD
1708
17111MANIFOLD, INTAKE
sub17120-36011
17118STAY, MANIFOLD
(L)
(J)
17139STAY, MANIFOLD, NO.2
(L)
(J)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17335ACTUATOR, INTAKE AIR CONTROL VALVE
2211
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25586INSULATOR, MANIFOLD CONVERTER, NO.1
2572236010GASKET, ELECTRIC AIR CONTROL VALVE
main25722-36010
90105A0214
main90105-A0214
90119A0145
main90119-A0145
90119A0177
main90119-A0177
90119A0184
main90119-A0184
90119A0185
main90119-A0185
9017908101
main90179-08101
90182A0011
main90182-A0011
9092506010
main90925-06010
9167180835
main91671-80835
9211281022
main92112-81022
24 parts on this diagram · 2 diagrams in section
