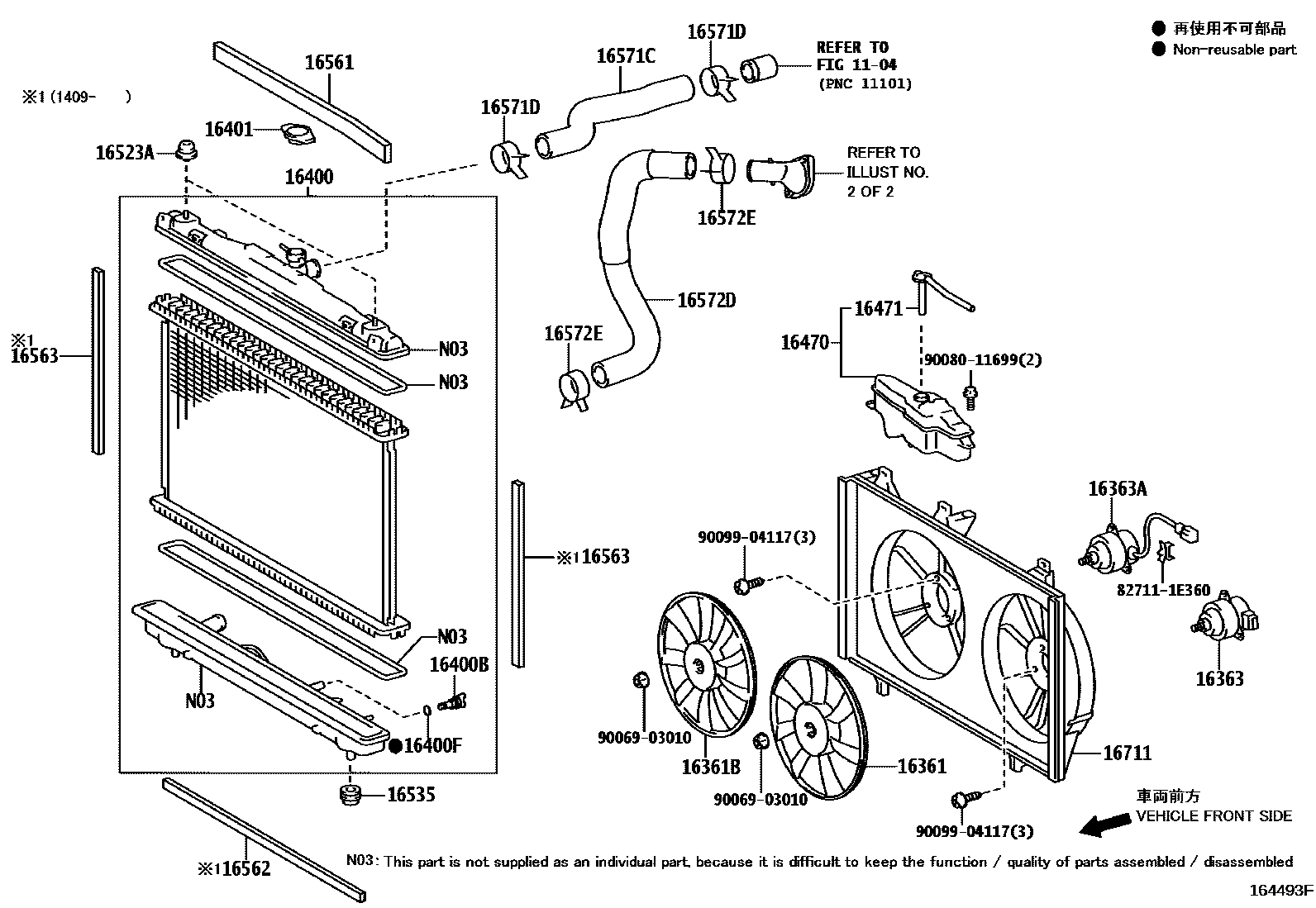

RADIATOR & WATER OUTLET

0001 1 0002 1

1104CYLINDER HEAD

→ Go to FIG 11-04

16361FAN

main16361-0V090i2ARFE..ASV50201109-201112

main16361-0V420i2ARFE..ASV50201201-201409

16361BFAN, NO.2

main16361-0V100i2ARFE..ASV50201109-201112

main16361-0V430i2ARFE..ASV50201201-201409

16363MOTOR, COOLING FAN

main16363-0H010i2ARFE..ASV50201109-201409

16363AMOTOR, COOLING FAN, NO.2

main16363-0V130i2ARFE..ASV50201409

16400RADIATOR ASSY

main16400-0V110i2ARFE..ASV50201409

16400BPLUG, RADIATOR DRAIN COCK

main16417-0C180i2ARFE..ASV50201301-201409

main16417-21280i2ARFE..ASV50201109-201301

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i2ARFE..ASV50201409

16401CAP SUB-ASSY, RADIATOR

main16401-31480i2ARFE..ASV50201109-201206

main16401-31520i2ARFE..ASV50201207-201409

16470TANK ASSY, RADIATOR RESERVE

main16470-0V020i2ARFE..ASV50201109-201409

16471CAP SUB-ASSY, RESERVE TANK

main16405-0V060i2ARFE..ASV50201109-201409

16523ACUSHION, RADIATOR SUPPORT

main16523-AD010×2i2ARFE..ASV50201409

16535SUPPORT, RADIATOR, LOWER

main16535-36010×2i2ARFE..ASV50201109-201409

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-0H010i2ARFE..ASV50201109-201409

main16561-0V080i2ARFE..ASV50201409

16562SEAL, RADIATOR TO SUPPORT, NO.2

main16562-0V040i2ARFE..ASV50201409

16563SEAL, RADIATOR TO SUPPORT, NO.3

main16563-0V070×2i2ARFE..ASV50201409

16571CHOSE, RADIATOR, NO.1

main16571-0V070i2ARFE..ASV50201109-201409

16571DCLIP, RADIATOR HOSE, NO.1

main90466-A0020×2i2ARFE..ASV50201109-201409

16572DHOSE, RADIATOR, NO.2

main16572-0V060i2ARFE..ASV50201109-201409

16572ECLIP, RADIATOR HOSE, NO.2

main90466-A0020×2i2ARFE..ASV50201109-201409

16711SHROUD, FAN

main16711-0V100i2ARFE..ASV50201109-201409

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9006903010

main90069-03010

9008011699

main90080-11699

9009904117

main90099-04117

25 parts on this diagram · 2 diagrams in section
