Toyota CAMRY 28A — VENTILATION HOSE

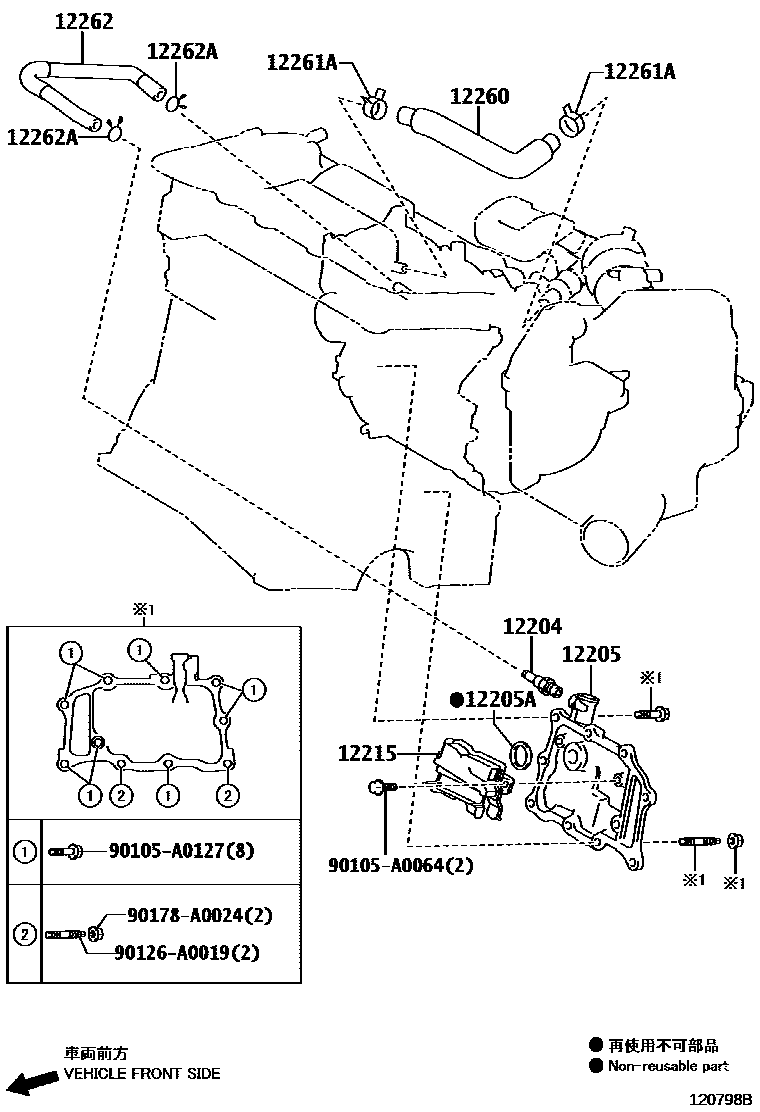

Parts diagram

12204VALVE SUB-ASSY, VENTILATION

12205CASE SUB-ASSY, VENTILATION

12205ARING, O(FOR VENTILATION CASE)

12215SEPARATOR, CASE

12260HOSE ASSY, VENTILATION

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

12262HOSE, VENTILATION, NO.2

12262ACLIP(FOR VENTILATION HOSE NO.2)

90105A0064

90105A0127

90126A0019

90178A0024

12 parts on this diagram · 1 diagram in section

VENTILATION HOSE for Toyota CAMRY 28A

This section contains 12 genuine Toyota parts for the VENTILATION HOSE system of the Toyota CAMRY 28A. Key components include: VALVE SUB-ASSY, VENTILATION, CASE SUB-ASSY, VENTILATION, RING, O(FOR VENTILATION CASE), SEPARATOR, CASE, HOSE ASSY, VENTILATION.
