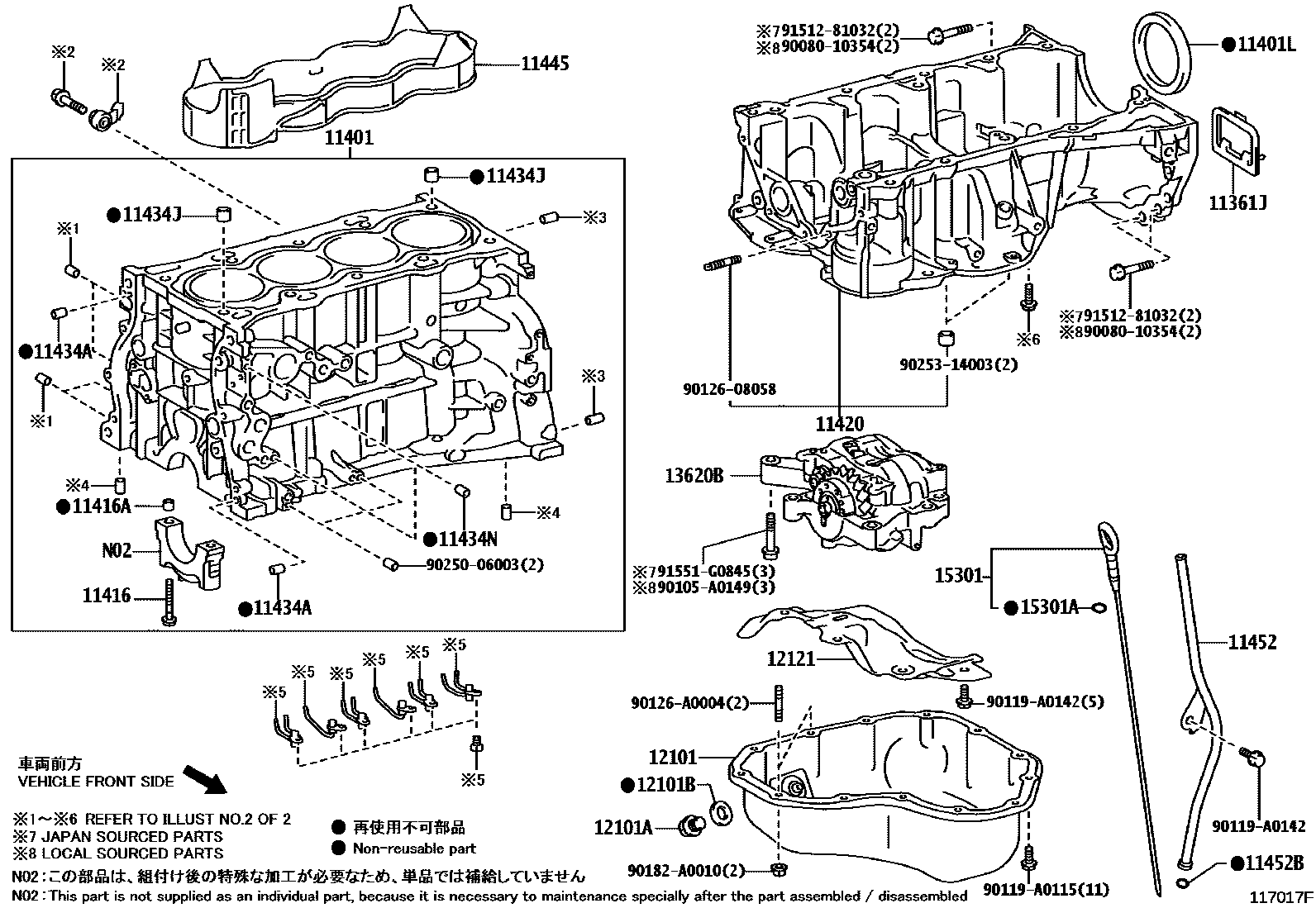

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
(L)
(J)
11401BLOCK SUB-ASSY, CYLINDER
(L)
(J)
11401LSEAL, ENGINE REAR OIL
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)
11420CRANKCASE ASSY, STIFFENING
(L)
(J)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=14,OD=6
11434JPIN, RING (FOR CYLINDER HEAD SET)
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
11445SPACER, CYLINDER BLOCK WATER JACKET
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12121PLATE, OIL PAN BAFFLE, NO.1
13620BBALANCER ASSY, ENGINE
(L)
(J)
(J)
15301GAGE SUB-ASSY, OIL LEVEL
(L)
(J)
(J)
15301ARING, O(FOR OIL LEVEL GAGE)
9008010354
main90080-10354
90105A0149
main90105-A0149
90119A0115
main90119-A0115
90119A0142
main90119-A0142
9012608058
main90126-08058
90126A0004
main90126-A0004
90182A0010
main90182-A0010
9025006003
main90250-06003
9025314003
main90253-14003
9151281032
main91512-81032
91551G0845
main91551-G0845
30 parts on this diagram · 2 diagrams in section
