AIR PURIFIER OR ION GENERATOR

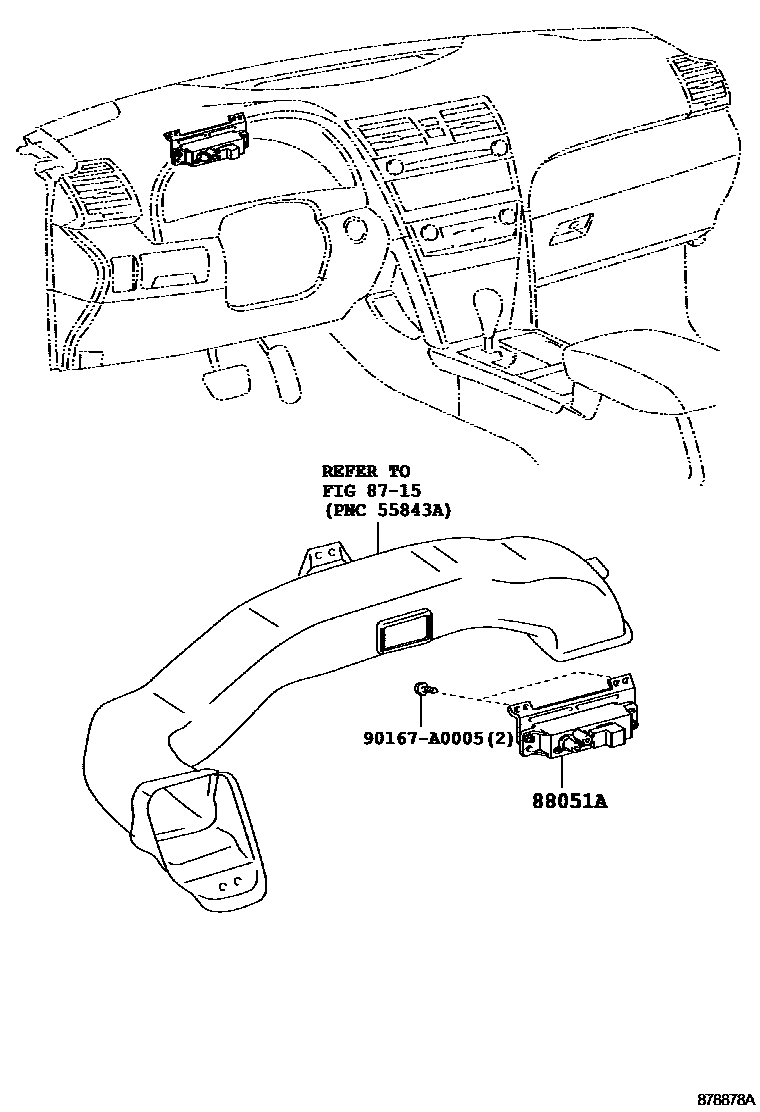

Parts diagram

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

88051AGENERATOR SUB-ASSY,ION

main88050-33010i200610-200903

main88050-33020i201002-201109

90167A0005

main90167-A0005

3 parts on this diagram · 1 diagram in section
