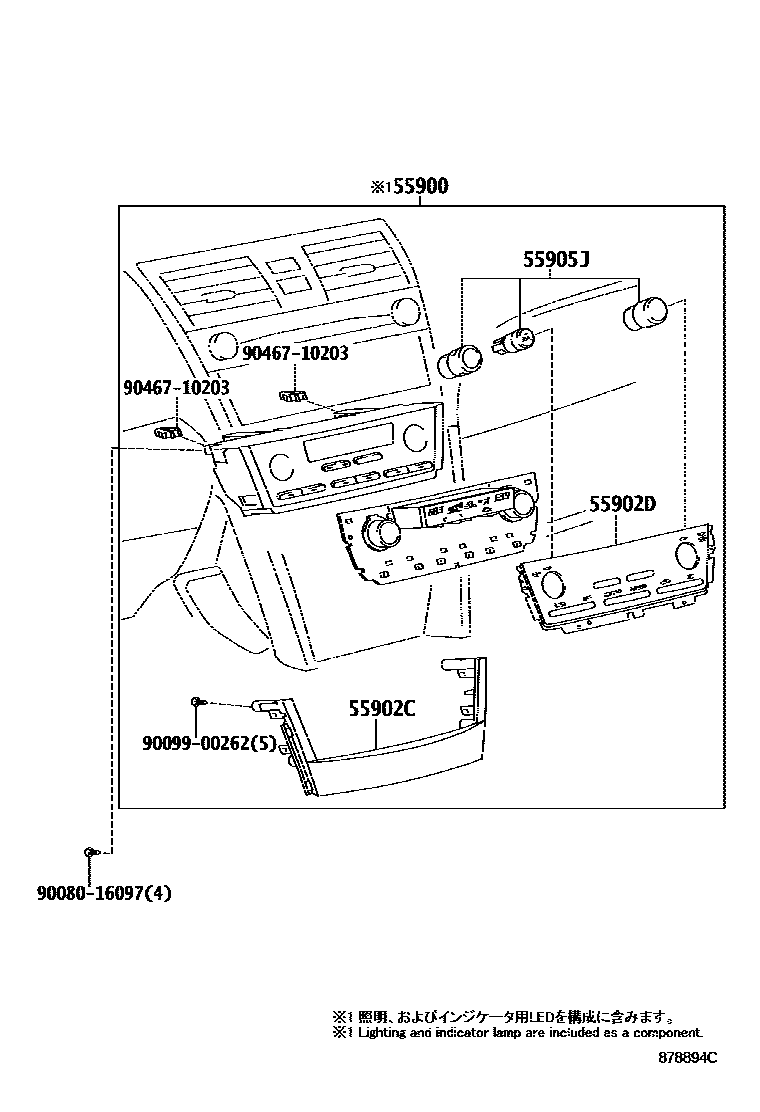

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL 0002 1CONTROL 0003 1DUCT 0004 1SENSOR

55900CONTROL ASSY, AIR CONDITIONER

main55900-06270iAHV40..NAP200610-200707

main55900-06271iAHV40..NAP200708-200903

main55900-06330iAHV40..NAP200903

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-06180iAHV40..NAP200610-200707

55902DPANEL SUB-ASSY, AIR CONDITIONER

main55902-06190iAHV40..NAP200610-200707

55905JKNOB SUB-ASSY, CONTROL

main55905-06190iAHV40..NAP200610-200708

main55905-06210iAHV40..NAP200708-200903

9008016097

main90080-16097

9009900262

main90099-00262

9046710203

main90467-10203

7 parts on this diagram · 4 diagrams in section
