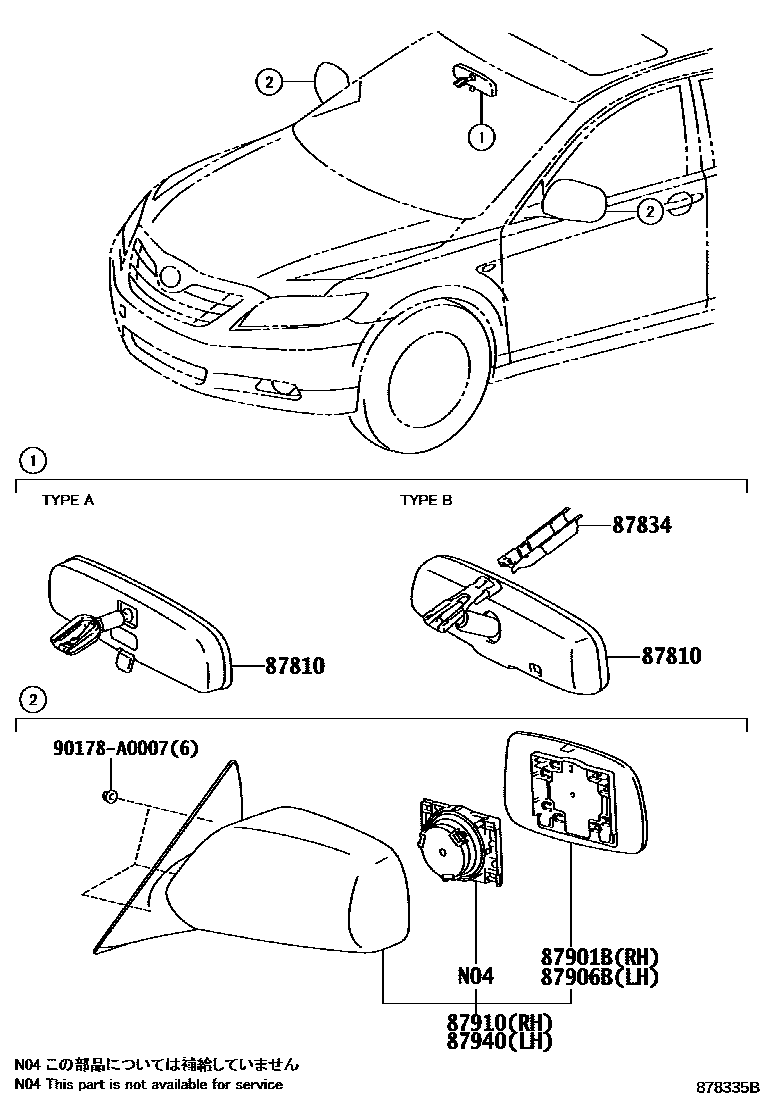

MIRROR
87810MIRROR ASSY, INNER REAR VIEW
DECONTENT PACKAGE,TYPE A:REFER ILLUST.
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
OUTSIDE REAR VIEW MIRROR-WITH(HEATER)
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
OUTSIDE REAR VIEW MIRROR-WITH(HEATER)
87910MIRROR ASSY, OUTER REAR VIEW, RH
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),SUPER WHITE 2,040
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),WHITE PEARL CS.,070
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),SILVER ME.,1D4
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),GRAY ME.,1G3
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),SILVER ME.,1F7
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),BLACK,202
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),RED M.M.,3R3
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),BEIGE M. M.,4Q2
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),BEIGE ME.,4T8
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),LT.GREEN ME.,6U6
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),DK.GREEN MC.,6V4
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),TURQUOISE M.M.,776
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),LT.BLUE ME.,8S4
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),DK.BLUE MC.,8T5
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),LIGHT BLUE MICA METALLIC,8U8
87940MIRROR ASSY, OUTER REAR VIEW, LH
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),SUPER WHITE 2,040
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),WHITE PEARL CS.,070
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),SILVER ME.,1D4
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),GRAY ME.,1G3
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),SILVER ME.,1F7
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),BLACK,202
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),RED M.M.,3R3
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),BEIGE M. M.,4Q2
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),BEIGE ME.,4T8
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),LT.GREEN ME.,6U6
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),DK.GREEN MC.,6V4
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),TURQUOISE M.M.,776
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),LT.BLUE ME.,8S4
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),DK.BLUE MC.,8T5
OUTSIDE REAR VIEW MIRROR-WITH(HEATER),LIGHT BLUE MICA METALLIC,8U8
90178A0007
main90178-A0007
7 parts on this diagram · 1 diagram in section
