Toyota 791410 — RADIO RECEIVER & AMPLIFIER & CONDENSER

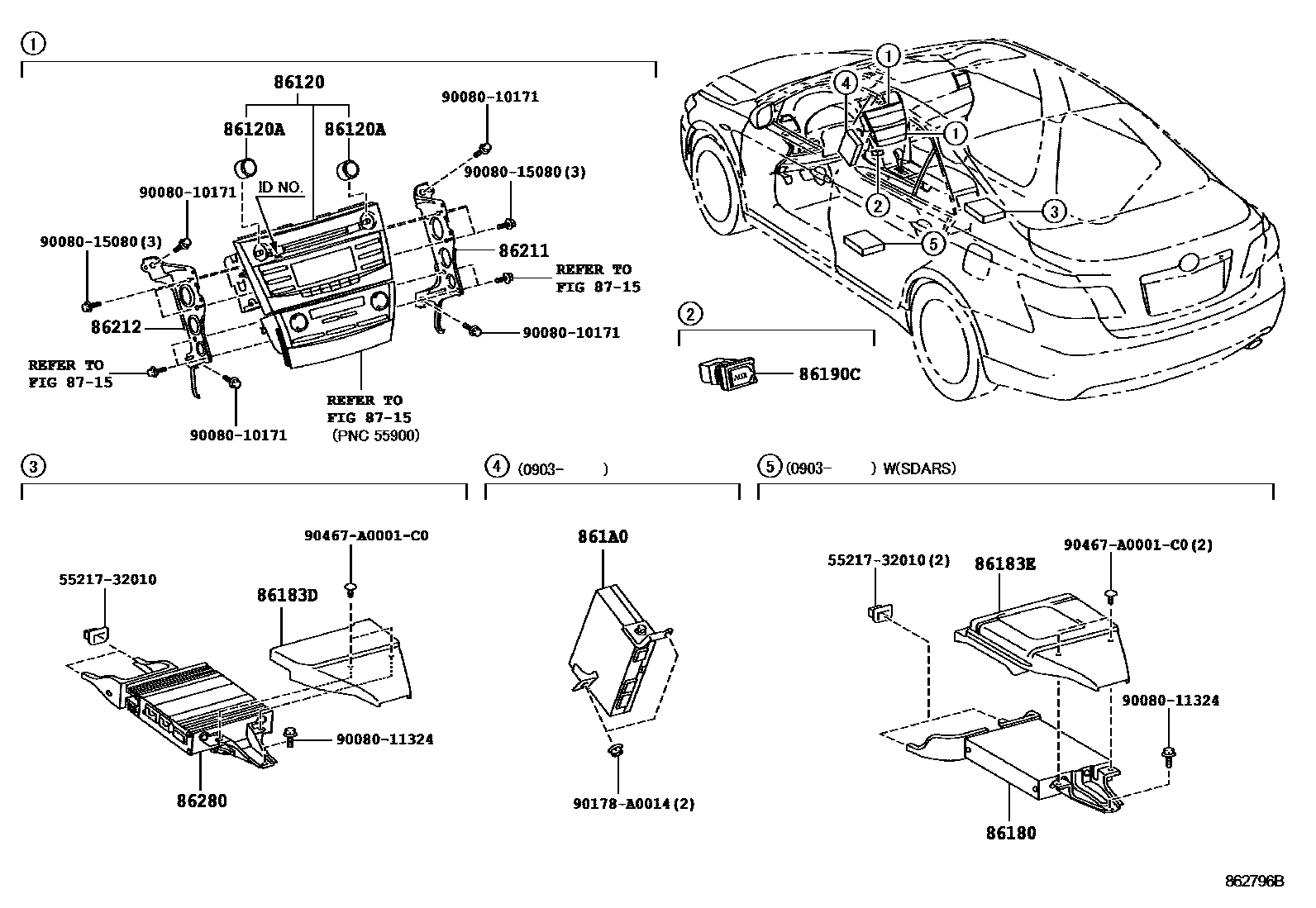

Parts diagram

86120RECEIVER ASSY, RADIO

86120AKNOB, RADIO RECEIVER SWITCH

86180TUNER ASSY, STEREO COMPONENT

86183DCOVER, AUDIO AMPLIFIER

86183ECOVER, AUDIO AMPLIFIER

86190CADAPTER ASSY, STEREO JACK, NO.1

861A0COMPUTER ASSY, MULTI-MEDIA INTERFACE

86211BRACKET, RADIO, NO.1

86212BRACKET, RADIO, NO.2

86280AMPLIFIER ASSY, STEREO COMPONENT

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

5521732010STRIP, DASH PANEL SILENCER FINISH

9008010171

9008011324

9008015080

90178A0014

90467A0001C0

17 parts on this diagram · 2 diagrams in section

RADIO RECEIVER & AMPLIFIER & CONDENSER for Toyota 791410

This section contains 23 genuine Toyota parts for the RADIO RECEIVER & AMPLIFIER & CONDENSER system of the Toyota 791410. Key components include: CONDENSER, RADIO SETTING, RECEIVER ASSY, RADIO, KNOB, RADIO RECEIVER SWITCH.
