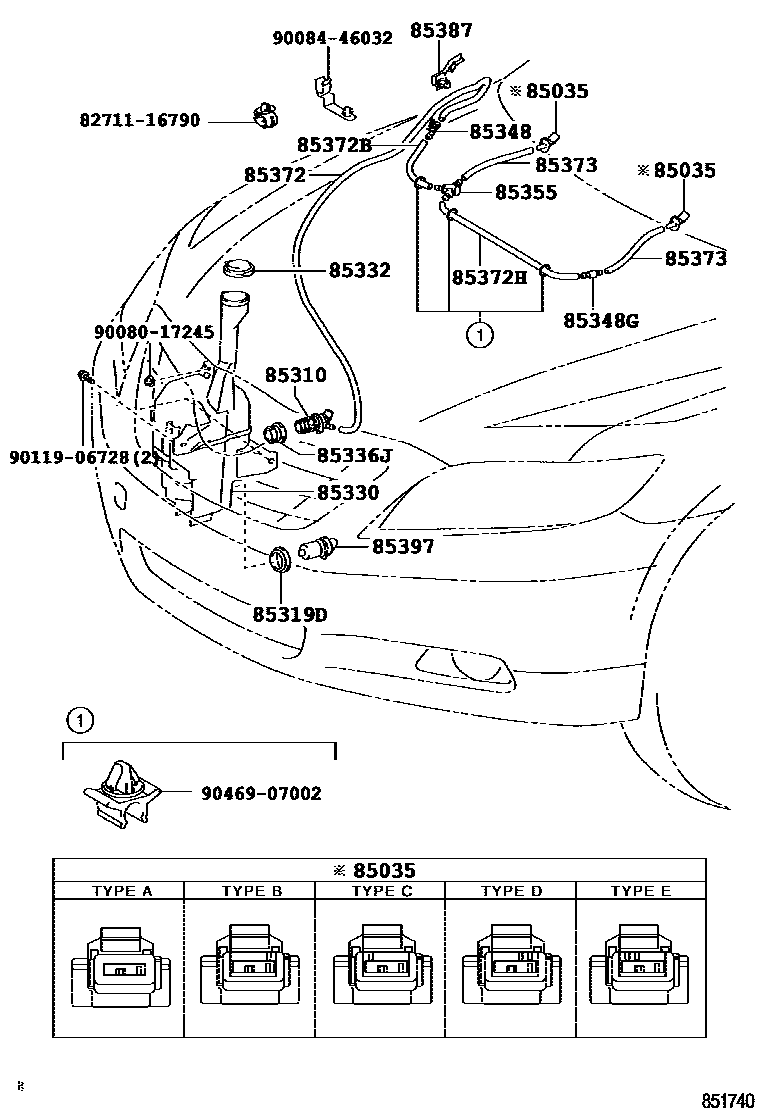

85035NOZZLE SUB-ASSY, WASHER

main85381-30170×2i200903

TYPE A:REFER ILLUST.

main85381-30180×2i200610-200903

TYPE B:REFER ILLUST.

main85381-30190×2i200610-200903

TYPE C:REFER ILLUST.

main85381-30200×2i200903

TYPE D:REFER ILLUST.

main85381-30210×2i200610-200903

TYPE E:REFER ILLUST.

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-60190i200903

85319DPACKING, FRONT WASHER

main85319-AA020i200610-200903

85330JAR ASSY, WINDSHIELD WASHER

main85315-06140i200610-200903

85332CAP, WINDSHIELD WASHER JAR

main85386-0C010i200610-200903

85336JPROTECTOR, WASHER JAR

main85336-60300i200610-200903

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-AA020i200610-200903

main85376-06120i201009

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85317-02300×2i201009

main85375-06020i200610-200903

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i200610-200903

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85374-06150i200610-200903

L=1530

main90068-59053i201009

L=1485

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main85374-06140i200610-200903

L=410

main85375-06081i201009

L=410

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main85374-06131i200610-200903

L=590

main90068-33142i201009

L=590

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33022×10i200610-200903

L=270

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85371-06020i200610-200903

main85387-33080i201009

85397SWITCH ASSY,LEVEL WARNING

main85397-AA040i200610-200903

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

9008017245

main90080-17245

9008446032

main90084-46032

9011906728

main90119-06728

9046907002

main90469-07002
