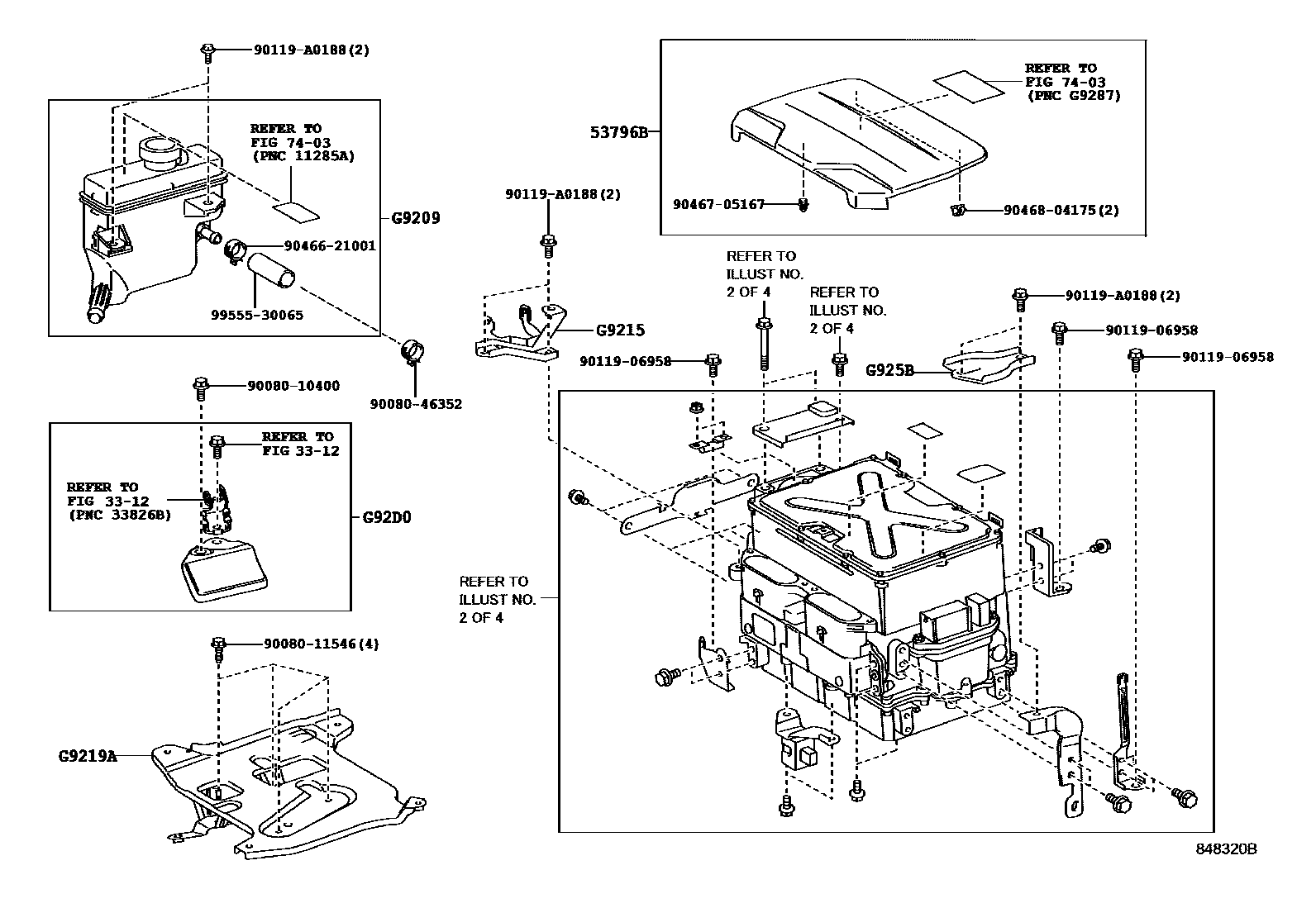

HEV INVERTER

0001 1 0002 1 0003 1 0004 1

3312

53796BCOVER, ENGINE ROOM SIDE, LH NO.2

main51470-06010iAHV40..NAP200610-200903

7403

G9209TANK SUB-ASSY, INVERTER RESERVE

mainG920933010iAHV40..NAP200610-200903

G9215BRACKET, INVERTER, NO.2

mainG921533010iAHV40..NAP200610-200903

G9219ABRACKET, INVERTER TRAY

mainG921933010iAHV40..NAP200610-200903

G925BBRACKET, INVERTER, NO.6

mainG925B33010iAHV40..NAP200610-200903

G92D0PROTECTOR ASSY, HYBRID INVERTER

mainG92D033010iAHV40..NAP200610-200903

9008010400

main90080-10400

9008011546

main90080-11546

9008046352

main90080-46352

9011906958

main90119-06958

90119A0188

main90119-A0188

9046621001

main90466-21001

9046705167

main90467-05167

9046804175

main90468-04175

9955530065

main99555-30065

17 parts on this diagram · 4 diagrams in section
