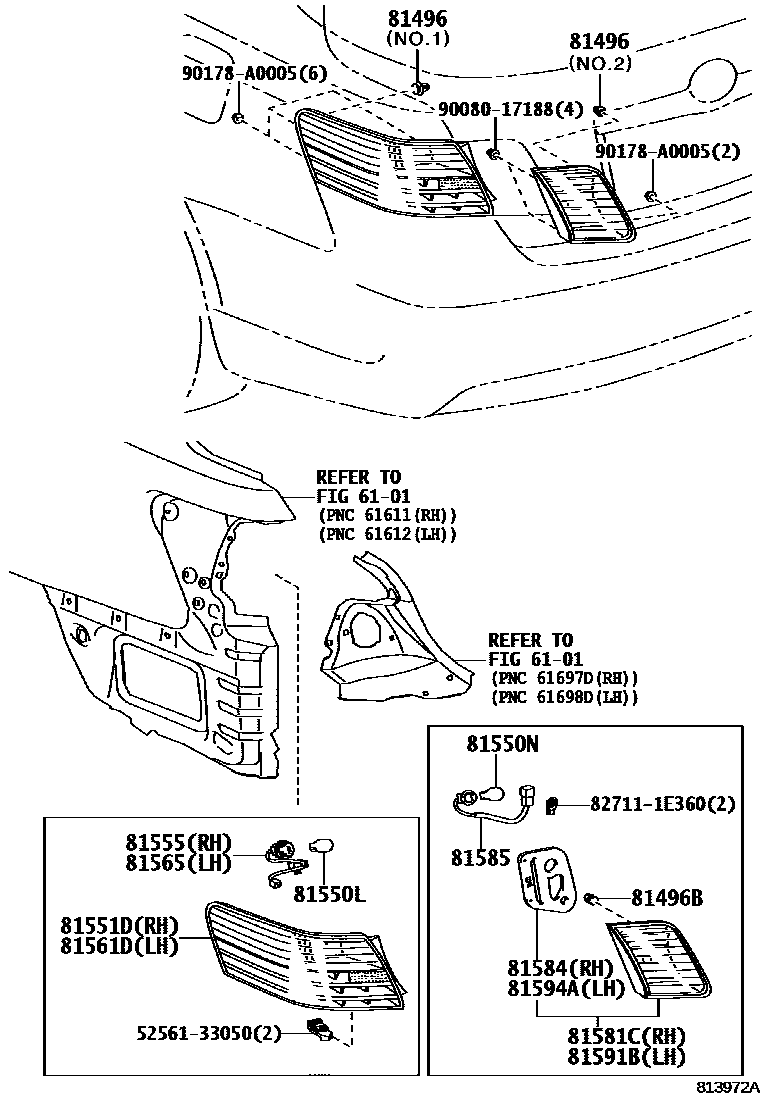

REAR COMBINATION LAMP

0001 1 0002 1

6101SIDE MEMBER

→ Go to FIG 61-01

81496GUIDE, REAR COMBINATION LAMP

main81496-33010×2iAHV40..NAP200610-200903

NO.2

main81496-60010×2iAHV40..NAP200610-200903

NO.1

81496BGUIDE, REAR LAMP

main81496-33020×2iAHV40..NAP200610-200903

81550LAMP ASSY, REAR COMBINATION, RH

main81550-06350iAHV40..NAP200903

main81550-33490iAHV40..NAP200610-200903

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021×2iAHV40..NAP200610-200903

81550NBULB, BACK UP LAMP

main90981-11059×2iAHV40..NAP200610-200903

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-33490iAHV40..NAP200610-200903

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-06350iAHV40..NAP200903

main81555-33490iAHV40..NAP200610-200903

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-33490iAHV40..NAP200610-200903

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-33490iAHV40..NAP200610-200903

main81565-06350iAHV40..NAP200903

81581CLENS AND BODY, REAR LAMP, RH

main81581-33140iAHV40..NAP200610-200903

81584PACKING, REAR LAMP RH

main81584-06230iAHV40..NAP200903

main81584-33140iAHV40..NAP200610-200903

81585SOCKET & WIRE, REAR LAMP

main81585-33140×2iAHV40..NAP200610-200903

81591BLENS AND BODY, REAR LAMP, LH

main81591-33140iAHV40..NAP200610-200903

81594AGASKET, REAR LAMP LH

main81594-06230iAHV40..NAP200903

main81594-33140iAHV40..NAP200610-200903

5256133050RETAINER, REAR BUMPER, UPPER CENTER

main52561-33050

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9008017188

main90080-17188

90178A0005

main90178-A0005

19 parts on this diagram · 2 diagrams in section
