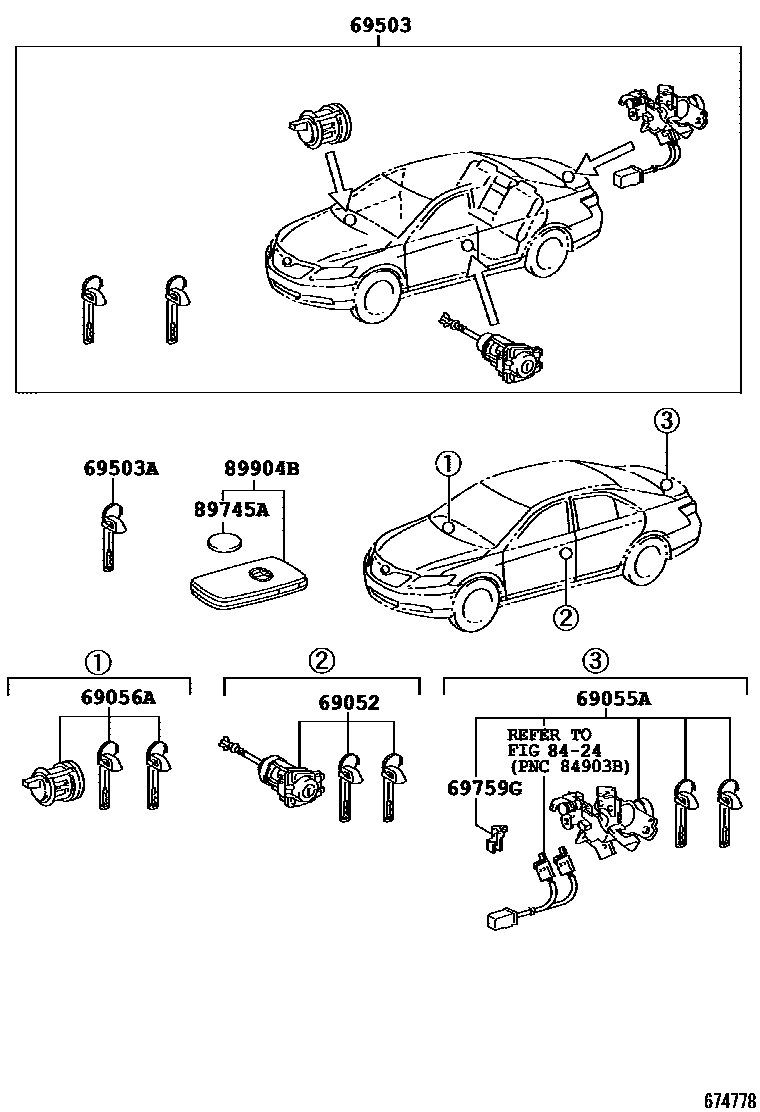

LOCK CYLINDER SET

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-33300iAHV40..NAP200610-200903

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-33460iAHV40..NAP200610-200903

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-33200iAHV40..NAP200610-200903

69503CYLINDER SET, LOCK

main69005-06450iAHV40..NAP200610-200903

69503AKEY, BLANK

main69515-52120iAHV40..NAP200610-200903

MASTER KEY,W(*68)

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-24080iAHV40..NAP200610-200903

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

89745ABATTERY, TRANSMITTER

main89745-52020×2iAHV40..NAP200610-200903

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-06041iAHV40..NAP200610-200903

main89904-06070×2iAHV40..NAP200903-201002

main89904-06130×2iAHV40..NAP201002

9 parts on this diagram · 1 diagram in section
