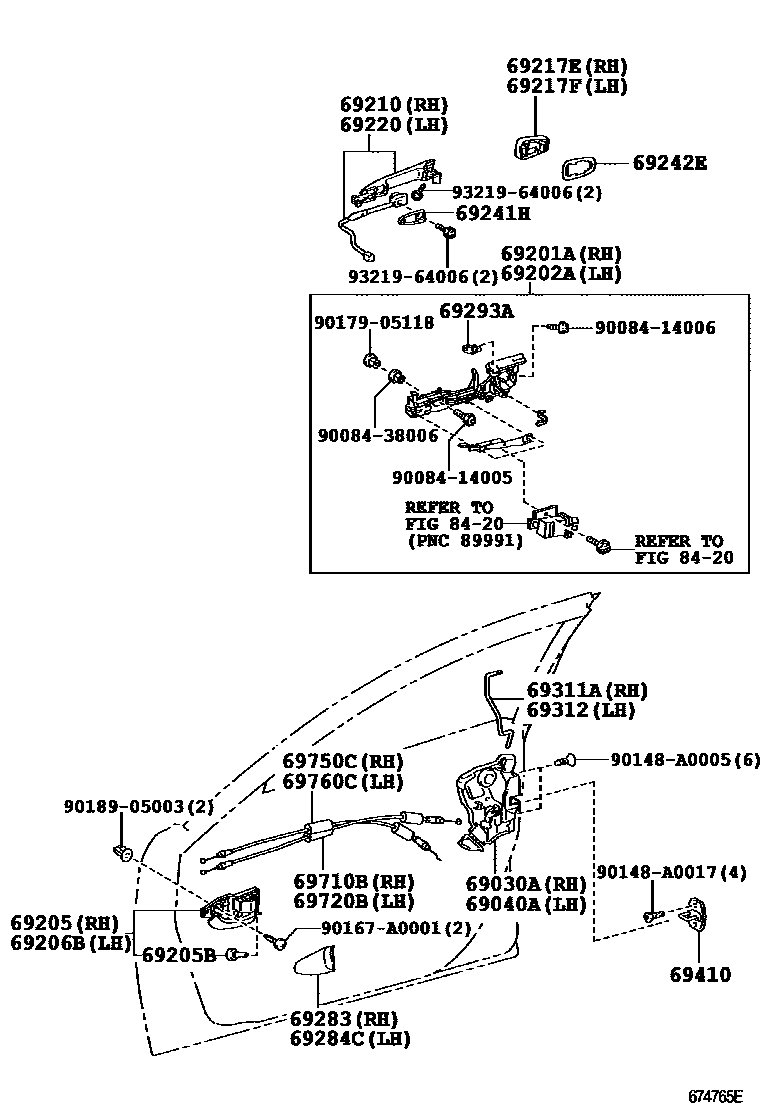

FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-06200iAHV40..NAP200610-201109

sub69030-0C050

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-06180iAHV40..NAP200610-201109

sub69040-0C050

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-06040iAHV40..NAP200610-201109

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-06040iAHV40..NAP200610-201109

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-06030-C0iAHV40..NAP200610-201109

BLACK,TRIM1#,4#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90080-54005iAHV40..NAP200610-200903

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-06030-C0iAHV40..NAP200610-201109

BLACK,TRIM1#,4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-AC060-A0iAHV40..NAP200610-200903

WHITE PEARL CS.,070

main69210-AC060-A1iAHV40..NAP200610-200903

SUPER WHITE 2,040

main69210-AC060-B0iAHV40..NAP200610-200708

SILVER ME.,1D4

main69210-AC060-B2iAHV40..NAP200610-200903

GRAY ME.,1G3

main69210-AC060-B3iAHV40..NAP200708-200903

SILVER ME.,1F7

main69210-AC060-C0iAHV40..NAP200610-200903

BLACK,202

main69210-AC060-D1iAHV40..NAP200610-200903

RED M.M.,3R3

main69210-AC060-E0iAHV40..NAP200610-200903

BEIGE M. M.,4Q2

main69210-AC060-E1iAHV40..NAP200903

BEIGE ME.,4T8

main69210-AC060-G1iAHV40..NAP200610-200903

LT.GREEN ME.,6U6

main69210-AC060-G2iAHV40..NAP200903

DK.GREEN MC.,6V4

main69210-AC060-H0iAHV40..NAP200610-200903

TURQUOISE M.M.,776

main69210-AC060-J2iAHV40..NAP200610-200903

LT.BLUE ME.,8S4

main69210-AC060-J3iAHV40..NAP200610-200903

DK.BLUE MC.,8T5

main69210-AC060-J4iAHV40..NAP200903

LIGHT BLUE MICA METALLIC,8U8

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-0E010-A1iAHV40..NAP200610-200903

WHITE PEARL CS.,070

main69217-0E010-A2iAHV40..NAP200610-201109

SUPER WHITE 2,040

main69217-0E010-B2iAHV40..NAP200610-200708

SILVER ME.,1D4

main69217-0E010-B4iAHV40..NAP200610-201109

GRAY ME.,1G3

main69217-0E010-B5iAHV40..NAP200708-201109

SILVER ME.,1F7

main69217-0E010-C0iAHV40..NAP200610-201109

BLACK,202

main69217-0E010-D1iAHV40..NAP200610-201109

RED M.M.,3R3

main69217-0E010-E1iAHV40..NAP200610-200903

BEIGE M. M.,4Q2

main69217-0E010-E2iAHV40..NAP200903-201109

BEIGE ME.,4T8

main69217-0E010-G3iAHV40..NAP200610-200903

LT.GREEN ME.,6U6

main69217-0E010-G5iAHV40..NAP200903-201109

DK.GREEN MC.,6V4

main69217-0E010-H0iAHV40..NAP200610-201109

TURQUOISE M.M.,776

main69217-0E010-J5iAHV40..NAP200610-200903

LT.BLUE ME.,8S4

main69217-0E010-J6iAHV40..NAP200610-201109

DK.BLUE MC.,8T5

main69217-0E010-J9iAHV40..NAP200903-201109

LIGHT BLUE MICA METALLIC,8U8

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69217-AE020-A3iAHV40..NAP200610-201109

SUPER WHITE 2,040

main69217-AE020-A4iAHV40..NAP200610-200903

WHITE PEARL CS.,070

main69217-AE020-B5iAHV40..NAP200610-200708

SILVER ME.,1D4

main69217-AE020-B7iAHV40..NAP200610-201109

GRAY ME.,1G3

main69217-AE020-B8iAHV40..NAP200708-201109

SILVER ME.,1F7

main69217-AE020-C0iAHV40..NAP200610-201109

BLACK,202

main69217-AE020-D4iAHV40..NAP200610-201109

RED M.M.,3R3

main69217-AE020-E0iAHV40..NAP200610-200903

BEIGE M. M.,4Q2

main69217-AE020-E3iAHV40..NAP200903-201109

BEIGE ME.,4T8

main69217-AE020-G4iAHV40..NAP200610-200903

LT.GREEN ME.,6U6

main69217-AE020-G7iAHV40..NAP200903-201109

DK.GREEN MC.,6V4

main69217-AE020-H0iAHV40..NAP200610-201109

TURQUOISE M.M.,776

main69217-AE020-J8iAHV40..NAP200610-200903

LT.BLUE ME.,8S4

main69217-AE020-J9iAHV40..NAP200610-201109

DK.BLUE MC.,8T5

main69217-AE020-R2iAHV40..NAP200903-201109

LIGHT BLUE MICA METALLIC,8U8

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-AC060-A0iAHV40..NAP200610-200903

WHITE PEARL CS.,070

main69210-AC060-A1iAHV40..NAP200610-200903

SUPER WHITE 2,040

main69210-AC060-B0iAHV40..NAP200610-200708

SILVER ME.,1D4

main69210-AC060-B2iAHV40..NAP200610-200903

GRAY ME.,1G3

main69210-AC060-B3iAHV40..NAP200708-200903

SILVER ME.,1F7

main69210-AC060-C0iAHV40..NAP200610-200903

BLACK,202

main69210-AC060-D1iAHV40..NAP200610-200903

RED M.M.,3R3

main69210-AC060-E0iAHV40..NAP200610-200903

BEIGE M. M.,4Q2

main69210-AC060-E1iAHV40..NAP200903

BEIGE ME.,4T8

main69210-AC060-G1iAHV40..NAP200610-200903

LT.GREEN ME.,6U6

main69210-AC060-G2iAHV40..NAP200903

DK.GREEN MC.,6V4

main69210-AC060-H0iAHV40..NAP200610-200903

TURQUOISE M.M.,776

main69210-AC060-J2iAHV40..NAP200610-200903

LT.BLUE ME.,8S4

main69210-AC060-J3iAHV40..NAP200610-200903

DK.BLUE MC.,8T5

main69210-AC060-J4iAHV40..NAP200903

LIGHT BLUE MICA METALLIC,8U8

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-AE010iAHV40..NAP200610-201109

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-AC031iAHV40..NAP200610-201109

sub69242-04010

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-06010-C0iAHV40..NAP200610-201109

BLACK,TRIM1#,4#

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-06010-C0iAHV40..NAP200610-201109

BLACK,TRIM1#,4#

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iAHV40..NAP200610-201109

RH

main69293-12040iAHV40..NAP200610-201109

LH

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-06050iAHV40..NAP200610-200903

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-06050iAHV40..NAP200610-200903

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-AA030iAHV40..NAP200610-200903

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-06050iAHV40..NAP200610-200903

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-06050iAHV40..NAP200610-200903

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-06040iAHV40..NAP200610-200903

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-06040iAHV40..NAP200610-200903

8420

9008414005

main90084-14005

9008414006

main90084-14006

9008438006

main90084-38006

90148A0005

main90148-A0005

90148A0017

main90148-A0017

90167A0001

main90167-A0001

9017905118

main90179-05118

9018905003

main90189-05003

9321964006

main93219-64006

33 parts on this diagram · 1 diagram in section
