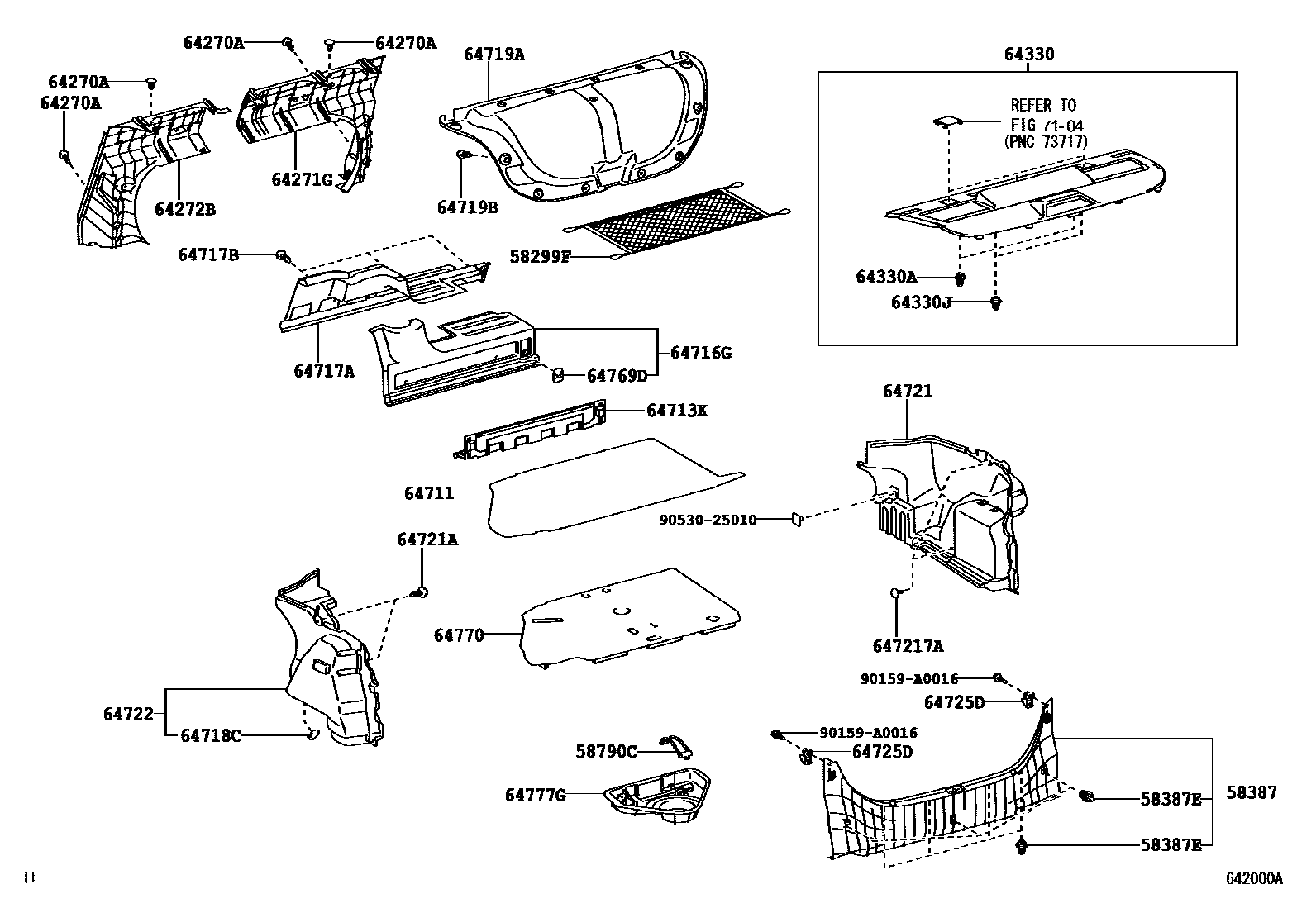

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58299FNET, BAGGAGE HOLDER
58387PLATE, REAR FLOOR FINISH
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
58790CCARRIER ASSY, JACK
64270ACLIP(FOR ROOM PARTITION BOARD SETTING)
64271GBOARD, ROOM PARTITION, RH
64272BBOARD, ROOM PARTITION, LH
64330PANEL ASSY, PACKAGE TRAY TRIM
GRAY,TRIM1#
GREGE,TRIM4#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)
64711MAT, LUGGAGE COMPARTMENT FLOOR
BLACK,TRIM1#,4#
64713KCOVER, LUGGAGE COMPARTMENT TRIM, FRONT UPPER
BLACK,TRIM1#,4#
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
BLACK,TRIM1#,4#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM1#,4#
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
64718CCOVER, LUGGAGE TRIM SERVICE HOLE
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM1#,4#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM1#,4#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM1#,4#
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM1#,4#
BLACK
64769DKNOB, JACK COVER
64770COVER ASSY, SPARE WHEEL
64777GCUSHION, SPARE WHEEL
7104
90159A0016
main90159-A0016
9053025010
main90530-25010
28 parts on this diagram · 1 diagram in section
