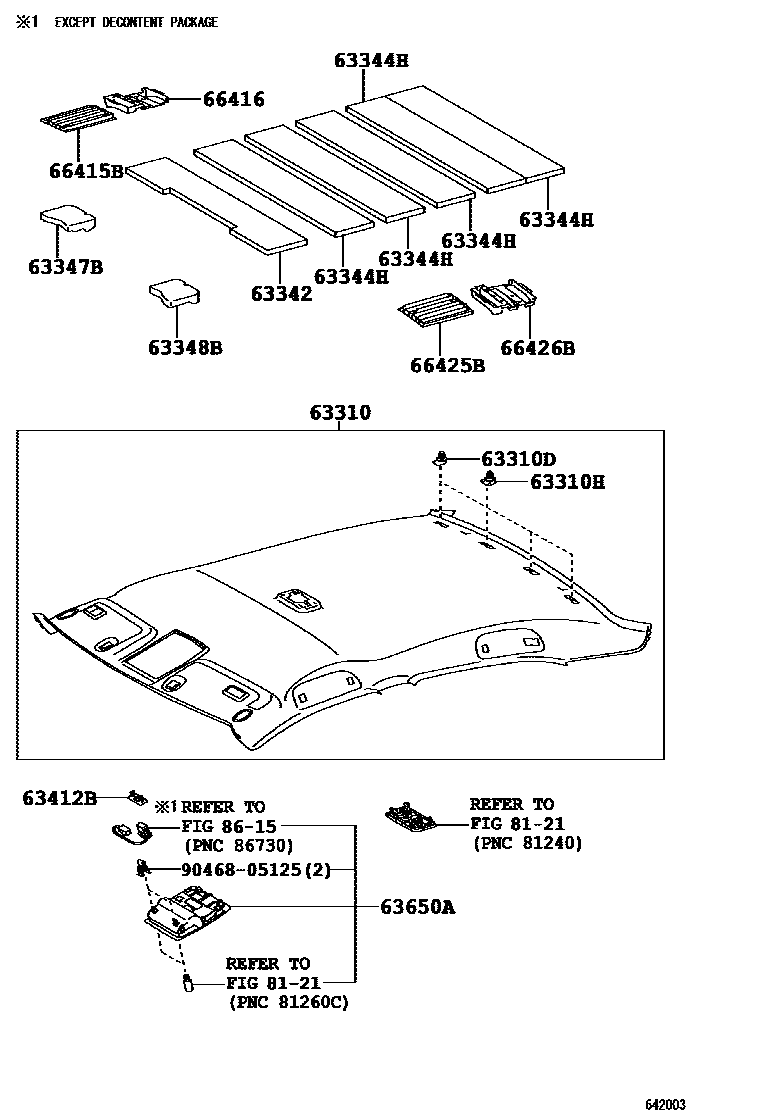

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1W(MOON ROOF)

63310HEADLINING ASSY, ROOF

main63310-06320-B0supersedes 63310-06661-B0iAHV40..NAP200610-200706

MOON ROOF-WITH,MD. GRAY,TRIM1#

main63310-06320-E0supersedes 63310-06661-E0iAHV40..NAP200610-200706

MOON ROOF-WITH,GREGE,TRIM4#

main63310-06321-B0supersedes 63310-06661-B0iAHV40..NAP200706-200803

MOON ROOF-WITH,MD. GRAY,TRIM1#

main63310-06321-E0supersedes 63310-06661-E0iAHV40..NAP200706-200803

MOON ROOF-WITH,GREGE,TRIM4#

main63310-06322-B0supersedes 63310-06661-B0iAHV40..NAP200804-200903

MOON ROOF-WITH,MD. GRAY,TRIM1#

main63310-06322-E0supersedes 63310-06661-E0iAHV40..NAP200804-200903

MOON ROOF-WITH,GREGE,TRIM4#

main63310-06671-B0supersedes 63310-06661-B0iAHV40..NAP200903-201109

MOON ROOF-WITH,MD. GRAY,TRIM1#

main63310-06671-E0supersedes 63310-06661-E0iAHV40..NAP200903-201109

MOON ROOF-WITH,GREGE,TRIM4#

63310DCLIP, ROOF HEADLINING

main90467-09126×3iAHV40..NAP200610-200903

63310HCLIP(FOR ROOF HEADLINING)

main90467-10181iAHV40..NAP200610-200903

63342PAD, ROOF SILENCER, NO.2

main63342-06050iAHV40..NAP200610-200903

63344HPAD, ROOF SILENCER, NO.4

main63344-06060×5iAHV40..NAP200610-200903

63347BPAD, ROOF SIDE RAIL SILENCER, RH

main63347-06020iAHV40..NAP200610-200903

63348BPAD, ROOF SIDE RAIL SILENCER, LH

main63348-06020iAHV40..NAP200610-200903

63412BRETAINER, ROOF CONSOLE

main63412-33010iAHV40..NAP200610-200903

63650ABOX ASSY, ROOF CONSOLE

main63650-06030-B0supersedes 63650-06290-B0iAHV40..NAP200610-200801

DECONTENT PACKAGE&AUDIO-WITH(CD TUNER & 6SPEAKER),GRAY,TRIM1#

main63650-06030-E0supersedes 63650-06290-E0iAHV40..NAP200610-200801

DECONTENT PACKAGE&AUDIO-WITH(CD TUNER & 6SPEAKER),GREGE,TRIM4#

main63650-06031-B0supersedes 63650-06061-B0iAHV40..NAP200802-200903

DECONTENT PACKAGE&AUDIO-WITH(CD TUNER & 6SPEAKER),GRAY,TRIM1#

main63650-06031-E0supersedes 63650-06061-E0iAHV40..NAP200802-200903

DECONTENT PACKAGE&AUDIO-WITH(CD TUNER & 6SPEAKER),GREGE,TRIM4#

main63650-06080-B0supersedes 63650-06290-B0iAHV40..NAP200610-200801

DECONTENT PACKAGE&MOON ROOF-WITH&AUDIO-WITH(CD TUNER & 6SPEAKER),GRAY,TRIM1#

main63650-06080-E0supersedes 63650-06290-E0iAHV40..NAP200610-200801

DECONTENT PACKAGE&MOON ROOF-WITH&AUDIO-WITH(CD TUNER & 6SPEAKER),GREGE,TRIM4#

main63650-06081-B0supersedes 63650-06061-B0iAHV40..NAP200802-200903

DECONTENT PACKAGE&MOON ROOF-WITH&AUDIO-WITH(CD TUNER & 6SPEAKER),GRAY,TRIM1#

main63650-06081-E0supersedes 63650-06061-E0iAHV40..NAP200802-200903

DECONTENT PACKAGE&MOON ROOF-WITH&AUDIO-WITH(CD TUNER & 6SPEAKER),GREGE,TRIM4#

main63650-06120-B0supersedes 63650-06290-B0iAHV40..NAP200610-200801

MOON ROOF-WITH,GRAY,TRIM1#

main63650-06120-E0supersedes 63650-06290-E0iAHV40..NAP200610-200801

MOON ROOF-WITH,GREGE,TRIM4#

main63650-06121-B0supersedes 63650-06061-B0iAHV40..NAP200802-200903

MOON ROOF-WITH,GRAY,TRIM1#

main63650-06121-E0supersedes 63650-06061-E0iAHV40..NAP200802-200903

MOON ROOF-WITH,GREGE,TRIM4#

main63650-06310-B0supersedes 63650-06290-B0iAHV40..NAP200903-201109

MOON ROOF-WITH,GRAY,TRIM1#

main63650-06310-E0supersedes 63650-06290-E0iAHV40..NAP200903-201109

MOON ROOF-WITH,GREGE,TRIM4#

66415BSPACER, SIDE RAIL, REAR NO.2 RH

main66415-06100supersedes 66415-06010iAHV40..NAP200610-200903

MOON ROOF-WITH

66416SPACER, SIDE RAIL, REAR NO.3 RH

main66416-06010iAHV40..NAP200610-200903

66425BSPACER, SIDE RAIL, REAR NO.2 LH

main66415-06100supersedes 66425-06010iAHV40..NAP200610-200903

MOON ROOF-WITH

66426BSPACER, SIDE RAIL, REAR NO.3 LH

main66426-06010iAHV40..NAP200610-200903

8121INTERIOR LAMP

→ Go to FIG 81-21

8615TELEPHONE & MAYDAY

→ Go to FIG 86-15

9046805125

main90468-05125

16 parts on this diagram · 3 diagrams in section
