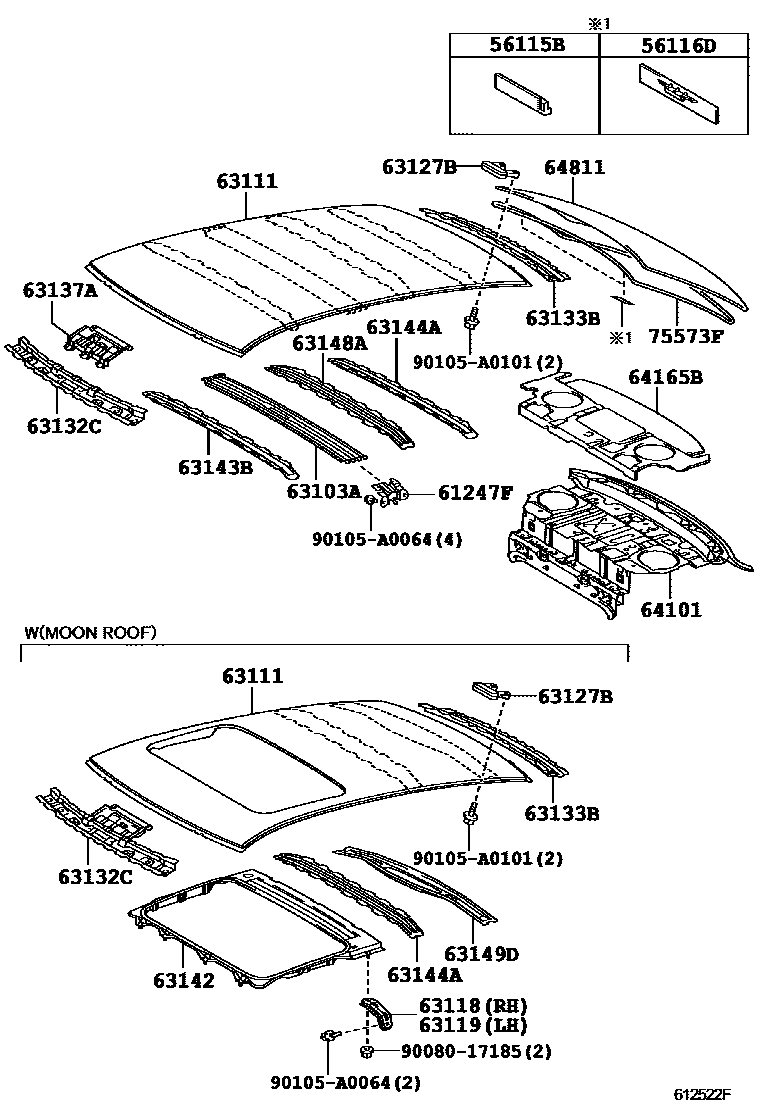

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1W(MOON ROOF)

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30120iAHV40..NAP200610-200903

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050iAHV40..NAP200610-200903

61247FREINFORCEMENT, ROOF SIDE RAIL, INNER

main61247-06020×2iAHV40..NAP200610-200903

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-06010iAHV40..NAP200610-200903

63111PANEL, ROOF

main63111-06310supersedes 63111-06420iAHV40..NAP200610-200903

MOON ROOF-WITH

main63111-06430supersedes 63111-06420iAHV40..NAP200903

MOON ROOF-WITH

63118SUPPORT, ROOF PANEL, RH

main63118-06020iAHV40..NAP200610-200903

MOON ROOF-WITH

63119SUPPORT, ROOF PANEL, LH

main63118-06020iAHV40..NAP200610-200903

MOON ROOF-WITH

63127BDAMPER, BACK WINDOW UPPER FREME

main63127-06060iAHV40..NAP200610-200903

63132CPANEL, WINDSHIELD HEADER, INNER

main63132-06040iAHV40..NAP200610-200903

63133BFRAME, BACK WINDOW

main63133-06040iAHV40..NAP200610-200903

63137ABRACKET, DOME LAMP, NO.1

main63137-06030iAHV40..NAP200610-200903

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-06040iAHV40..NAP200610-200903

MOON ROOF-WITH

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-06030iAHV40..NAP200610-200903

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-06070supersedes 63144-06060iAHV40..NAP200903

MOON ROOF-WITH

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-06030iAHV40..NAP200610-200903

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63149-06010iAHV40..NAP200903

MOON ROOF-WITH

64101PANEL SUB-ASSY, UPPER BACK

main64101-06220iAHV40..NAP200610-200903

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-06040iAHV40..NAP200610-200903

64811GLASS, BACK WINDOW

main64801-06020iAHV40..NAP200610-200903

*TT,T=3.5,GREEN

main64801-06021iAHV40..NAP200910

*TT,T=3.5,GREEN

75573FMOULDING, BACK WINDOW, OUTSIDE

main75573-06020iAHV40..NAP200610-200903

9008017185

main90080-17185

90105A0064

main90105-A0064

90105A0101

main90105-A0101

23 parts on this diagram · 2 diagrams in section
