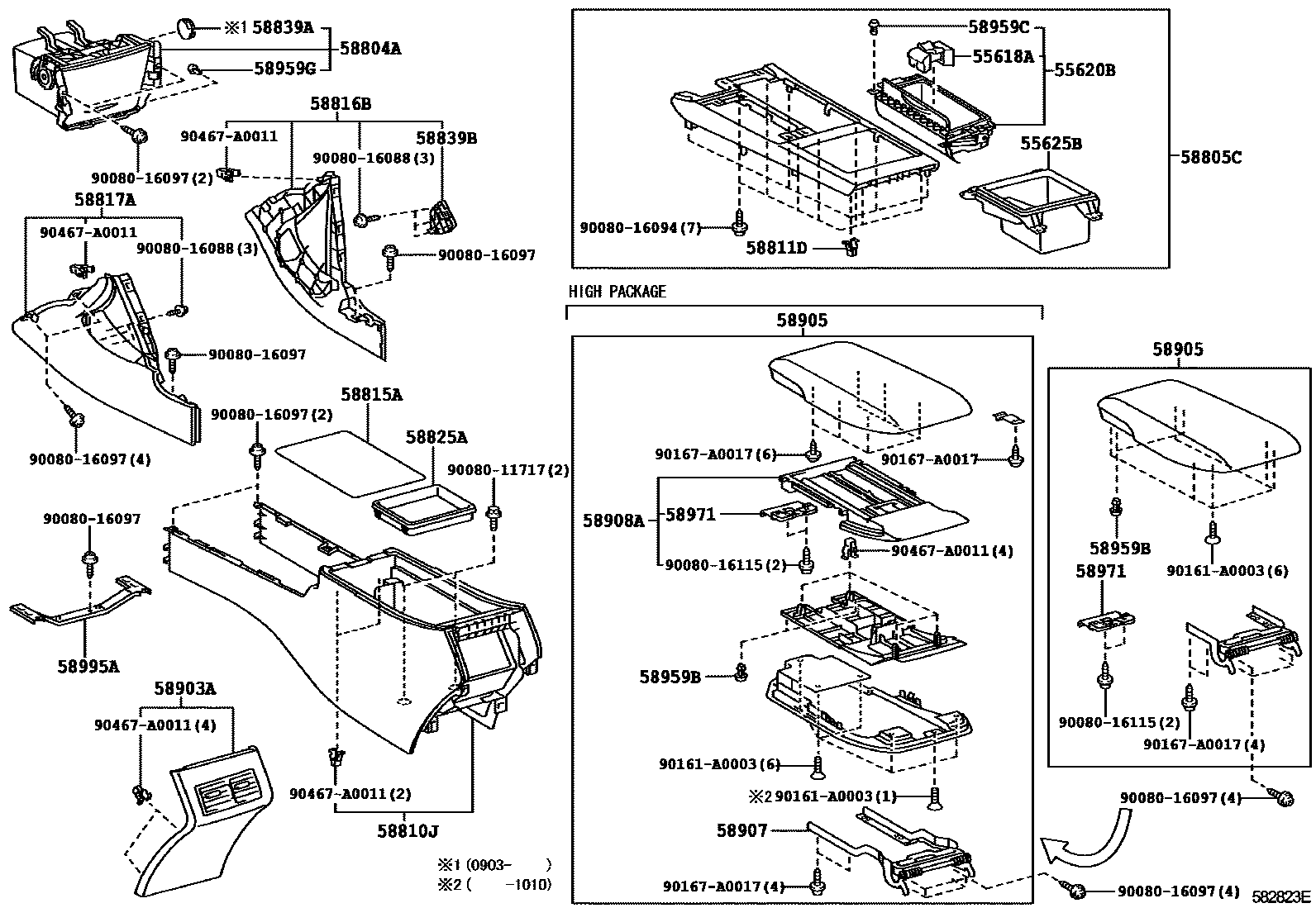

CONSOLE BOX & BRACKET
55618AHOLDER, CONSOLE BOX CUP
55620BHOLDER, INSTRUMENT PANEL CUP
55625BTRAY, INSTRUMENT PANEL CUP HOLDER
58804APANEL SUB-ASSY, CONSOLE, UPPER
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
GRAY,TRIM1#
GREGE,TRIM4#
GRAY,TRIM1#
GREGE,TRIM4#
58810JBOX ASSY, CONSOLE
GRAY,TRIM1#
GREGE,TRIM4#
58811DCLIP(FOR CONSOLE BOX)
58815ACARPET, CONSOLE BOX
58816BINSERT, CONSOLE BOX
GRAY,TRIM1#
GREGE,TRIM4#
GRAY,TRIM1#
GREGE,TRIM4#
58817AINSERT, CONSOLE BOX, FRONT NO.2
GRAY,TRIM1#
GREGE,TRIM4#
GRAY,TRIM1#
GREGE,TRIM4#
58825APOCKET, CONSOLE BOX
58839ACOVER, CONSOLE BOX HOLE
58839BCOVER, CONSOLE BOX HOLE, NO.2
GRAY,TRIM1#
GREGE,TRIM4#
GRAY,TRIM1#
GREGE,TRIM4#
58903APANEL SUB-ASSY, CONSOLE REAR END
GRAY,TRIM1#
GREGE,TRIM4#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
GRAY,TRIM1#
GREGE,TRIM4#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58907-06020
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58959CCUSHION, CONSOLE COMPARTMENT DOOR
58959GCUSHION, CONSOLE COMPARTMENT DOOR
58971LOCK, CONSOLE COMPARTMENT DOOR
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
9008011717
main90080-11717
9008016088
main90080-16088
9008016094
main90080-16094
9008016097
main90080-16097
9008016115
main90080-16115
90161A0003
main90161-A0003
90167A0017
main90167-A0017
90467A0011
main90467-A0011
30 parts on this diagram · 1 diagram in section
