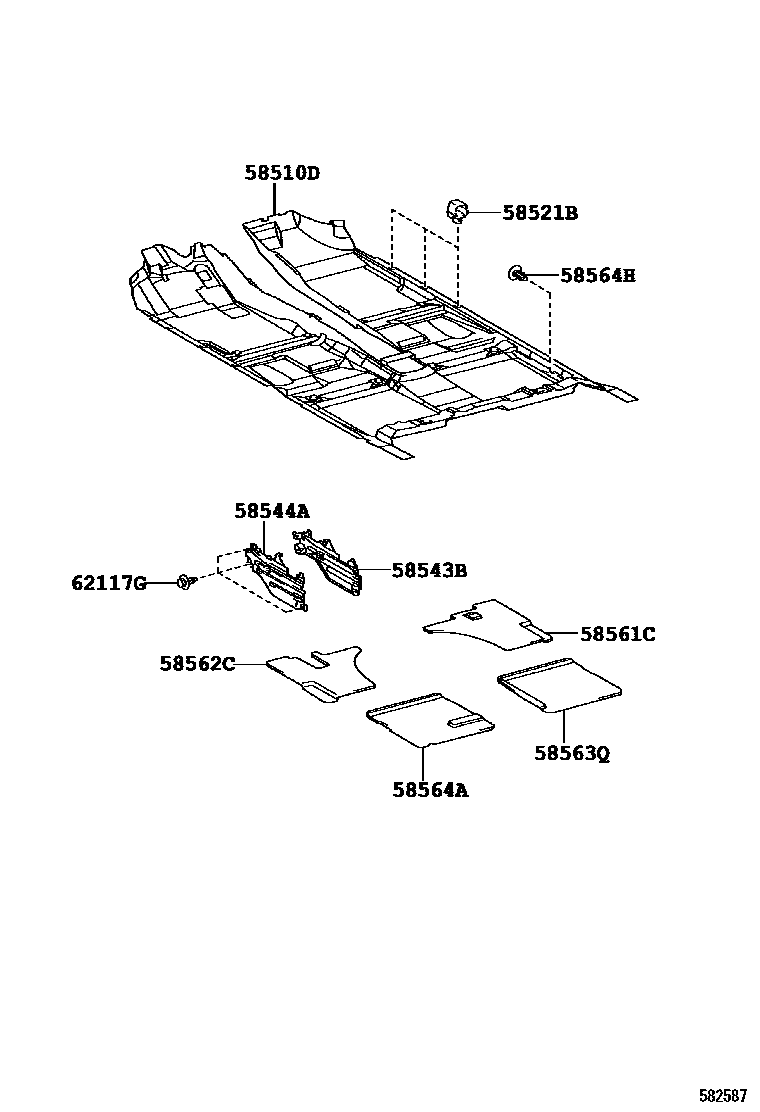

MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-06260-B2iAHV40..NAP200610-200903

MD. GRAY,TRIM1#

main58510-06260-E1iAHV40..NAP200610-200903

GREGE,TRIM4#

main58510-06381-B0iAHV40..NAP200903-200912

MD. GRAY,TRIM1#

main58510-06381-E0iAHV40..NAP200903-200912

GREGE,TRIM4#

main58510-06382-B0iAHV40..NAP201001-201011

MD. GRAY,TRIM1#

main58510-06382-E0iAHV40..NAP201001-201011

GREGE,TRIM4#

main58510-06383-B0iAHV40..NAP201012-201109

MD. GRAY,TRIM1#

main58510-06383-E0iAHV40..NAP201012-201109

GREGE,TRIM4#

58521BHOOK, FLOOR CARPET

main58521-06050×6iAHV40..NAP200610-200903

58543BBRACKET, FLOOR CARPET, RH

main58543-06020iAHV40..NAP200610-200903

58544ABRACKET, FLOOR CARPET, LH

main58544-06020iAHV40..NAP200610-200903

58561CSILENCER, FRONT FLOOR, NO.1

main58561-06040iAHV40..NAP200610-200903

58562CSILENCER, FRONT FLOOR, NO.2

main58562-06040iAHV40..NAP200610-200903

58563QSILENCER, FRONT FLOOR, NO.3

main58563-06030iAHV40..NAP200610-200903

58564ASILENCER, FRONT FLOOR, NO.4

main58564-06030iAHV40..NAP200610-200903

58564HCLIP(FOR REAR FLOOR CARPET)

main90467-05164-C0×2iAHV40..NAP200610-200903

BLACK

62117GCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-A0016-C0×6iAHV40..NAP200610-200903

BLACK

10 parts on this diagram · 1 diagram in section
