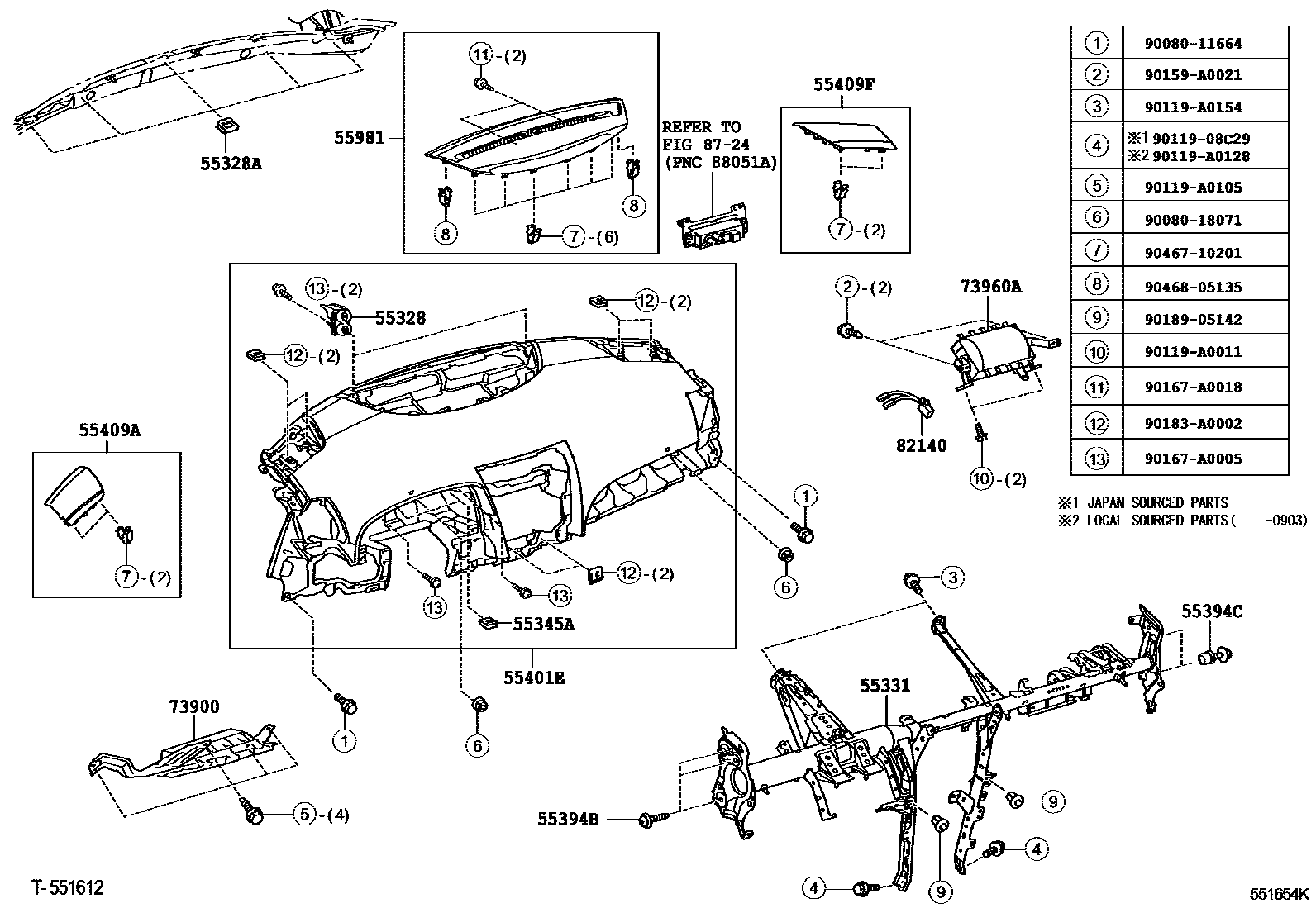

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55328PIN, INSTRUMENT PANEL, NO.1

main55328-30140×2iAHV40..NAP200610-200903

55328ASTAY, INSTRUMENT PANEL, NO.3

main55328-30160×5iAHV40..NAP200610-200705

main55328-50170×5iAHV40..NAP200706-200903

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-06140iAHV40..NAP200610-200803

main55330-06141iAHV40..NAP200804-200903

main55330-06270iAHV40..NAP200903

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-12060×2iAHV40..NAP200610-200903

55394BBOLT, INSTRUMENT PANEL

main55394-30021×3iAHV40..NAP200610-200903

55394CBOLT, INSTRUMENT PANEL

main55394-33041×2iAHV40..NAP200610-200903

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-06170-B0iAHV40..NAP200610-200903

MD.GRAY,TRIM1#

main55401-06170-E0iAHV40..NAP200610-200903

ASH BROWN,TRIM4#

main55401-06171-B0iAHV40..NAP200908-201109

MD.GRAY,TRIM1#

main55401-06171-E0iAHV40..NAP200908-201109

ASH BROWN,TRIM4#

55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER

main55472-06020-B1iAHV40..NAP200903-201109

MD.GRAY,TRIM1#

main55472-06020-E0iAHV40..NAP200610-200903

ASH BROWN,TRIM4#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55473-06020-B1iAHV40..NAP200610-200903

MD.GRAY,TRIM1#

main55473-06020-E0iAHV40..NAP200903-201109

ASH BROWN,TRIM4#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-06040-B1iAHV40..NAP200903-201109

MD.GRAY,TRIM1#

main55981-06040-E0iAHV40..NAP200610-200903

ASH BROWN,TRIM4#

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-06010-B1iAHV40..NAP200610-200903

GRAY,TRIM1#

main73900-06010-E0iAHV40..NAP200610-200903

GREGE,TRIM4#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-06080iAHV40..NAP200610-200903

main73960-06150iAHV40..NAP200903

82140WIRE ASSY, INSTRUMENT PANEL

main82140-06010iAHV40..NAP200610-200903

8724AIR PURIFIER OR ION GENERATOR

→ Go to FIG 87-24

9008011664

main90080-11664

9008018071

main90080-18071

9011908C29

main90119-08C29

90119A0011

main90119-A0011

90119A0105

main90119-A0105

90119A0128

main90119-A0128

90119A0154

main90119-A0154

90159A0021

main90159-A0021

90167A0005

main90167-A0005

90167A0018

main90167-A0018

90183A0002

main90183-A0002

9018905142

main90189-05142

9046710201

main90467-10201

9046805135

main90468-05135

28 parts on this diagram · 4 diagrams in section
