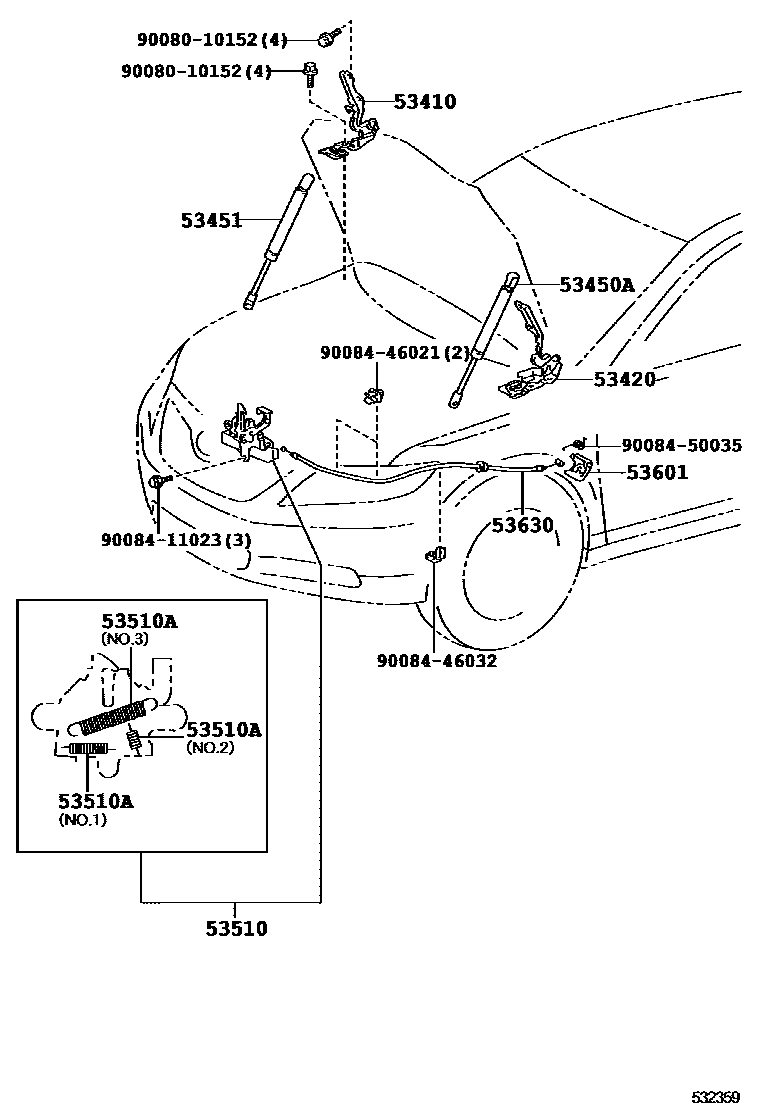

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-06090iAHV40..NAP200610-200903

53420HINGE ASSY, HOOD, LH

main53420-06060iAHV40..NAP200610-200903

53450ASUPPORT ASSY, HOOD, LH

main53450-06040iAHV40..NAP200610-200903

main53450-06041iAHV40..NAP201010

53451ROD, HOOD SUPPORT

main53440-06050iAHV40..NAP200610-200903

main53440-06051iAHV40..NAP201010

53510LOCK ASSY, HOOD

main53510-06180iAHV40..NAP200610-200903

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iAHV40..NAP200610-200903

WD=0.9,CW=21,NO.1

main90506-12063iAHV40..NAP200903

WD=1.2,CW=8.5,NO.2

main90506-18067iAHV40..NAP200610-200903

WD=1.8,CW=13,NO.3

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53611-AA010-B5iAHV40..NAP200610-200903

GRAY,TRIM1#

main53611-AA010-E1iAHV40..NAP200610-200903

GREGE,TRIM4#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-06100iAHV40..NAP200610-200903

9008010152

main90080-10152

9008411023

main90084-11023

9008446021

main90084-46021

9008446032

main90084-46032

9008450035

main90084-50035

13 parts on this diagram · 1 diagram in section
