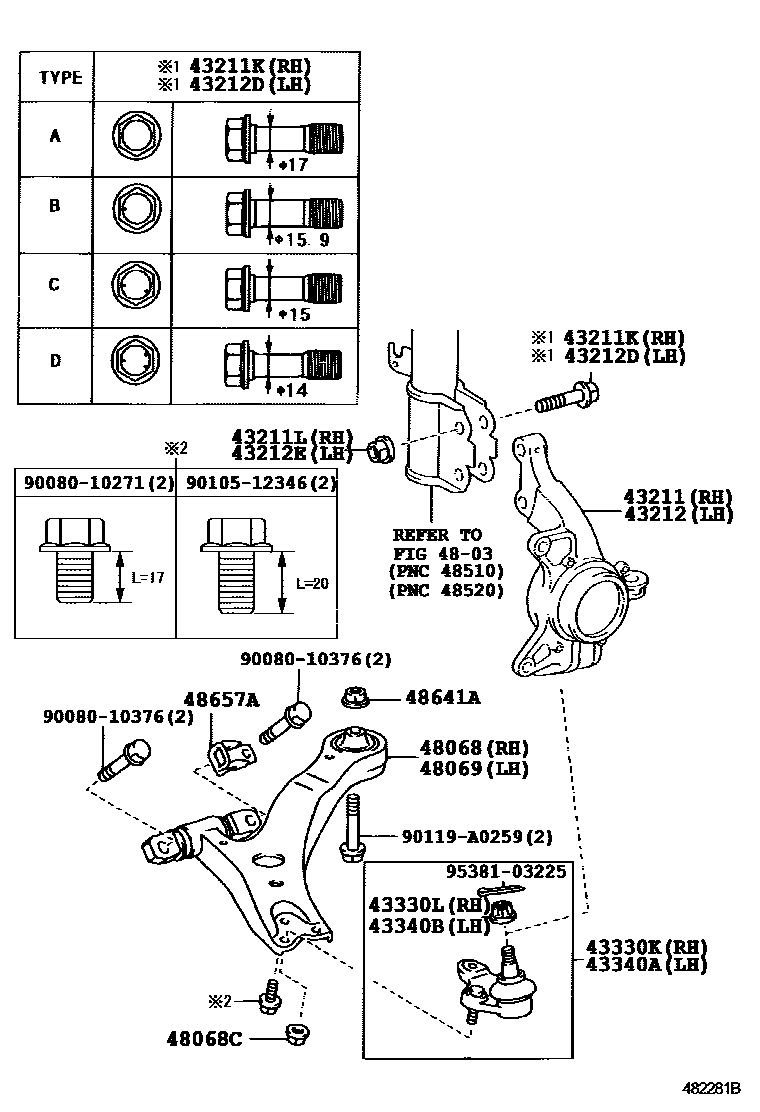

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-AA010iAHV40..NAP200903

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17013iAHV40..NAP200903

OD=15.9,TYPE B:REFER ILLUST.

main90105-17014iAHV40..NAP200903

OD=15,TYPE C:REFER ILLUST.

main90105-17015iAHV40..NAP200610-200903

OD=14,TYPE D:REFER ILLUST.

main90105-A0052×2iAHV40..NAP200903

OD=17,TYPE A:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-A0027×2iAHV40..NAP200903

43212KNUCKLE, STEERING, LH

main43212-AA010iAHV40..NAP200610-200903

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17013iAHV40..NAP200903

OD=15.9,TYPE B:REFER ILLUST.

main90105-17014iAHV40..NAP200903

OD=15,TYPE C:REFER ILLUST.

main90105-17015iAHV40..NAP200610-200903

OD=14,TYPE D:REFER ILLUST.

main90105-A0052×2iAHV40..NAP200903

OD=17,TYPE A:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-A0027×2iAHV40..NAP200610-200903

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09330iAHV40..NAP200610-200903

sub43330-09810

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90080-17214iAHV40..NAP200610-200903

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-09040iAHV40..NAP200610-200903

sub43340-09170

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90080-17214iAHV40..NAP200610-200903

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-06150iAHV40..NAP200610-200903

48068CNUT(FOR FRONT SUSPENSION LOWER ARM)

main90178-A0019×4iAHV40..NAP200610-200903

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-06150iAHV40..NAP200610-200903

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90080-17223×2iAHV40..NAP200610-200903

48657ASTOPPER, FRONT LOWER ARM BUSH

main48657-06010×2iAHV40..NAP200610-200903

(L)

main48657-28010×2iAHV40..NAP200903

(J)

9008010271

main90080-10271

9008010376

main90080-10376

9010512346

main90105-12346

90119A0259

main90119-A0259

9538103225

main95381-03225

21 parts on this diagram · 1 diagram in section
