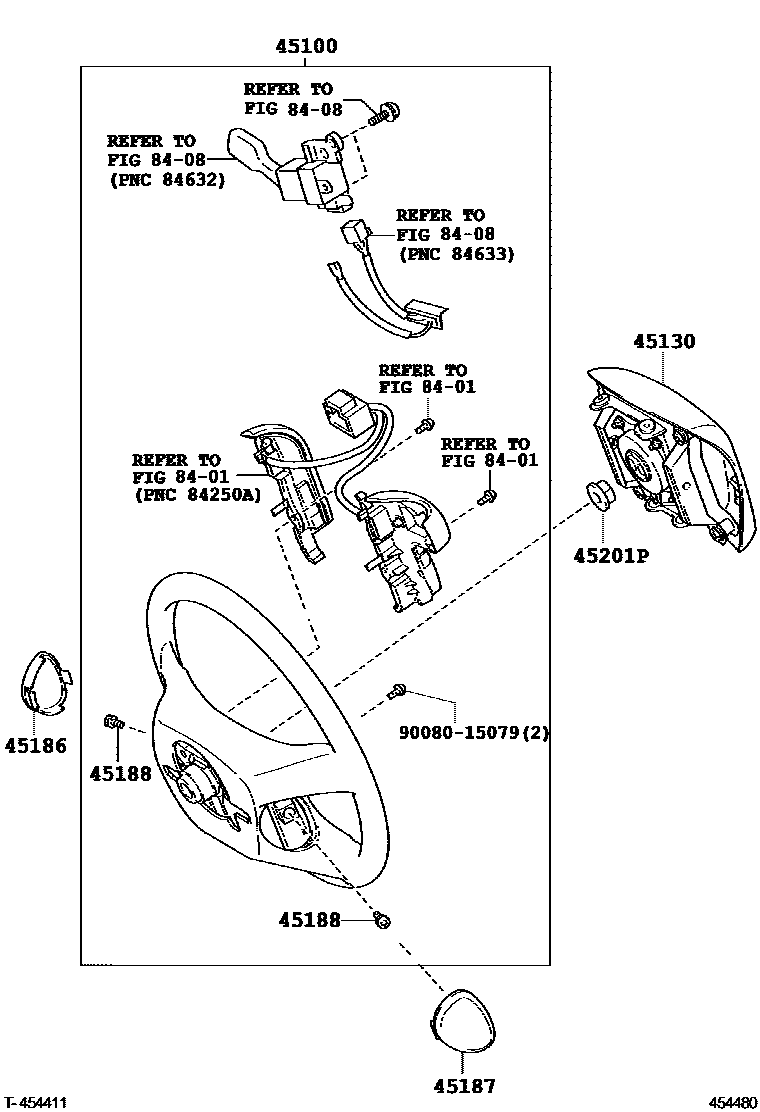

STEERING WHEEL
45100WHEEL ASSY, STEERING
4-SPOKE,URETHANE,AUDIO-WITH(CD TUNER & 6SPEAKER),MD.GRAY,TRIM1#
4-SPOKE,URETHANE,AUDIO-WITH(CD TUNER & 6SPEAKER),ASH BROWN,TRIM4#
45130BUTTON ASSY, HORN
MD.GRAY,TRIM1#
ASH BROWN,TRIM4#
45186COVER, STEERING WHEEL, LOWER NO.2
MD.GRAY,TRIM1#
ASH BROWN,TRIM4#
45187COVER, STEERING WHEEL, LOWER NO.3
MD.GRAY,TRIM1#
ASH BROWN,TRIM4#
45188SCREW, STEERING WHEEL PAD ATTACHING
L=18.5
45201PNUT, STEERING WHEEL SET
8401SWITCH & RELAY & COMPUTER
8408CRUISE CONTROL (AUTO DRIVE)
9008015079
main90080-15079
9 parts on this diagram · 1 diagram in section
