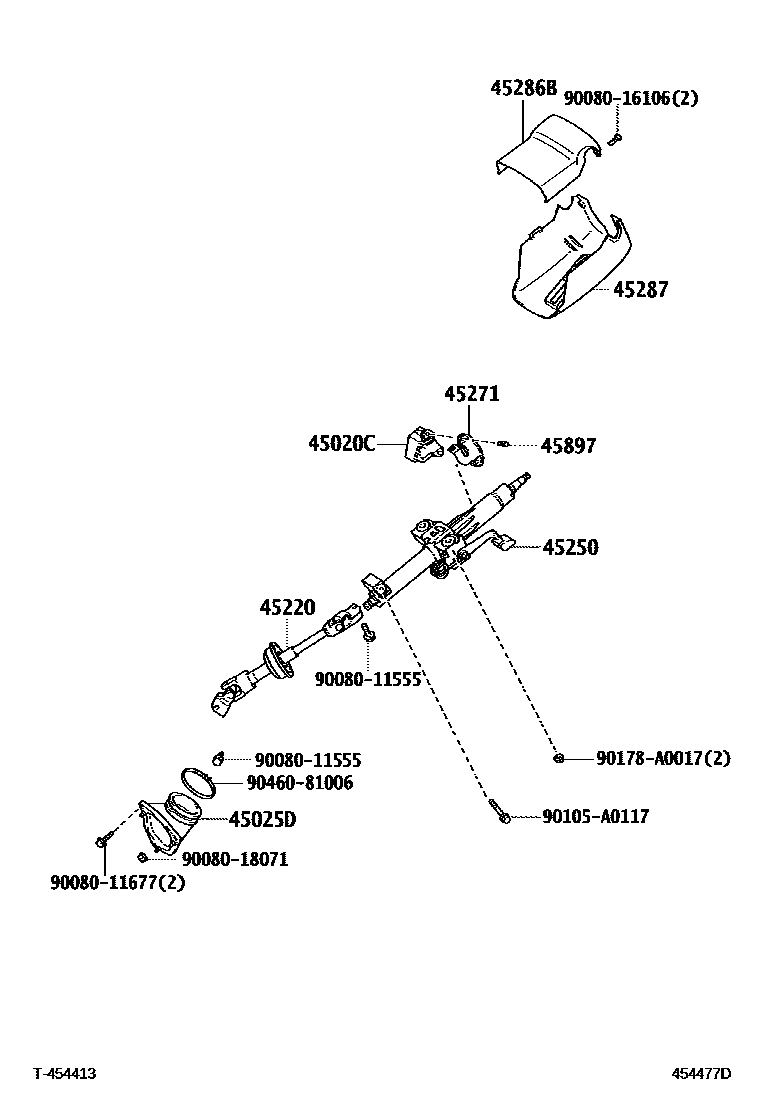

STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-06070iAHV40..NAP200610-200903

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-06060iAHV40..NAP200610-200806

main45025-33110iAHV40..NAP200806-200903

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-06141iAHV40..NAP200610-200903

main45220-06142iAHV40..NAP201001

45250COLUMN ASSY, STEERING

main45250-06480iAHV40..NAP200610-200903

45271CLAMP, STEERING COLUMN, UPPER

main45271-06020iAHV40..NAP200610-200903

45286BCOVER, STEERING COLUMN, UPR

main45286-06140-B1iAHV40..NAP200610-200903

MD.GRAY,TRIM1#

main45286-06140-E0iAHV40..NAP200610-200903

ASH BROWN,TRIM4#

main45286-06141-B1iAHV40..NAP201004-201109

MD.GRAY,TRIM1#

main45286-06141-E0iAHV40..NAP201004-201109

ASH BROWN,TRIM4#

45287COVER, STEERING COLUMN, LWR

main45287-06150-B1iAHV40..NAP200610-200903

MD.GRAY,TRIM1#

main45287-06150-E0iAHV40..NAP200610-200903

ASH BROWN,TRIM4#

45897BOLT, STEERING LOCK SET

main45897-08010×2iAHV40..NAP200610-200903

9008011555

main90080-11555

9008011677

main90080-11677

9008016106

main90080-16106

9008018071

main90080-18071

90105A0117

main90105-A0117

90178A0017

main90178-A0017

9046081006

main90460-81006

15 parts on this diagram · 1 diagram in section
