WATER PUMP

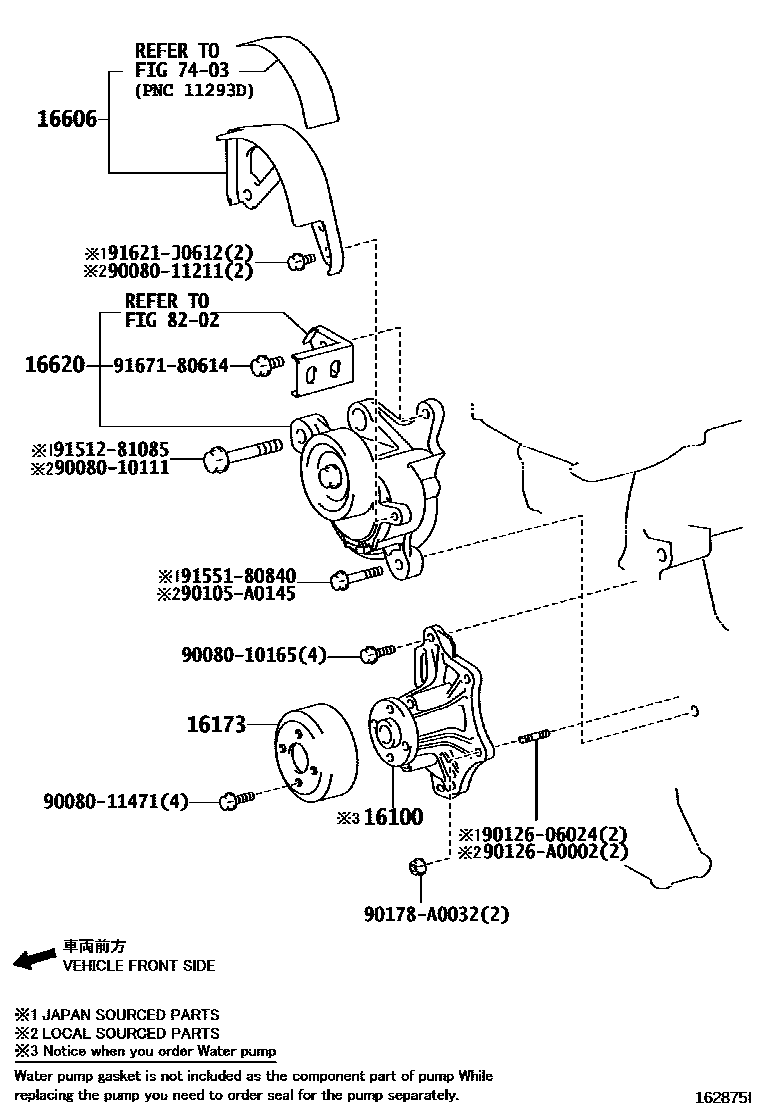

16100PUMP ASSY, ENGINE WATER

main16100-0H010i2AZFXE..AHV40..NAP200610-200903

(L)

main16100-28041i2AZFXE..AHV40..NAP200701-200903

(J)

16173PULLEY, WATER PUMP

main16173-28020i2AZFXE..AHV40..NAP200903

16606COVER SUB-ASSY, V-RIBBED BELT TENSIONER

main16606-28020i2AZFXE..AHV40..NAP200610-200903

16620TENSIONER ASSY, V-RIBBED BELT

main16620-28050i2AZFXE..AHV40..NAP200610-200903

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

8202WIRING & CLAMP

→ Go to FIG 82-02

9008010111

main90080-10111

9008010165

main90080-10165

9008011211

main90080-11211

9008011471

main90080-11471

90105A0145

main90105-A0145

9012606024

main90126-06024

90126A0002

main90126-A0002

90178A0032

main90178-A0032

9151281085

main91512-81085

9155180840

main91551-80840

91621J0612

main91621-J0612

9167180614

main91671-80614

18 parts on this diagram · 1 diagram in section
