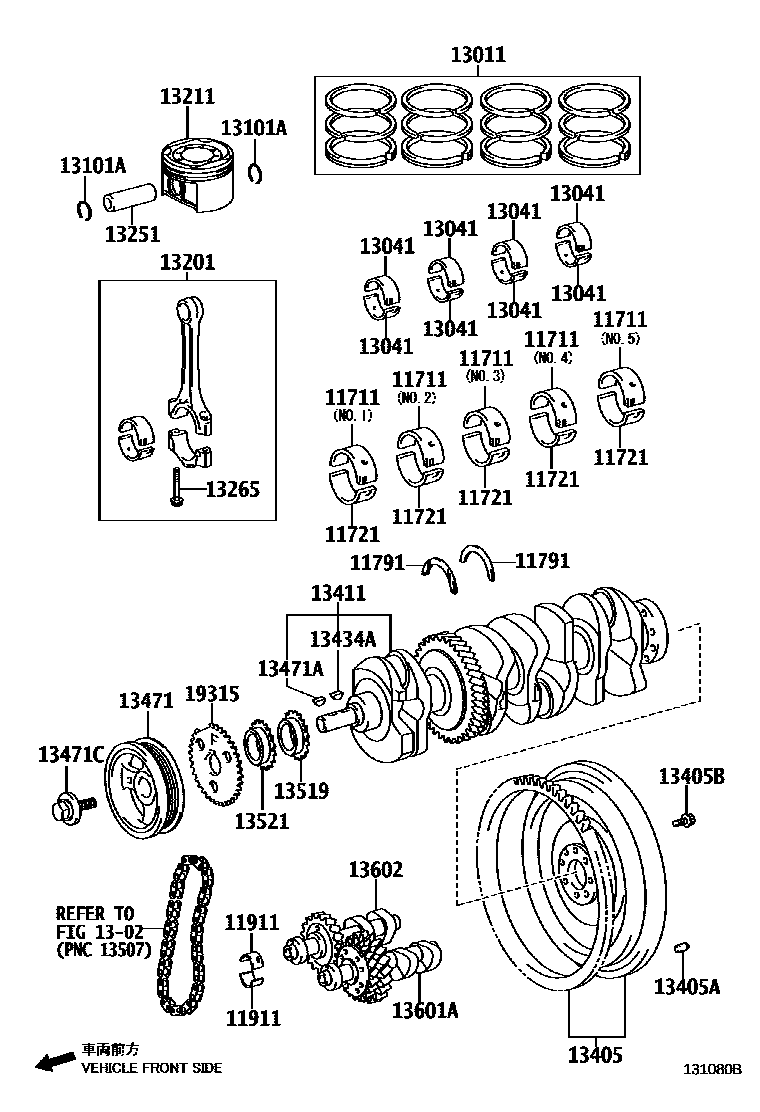

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK1,NO.2,3,4,5 (L) *RRM
MARK2,NO.2,3,4,5 (L) *RRM
MARK3,NO.2,3,4,5 (L) *RRM
MARK4,NO.2,3,4,5 (L) *RRM
MARK 1,NO.2,3,4,5 (L) *RRM
MARK 2,NO.2,3,4,5 (L) *RRM
MARK 3,NO.2,3,4,5 (L) *RRM
MARK 4,NO.2,3,4,5 (L) *RRM
MARK1,NO.2,3,4,5 (J) *RRM
MARK2,NO.2,3,4,5 (J) *RRM
MARK3,NO.2,3,4,5 (J) *RRM
MARK4,NO.2,3,4,5 (J) *RRM
MARK 1,NO.2,3,4,5 (J) *RRM
MARK 2,NO.2,3,4,5 (J) *RRM
MARK 3,NO.2,3,4,5 (J) *RRM
MARK 4,NO.2,3,4,5 (J) *RRM
MARK1,NO.1,REFER R/M
MARK2,NO.1,REFER R/M
MARK3,NO.1,REFER R/M
MARK4,NO.1,REFER R/M
11721BEARING, CRANKSHAFT, NO.2
MARK1,(L):REFER R/M
MARK2,(L):REFER R/M
MARK3,(L):REFER R/M
MARK4,(L):REFER R/M
MARK 1,(L):REFER R/M
MARK 2,(L):REFER R/M
MARK 3,(L):REFER R/M
MARK 4,(L):REFER R/M
MARK1,(J):REFER R/M
MARK2,(J):REFER R/M
MARK3,(J):REFER R/M
MARK4,(J):REFER R/M
MARK 1,(J):REFER R/M
MARK 2,(J):REFER R/M
MARK 3,(J):REFER R/M
MARK 4,(J):REFER R/M
11791WASHER, CRANKSHAFT THRUST, UPPER
STD,(L)
STD,(J)
11911BEARING, BALANCESHAFT, NO.1
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
13011RING SET, PISTON
STD,(L)
STD,(L)
STD,(J)
1302CAMSHAFT & VALVE
13041BEARING, CONNECTING ROD
MARK1,(L):REFER R/M
MARK2,(L):REFER R/M
MARK3,(L):REFER R/M
MARK 1,(L):REFER R/M
MARK 2,(L):REFER R/M
MARK 3,(L):REFER R/M
MARK 1,REFER REPAIR MANUAL
MARK 2,(J):REFER R/M
MARK 3,REFER REPAIR MANUAL
MARK 1,(J):REFER R/M
MARK 2,(J):REFER R/M
MARK 3,(J):REFER R/M
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
MARK A,(L):REFER R/M
MARK B,(L):REFER R/M
MARK C,(L):REFER R/M
MARK A,(L):REFER R/M
MARK B,(L):REFER R/M
MARK C,(L):REFER R/M
MARK A,(J):REFER R/M
MARK B,(J):REFER R/M
MARK C,(J):REFER R/M
MARK A,(J):REFER R/M
MARK B,(J):REFER R/M
MARK C,(J):REFER R/M
13211PISTON
MARKA,REFER REPAIR MANUAL
MARKB,REFER REPAIR MANUAL
MARKC,REFER REPAIR MANUAL
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
13251PIN, PISTON
MARKA,(L):REFER R/M
MARK B,(L):REFER R/M
MARK C,(L):REFER R/M
MARK A,(J):REFER R/M
MARKB,(J):REFER R/M
MARKC,(J):REFER R/M
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=23,OD=8,(J)
L=23,OD=8,(L)
13405BBOLT, FLYWHEEL SETTING
(L)
13411CRANKSHAFT
(L)
(J)
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
(L)
(J)
13519GEAR, OIL PUMP DRIVE
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13601ABALANCESHAFT SUB-ASSY, NO.1
(L)
(J)
13602BALANCESHAFT SUB-ASSY, NO.2
(L)
(J)
19315PLATE, CRANK ANGLE SENSOR, NO.1
(L)
(J)
25 parts on this diagram · 1 diagram in section
