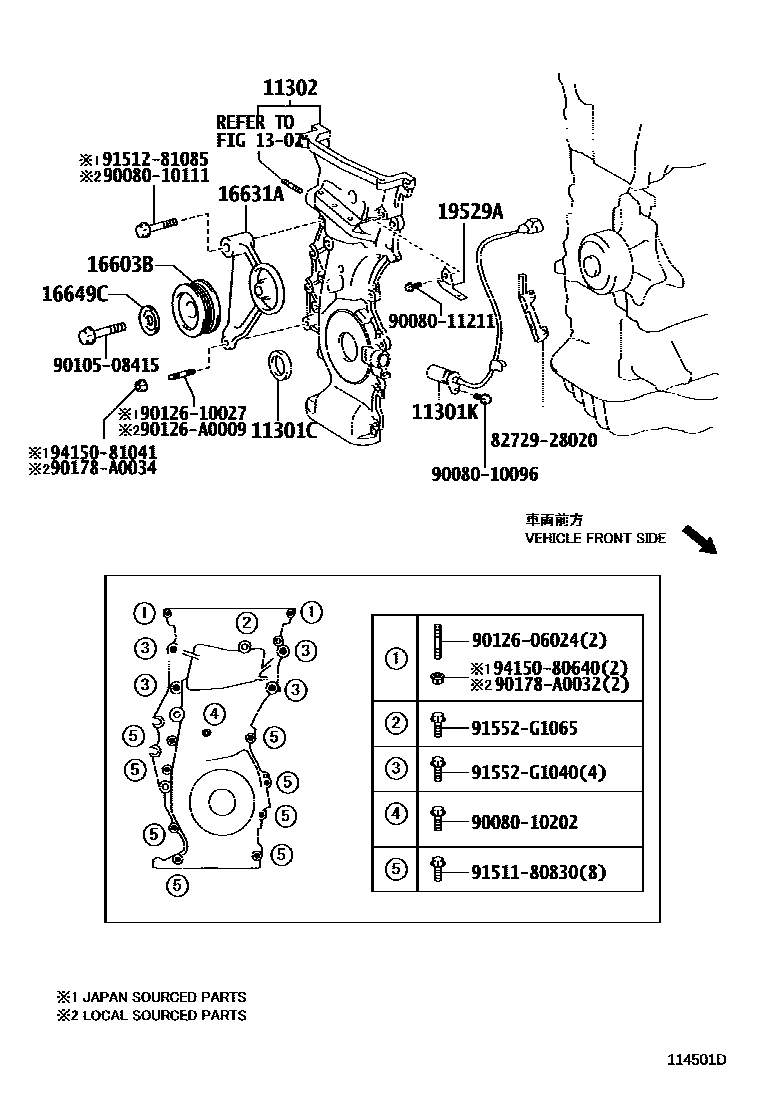

TIMING GEAR COVER & REAR END PLATE

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-38098i2AZFXE..AHV40..NAP200610-201109

11301KSENSOR, CRANK POSITION

main90080-19024i2AZFXE..AHV40..NAP200610-200903

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-0H011i2AZFXE..AHV40..NAP200610-200903

(L)

main11310-28071i2AZFXE..AHV40..NAP200610-200903

(J)

1302

16603BPULLEY SUB-ASSY, IDLER

main16603-28030i2AZFXE..AHV40..NAP200610-200903

16631ABRACKET, IDLER PULLEY

main16631-28020i2AZFXE..AHV40..NAP200610-200903

16649CPLATE, IDLER PULLEY COVER

main16649-28010i2AZFXE..AHV40..NAP200610-200903

19529ACLAMP

main19529-28010i2AZFXE..AHV40..NAP200610-200903

8272928020

main82729-28020

9008010096

main90080-10096

9008010111

main90080-10111

9008010202

main90080-10202

9008011211

main90080-11211

9010508415

main90105-08415

9012606024

main90126-06024

9012610027

main90126-10027

90126A0009

main90126-A0009

90178A0032

main90178-A0032

90178A0034

main90178-A0034

9151180830

main91511-80830

9151281085

main91512-81085

91552G1040

main91552-G1040

91552G1065

main91552-G1065

9415080640

main94150-80640

9415081041

main94150-81041

25 parts on this diagram · 1 diagram in section
