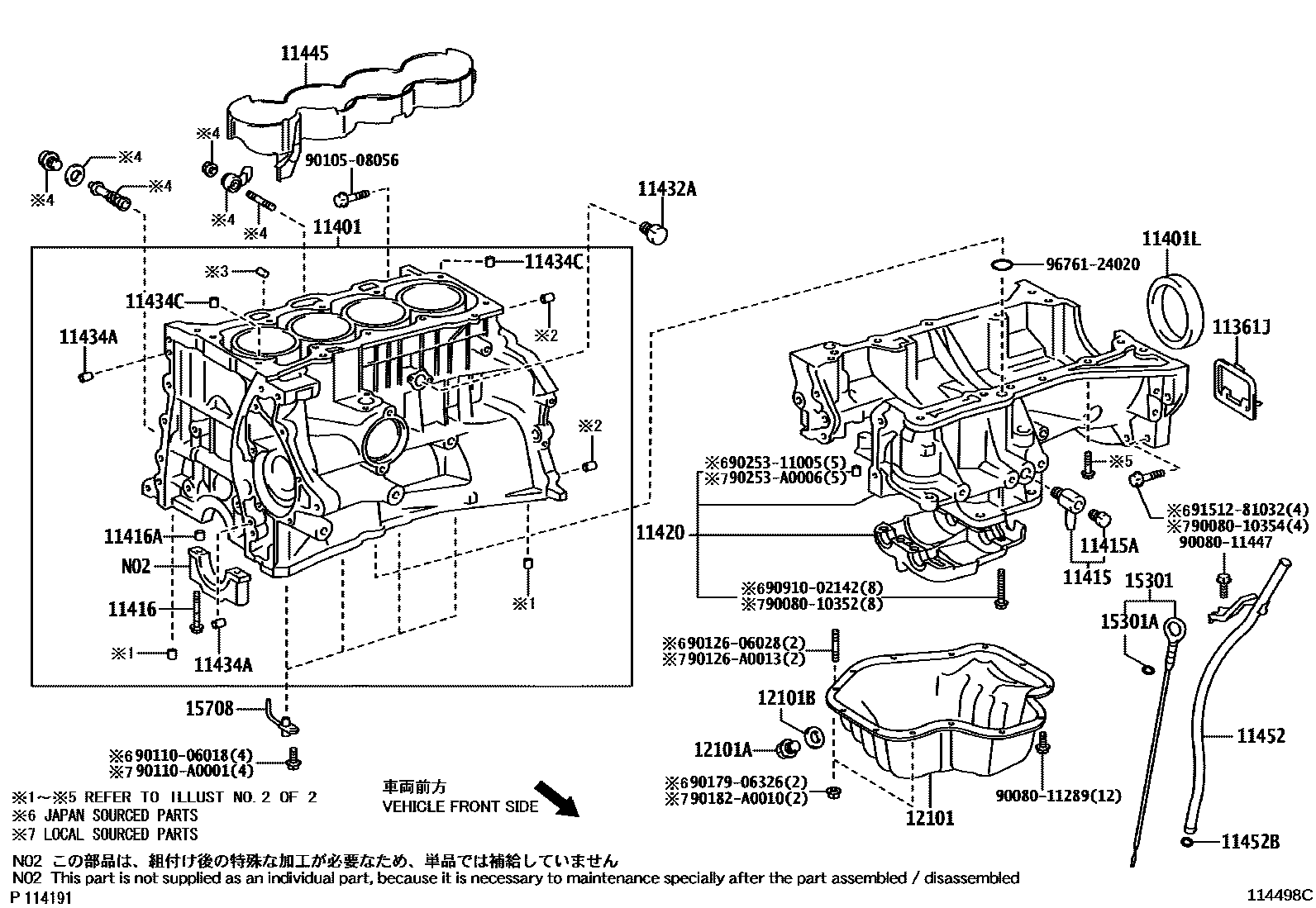

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
(L)
(J)
11401BLOCK SUB-ASSY, CYLINDER
(L)
(L)
(J)
11401LSEAL, ENGINE REAR OIL
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)
(J)
(L)
11420CRANKCASE ASSY, STIFFENING
11432APLUG, W/HEAD TAPER SCREW, NO.1
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=18,OD=8
L=18,OD=8,(L)
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=12,OD=14
L=12,OD=14,(L)
11445SPACER, CYLINDER BLOCK WATER JACKET
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
15301GAGE SUB-ASSY, OIL LEVEL
15301ARING, O(FOR OIL LEVEL GAGE)
15708NOZZLE SUB-ASSY, OIL, NO.1
9008010352
main90080-10352
9008010354
main90080-10354
9008011289
main90080-11289
9008011447
main90080-11447
9010508056
main90105-08056
9011006018
main90110-06018
90110A0001
main90110-A0001
9012606028
main90126-06028
90126A0013
main90126-A0013
9017906326
main90179-06326
90182A0010
main90182-A0010
9025311005
main90253-11005
90253A0006
main90253-A0006
9091002142
main90910-02142
9151281032
main91512-81032
9676124020
main96761-24020
36 parts on this diagram · 2 diagrams in section
