AIR PURIFIER OR ION GENERATOR

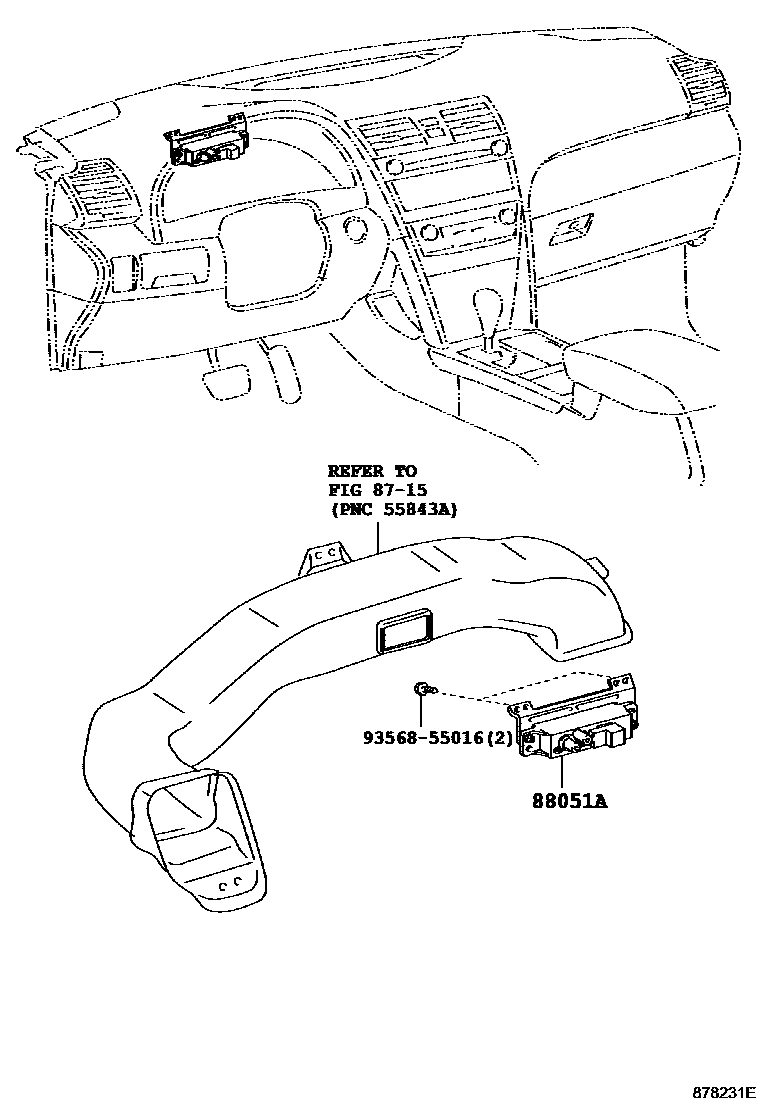

Parts diagram

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

88051AGENERATOR SUB-ASSY,ION

main88050-33010i200603-200901

main88050-33020i201001-201108

9356855016

main93568-55016

3 parts on this diagram · 1 diagram in section
