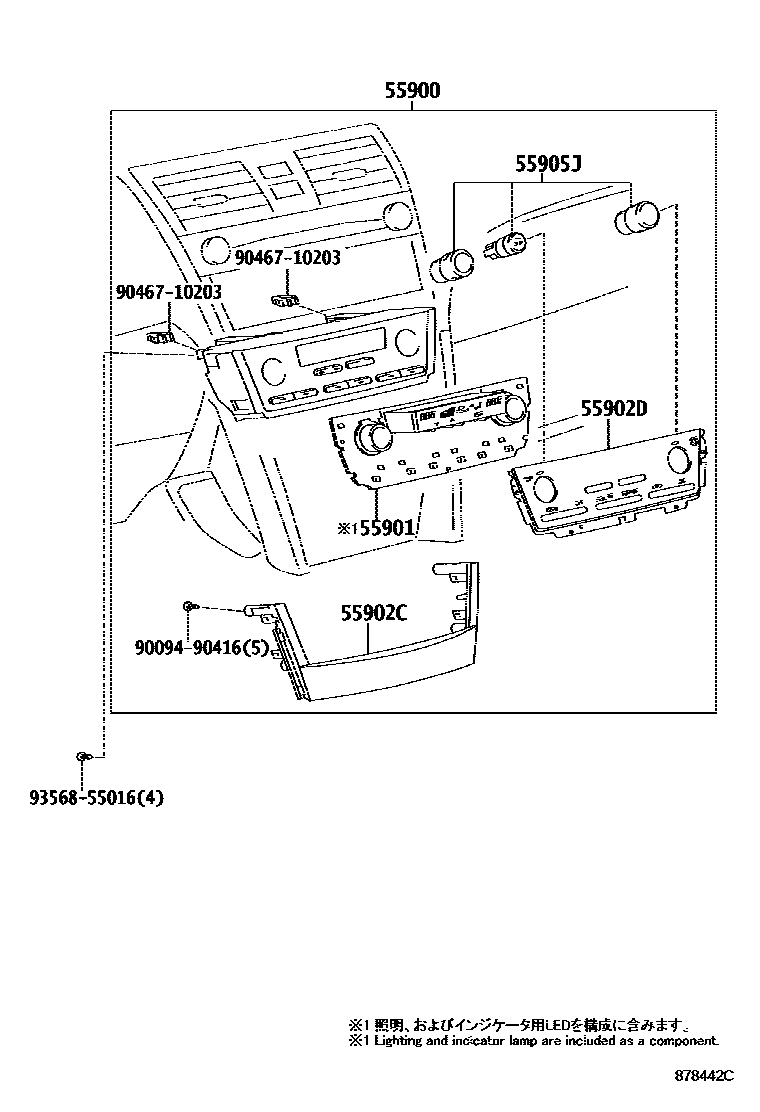

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1DUCT 0003 1SENSOR

55900CONTROL ASSY, AIR CONDITIONER

main55900-33B51iAHV40..JPP200603-200702

main55900-33B52iAHV40..JPP200703-200901

main55900-33C90iAHV40..JPP200901-201108

55901BASE SUB-ASSY, HEATER CONTROL

main55901-33060iAHV40..JPP200603-200703

main55901-33130iAHV40..JPP200703-200901

main55901-33200iAHV40..JPP200901-201108

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-33820iAHV40..JPP200603-200702

55902DPANEL SUB-ASSY, AIR CONDITIONER

main55902-33830iAHV40..JPP200603-200702

55905JKNOB SUB-ASSY, CONTROL

main55905-33220iAHV40..JPP200603-200703

main55905-33240iAHV40..JPP200703-200901

9009490416

main90094-90416

9046710203

main90467-10203

9356855016

main93568-55016

8 parts on this diagram · 3 diagrams in section
