HORN

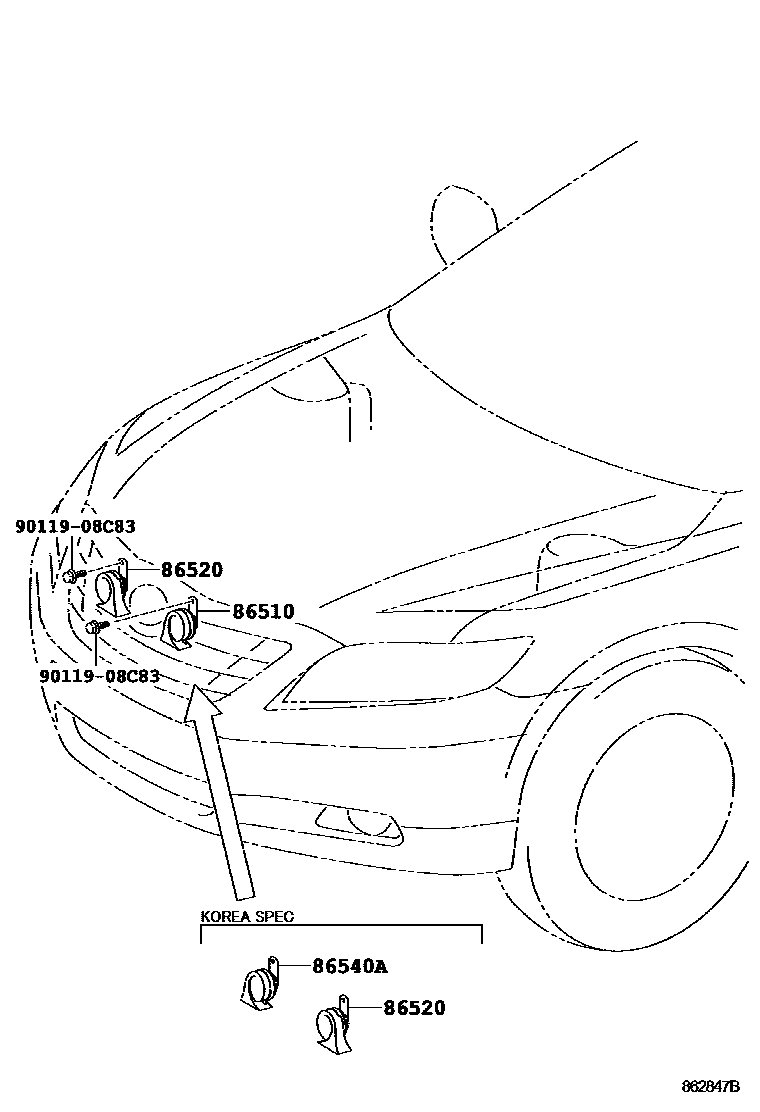

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-48050i200603-200901

86520HORN ASSY, LOW PITCHED

main86520-48040supersedes 86520-48030i200907-201108

KOREA SPEC

86540AHORN ASSY, SUPER LOW PITCHED

main86540-48010i200907-201108

KOREA SPEC

9011908C83

main90119-08C83

4 parts on this diagram · 1 diagram in section
