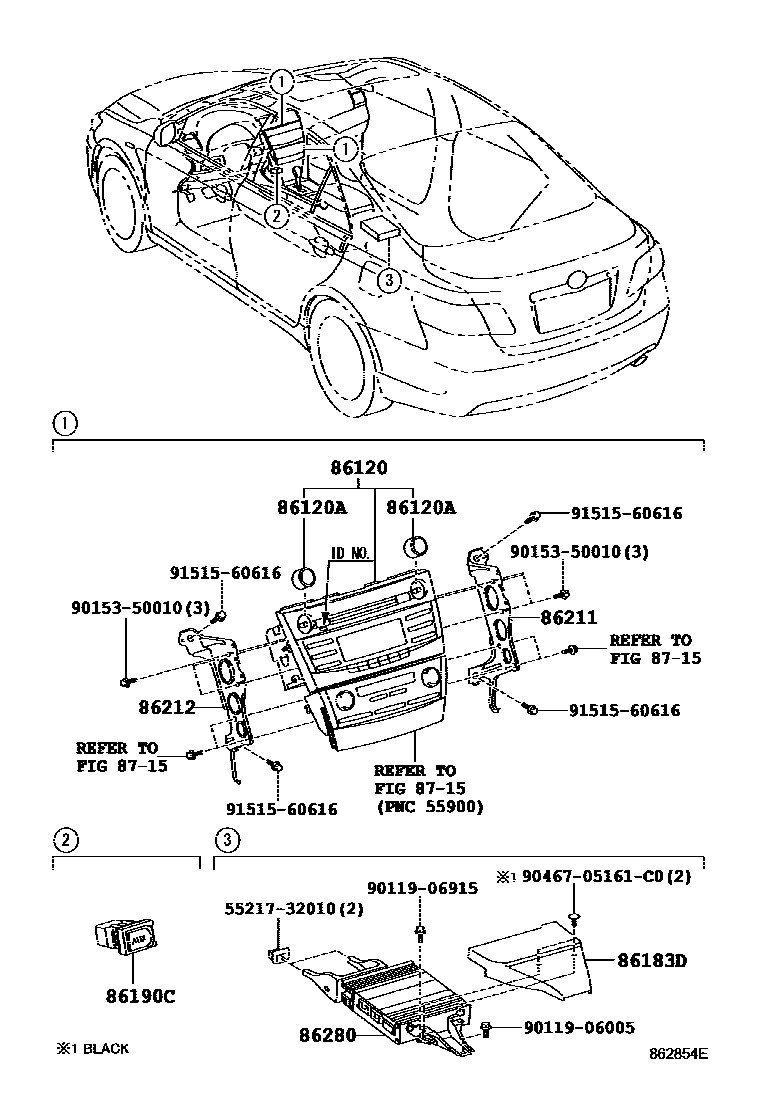

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-33A01iAHV40..JPP200707-200901

MATSUSHITA,ID=51861

main86120-33D20iAHV40..JPP200901-201108

FUJITSU TEN,ID=11845,CANADA SPEC

86120AKNOB, RADIO RECEIVER SWITCH

main90010-23024×2supersedes 90011-23017iAHV40..JPP200812-200901

EMV & NAVIGATION SYSTEM-WITH

main90011-23017×2iAHV40..JPP200603-200812

EMV & NAVIGATION SYSTEM-WITH

86183DCOVER, AUDIO AMPLIFIER

main86183-33010iAHV40..JPP200901-201108

AUDIO-AVN,6SPEAKER,BLUETOOTH

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-48010supersedes 86190-53010iAHV40..JPP200707-200901

86211BRACKET, RADIO, NO.1

main86211-33210iAHV40..JPP200603-200901

86212BRACKET, RADIO, NO.2

main86212-33210iAHV40..JPP200603-200901

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0W391iAHV40..JPP200901-201108

AUDIO-AVN,6SPEAKER,BLUETOOTH

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

5521732010STRIP, DASH PANEL SILENCER FINISH

main55217-32010

9011906005

main90119-06005

9011906915

main90119-06915

9015350010

main90153-50010

9046705161C0

main90467-05161C0

9151560616

main91515-60616

14 parts on this diagram · 3 diagrams in section
