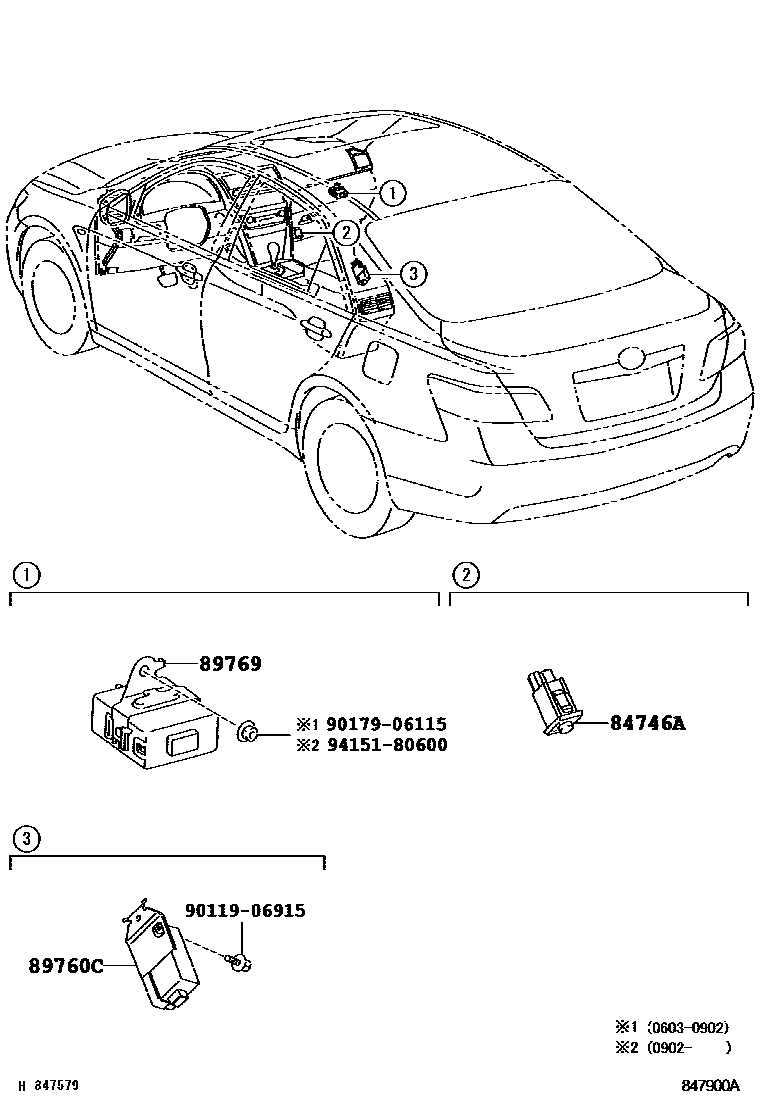

TIRE PRESSURE WARNING SYSTEM

84746ASWITCH, TIRE PRESSURE WARNING, NO.1

main84746-50010iAHV40..JPP200603-200901

CANADA SPEC

89760CRECEIVER ASSY, TIRE PRESSURE MONITOR

main89760-33010supersedes 89760-33012iAHV40..JPP200603-200604

CANADA SPEC

main89760-33011supersedes 89760-33012iAHV40..JPP200605-200711

CANADA SPEC

main89760-33012iAHV40..JPP200712-200901

CANADA SPEC

89769COMPUTER, TIRE PRESSURE MONITOR

main89769-33010supersedes 89769-33120iAHV40..JPP200603-200707

CANADA SPEC

main89769-33120iAHV40..JPP200707-200901

CANADA SPEC

9011906915

main90119-06915

9017906115

main90179-06115

9415180600

main94151-80600

6 parts on this diagram · 1 diagram in section
