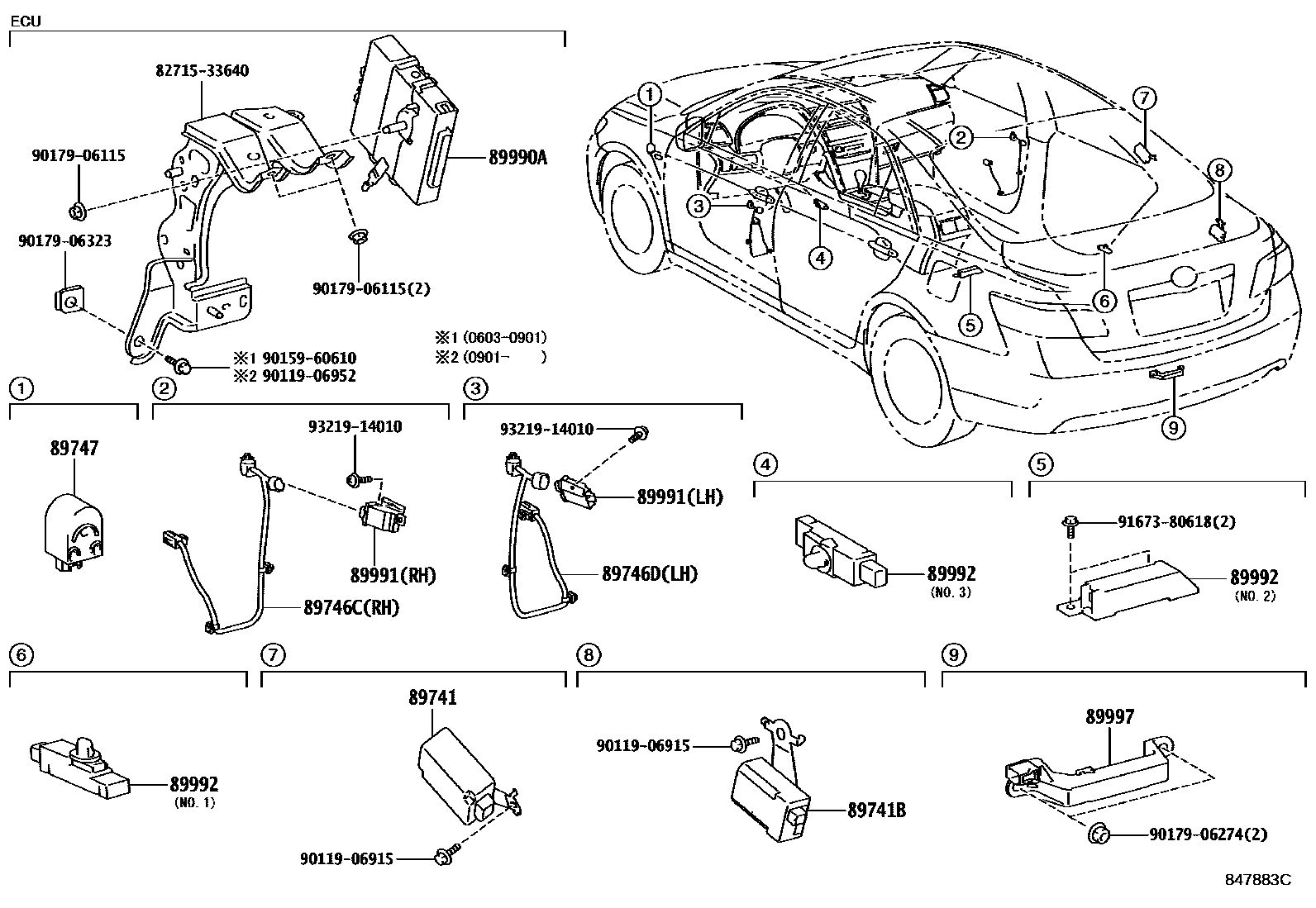

WIRELESS DOOR LOCK

89741RECEIVER, DOOR CONTROL

main89740-33070supersedes 89740-33031iAHV40..JPP200907-201003

KOREA SPEC

main89740-33071supersedes 89740-33031iAHV40..JPP201004-201108

KOREA SPEC

89741BRECEIVER, DOOR CONTROL, NO.2

main89740-33040iAHV40..JPP200603-200901

main89740-33080supersedes 89740-33040iAHV40..JPP200907-201001

KOREA SPEC

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-33010iAHV40..JPP200603-200901

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-33020iAHV40..JPP200603-200901

89747BUZZER, WIRELESS DOOR LOCK

main89747-48020iAHV40..JPP200603-200901

89990ACOMPUTER ASSY, SMART KEY

main89990-33010iAHV40..JPP200603-200605

main89990-33011iAHV40..JPP200606-200706

main89990-33080iAHV40..JPP200707-200901

main89990-33150iAHV40..JPP200901-200906

main89990-33151iAHV40..JPP200907-201003

main89990-33153iAHV40..JPP201106-201108

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-30040iAHV40..JPP200603-200901

LH

main89991-30050iAHV40..JPP200901-201108

RH

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-33030iAHV40..JPP200603-200901

NO.2

main89992-33060iAHV40..JPP200901-201108

NO.1

main89992-42010iAHV40..JPP200603-200901

NO.3

89997ANTENNA, ELECTRICAL KEY

main89997-41010iAHV40..JPP200901-201108

8271533640BRACKET,WIRING HARNESS CLAMP

main82715-33640

9011906915

main90119-06915

9011906952

main90119-06952

9015960610

main90159-60610

9017906115

main90179-06115

9017906274

main90179-06274

9017906323

main90179-06323

9167380618

main91673-80618

9321914010

main93219-14010

18 parts on this diagram · 1 diagram in section
