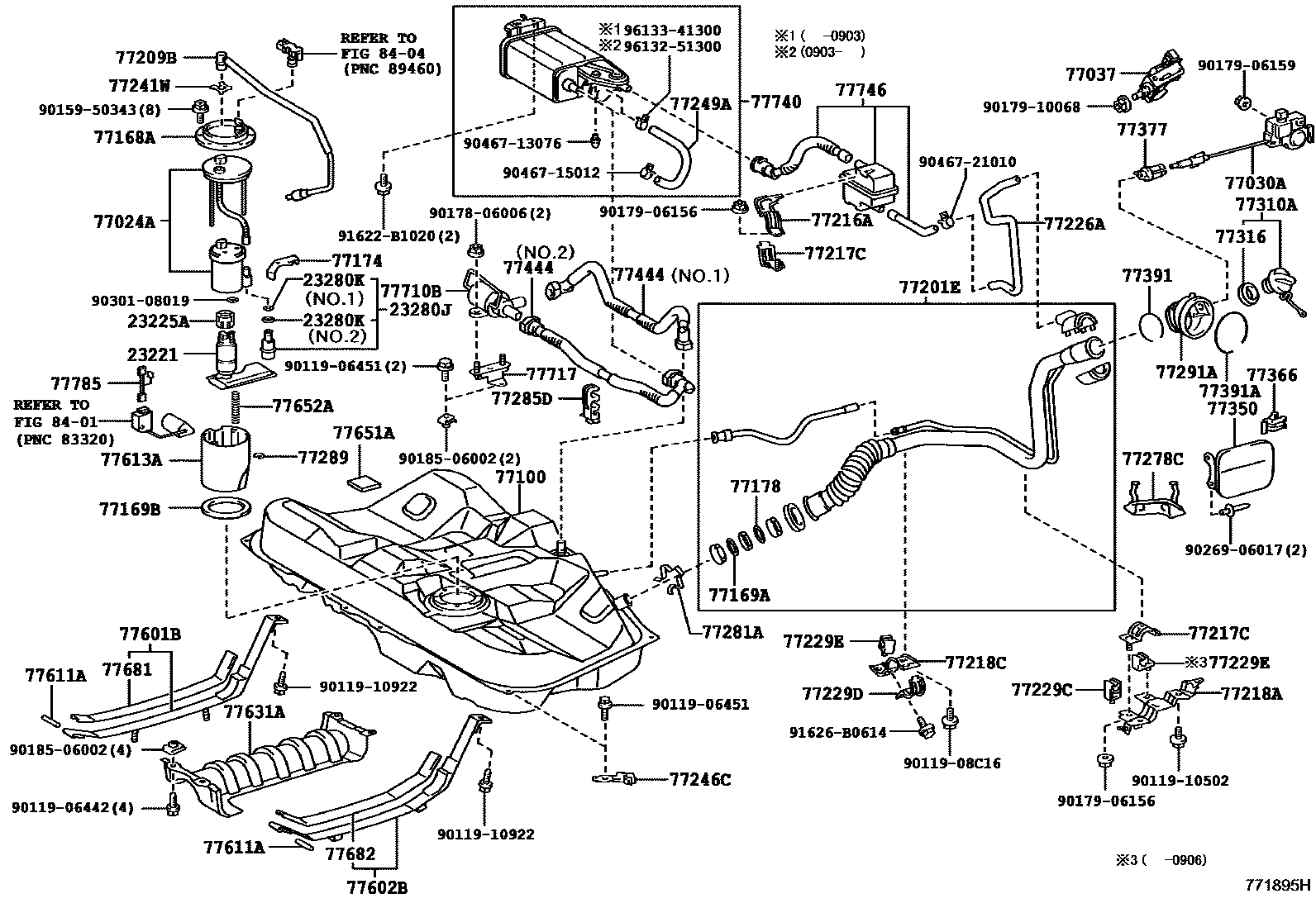

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TUBE

23221PUMP, FUEL

main23220-28220i2AZFXE..AHV40..JPP200901-201108

23225ASPACER, FUEL PUMP

main23225-23010i2AZFXE..AHV40..JPP200603-200901

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i2AZFXE..AHV40..JPP200603-200901

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2AZFXE..AHV40..JPP200603-200901

NO.1

main90301-15024i2AZFXE..AHV40..JPP200901-201108

NO.2

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-33070iAHV40..JPP200603-200901

77030ALOCK ASSY, FUEL LID W/MOTOR

main77030-33060iAHV40..JPP200603-200606

main77030-33061iAHV40..JPP200607-200901

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-33020iAHV40..JPP200603-200901

77100TANK ASSY, FUEL

main77001-33210iAHV40..JPP200603-200901

main77001-33211iAHV40..JPP200901-201108

77168APLATE, FUEL TANK VENT TUBE SET

main77168-33060iAHV40..JPP200603-200901

77169AGASKET, FUEL SUCTION TUBE SET

main77169-33050iAHV40..JPP200603-200708

77169BGASKET, FUEL SUCTION TUBE SET, NO.1

main77169-33030iAHV40..JPP200603-200901

77174SUPPORT, FUEL SUCTION, NO.1

main77174-33030iAHV40..JPP200603-200901

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-33010iAHV40..JPP200603-200708

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-33260iAHV40..JPP200603-200709

main77201-33261iAHV40..JPP200709-200901

77209BTUBE SUB-ASSY, FUEL PUMP

main77209-33070iAHV40..JPP200603-200901

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-33070iAHV40..JPP200603-200708

77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-33020×2iAHV40..JPP200603-200708

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77216-33100iAHV40..JPP200603-200708

77218CSUPPORT, FUEL TANK FILLER PIPE, NO.5

main77218-33051iAHV40..JPP200603-200709

main77218-33052iAHV40..JPP200709-200901

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-33030iAHV40..JPP200603-200708

77229CCLAMP, BREATHER TUBE

main77229-33070iAHV40..JPP200603-200708

77229DSUPPORT, FUEL TANK FILLER PIPE, NO.4

main77217-33030iAHV40..JPP200603-200708

77229ECLAMP, BREATHER TUBE

main77229-33060×2iAHV40..JPP200603-200708

77241WCLIP, TUBE JOINT

main77241-33011×2iAHV40..JPP200603-200901

77246CSUPPORT, FUEL MAIN TUBE

main77246-33020iAHV40..JPP200603-200901

77249AHOSE, FUEL EMISSION

main77249-33080iAHV40..JPP200603-200901

77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2

main77278-33020iAHV40..JPP200603-200708

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-33030iAHV40..JPP200901-201108

77281ACLAMP, FUEL FILLER PIPE

main77281-33020iAHV40..JPP200603-200901

77285DCLAMP, FUEL TUBE, NO.1

main77285-33080iAHV40..JPP200603-200901

77289HOLDER, FUEL TANK PIPE SETTING

main77289-52090iAHV40..JPP200603-200901

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-33070iAHV40..JPP200603-200901

77310ACAP ASSY, FUEL TANK

main77300-48010iAHV40..JPP200603-200901

77316GASKET, FUEL TANK CAP

main77316-47020iAHV40..JPP201102-201108

main77316-48010iAHV40..JPP200901-201101

77350LID ASSY, FUEL FILLER OPENING

main77350-33180iAHV40..JPP200603-200901

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-33030iAHV40..JPP200603-200901

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-35010iAHV40..JPP200603-200901

77391RING, FUEL INLET BOX

main77391-12020iAHV40..JPP200603-200901

77391ARING, FUEL INLET BOX

main77391-33030iAHV40..JPP200603-200901

77444HOSE, FUEL TANK VENT

main77404-33110iAHV40..JPP200603-200901

NO.1

main77404-33120iAHV40..JPP200603-200901

NO.2

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-33080iAHV40..JPP200603-200901

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-33090iAHV40..JPP200603-200901

77611APIN (FOR FUEL TANK BAND)

main90250-08019×2iAHV40..JPP200603-200901

77613ABRACKET, FUEL TANK BAND, NO.1

main77613-33040iAHV40..JPP200603-200901

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77631-33060iAHV40..JPP200603-200901

77651ACUSHION, FUEL TANK, NO.1

main77651-12070×7iAHV40..JPP200603-200812

main77651-20090×7iAHV40..JPP200901-201108

77652ACUSHION, FUEL TANK, NO.2

main77652-33050iAHV40..JPP200603-200901

77681SEAT, FUEL TANK BAND, RH

main77681-33020iAHV40..JPP200603-200901

77682SEAT, FUEL TANK BAND, LH

main77682-33020iAHV40..JPP200603-200901

77710BVALVE ASSY, FUEL TANK SOLENOID MAIN

main77710-33010iAHV40..JPP200603-200901

77717BRACKET, FUEL SOLENOID VALVE RETURN

main77717-33010iAHV40..JPP200603-200901

77740CANISTER ASSY, CHARCOAL

main77740-33190iAHV40..JPP200603-200901

77746FILTER, CHARCOAL CANISTER, NO.2

main77706-33050iAHV40..JPP200603-200708

77785HARNESS, FUEL PUMP

main77785-33050iAHV40..JPP200603-200901

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9011906442

main90119-06442

9011906451

main90119-06451

9011908C16

main90119-08C16

9011910502

main90119-10502

9011910922

main90119-10922

9015950343

main90159-50343

9017806006

main90178-06006

9017906156

main90179-06156

9017906159

main90179-06159

9017910068

main90179-10068

9018506002

main90185-06002

9026906017

main90269-06017

9030108019

main90301-08019

9046713076

main90467-13076

9046715012

main90467-15012

9046721010

main90467-21010

91622B1020

main91622-B1020

91626B0614

main91626-B0614

9613251300

main96132-51300

9613341300

main96133-41300
