FRONT SEAT & SEAT TRACK

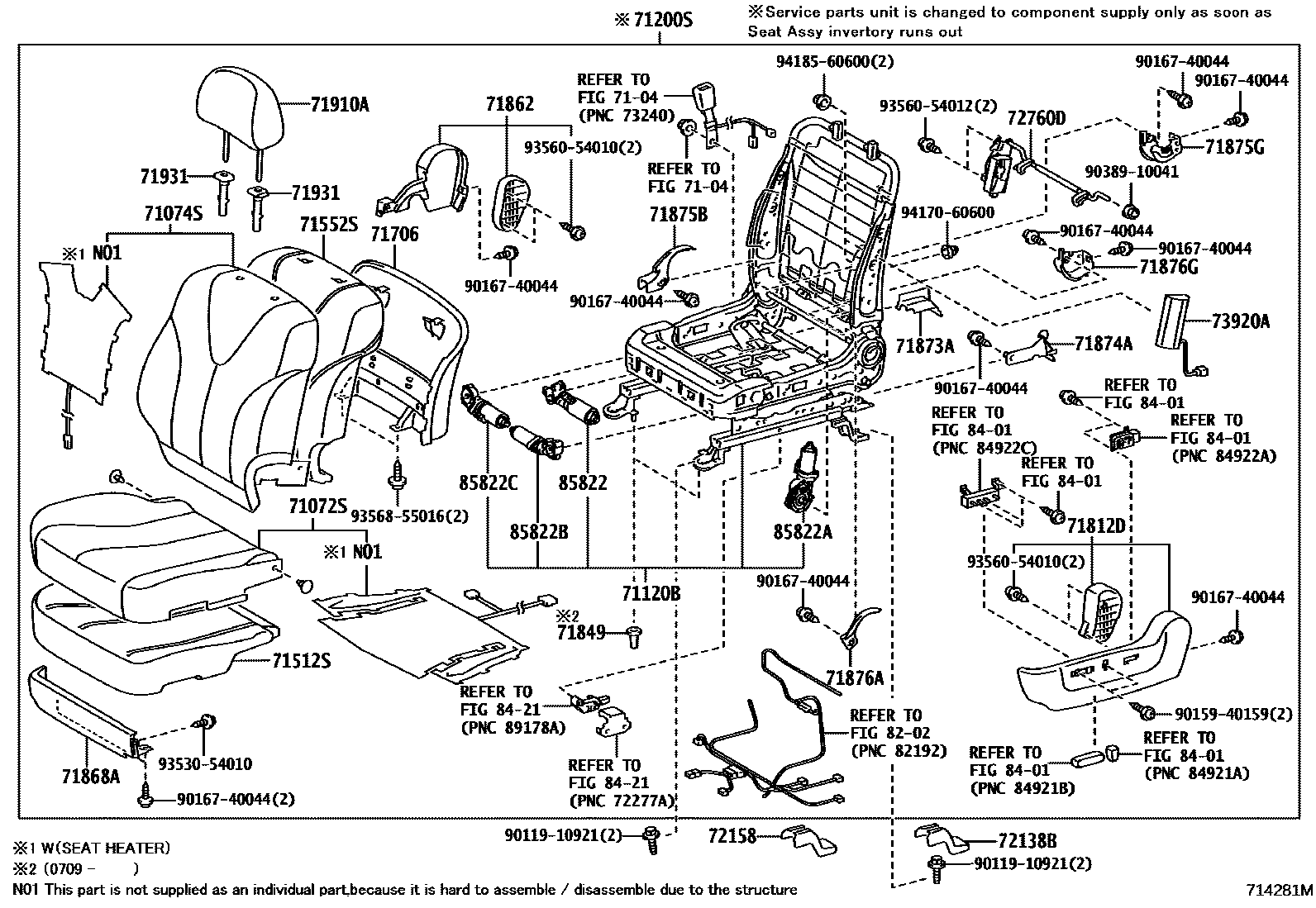

Parts diagram
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-33E20-B1supersedes 71072-33F51-B2i200603-200901
POWER SEAT & LEATHER PACKAGE,MD. GRAY,TRIM1#
main71072-33E20-B5supersedes 71072-33F51-B2i200901-200906
*DRP POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#; HIGH PACKAGE,GRAY,TRIM1#
main71072-33E20-E1supersedes 71072-33F51-E1i200607-200901
POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
main71072-33E20-E4supersedes 71072-33F51-E1i200911-201010
*DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#; HIGH PACKAGE,GREGE,TRIM4#
main71072-33E21-B5supersedes 71072-33F51-B2i201010-201108
*DRP POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#; HIGH PACKAGE,GRAY,TRIM1#
main71072-33E21-E4supersedes 71072-33F51-E1i201010-201108
*DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#; HIGH PACKAGE,GREGE,TRIM4#
main71072-33E30-B1supersedes 71072-33F51-B2i200603-200604
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,MD. GRAY,TRIM1#
main71072-33E31-B1supersedes 71072-33F51-B2i200604-200901
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,GRAY,TRIM1#
main71072-33E31-B5supersedes 71072-33F51-B2i200911-201010
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; HIGH PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main71072-33E31-E1supersedes 71072-33F51-E1i200604-200901
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,GREGE,TRIM4#
main71072-33E31-E3supersedes 71072-33F51-E1i200901-200906
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; HIGH PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#
main71072-33E32-B5supersedes 71072-33F51-B2i201010-201108
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; HIGH PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main71072-33E32-E3supersedes 71072-33F51-E1i201010-201108
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; HIGH PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#
main71072-33G80-B1supersedes 71072-33F51-B2i200907-200911
*DRP POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#; HIGH PACKAGE,GRAY,TRIM1#
main71072-33G80-E0supersedes 71072-33F51-E1i200907-200911
*DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#; HIGH PACKAGE,GREGE,TRIM4#
main71072-33G90-B1supersedes 71072-33F51-B2i200907-200911
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; HIGH PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main71072-33G90-E0supersedes 71072-33F51-E1i200907-200911
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; HIGH PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-33B70-B1supersedes 71074-33K61-B0i200603-200901
POWER SEAT & LEATHER PACKAGE,MD. GRAY,TRIM1#
main71074-33B70-E1supersedes 71074-33K61-E0i200607-200901
POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
main71074-33G60-B1supersedes 71074-33K61-B0i200603-200604
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,MD. GRAY,TRIM1#
main71074-33G61-B1supersedes 71074-33K61-B0i200604-200901
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,GRAY,TRIM1#
main71074-33G61-E1supersedes 71074-33K61-E0i200604-200901
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,GREGE,TRIM4#
main71074-33J20-B1supersedes 71074-33K61-B0i200901-200907
*DRP POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#,TAG = SIDE AIRBAG; HIGH PACKAGE,GRAY,TRIM1#,TAG = SIDE AIRBAG
main71074-33J20-E0supersedes 71074-33K61-E0i200901-200907
*DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#,TAG = SIDE AIRBAG; HIGH PACKAGE,GREGE,TRIM4#,TAG = SIDE AIRBAG
main71074-33J30-B1supersedes 71074-33K61-B0i200901-200907
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#,TAG = SIDE AIRBAG; HIGH PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#,TAG = SIDE AIRBAG
main71074-33J30-E0supersedes 71074-33K61-E0i200901-200907
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#,TAG = SIDE AIRBAG; HIGH PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#,TAG = SIDE AIRBAG
main71074-33K70-B1supersedes 71074-33K61-B0i200911-201010
*DRP POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#,TAG = SIDE AIRBAG; HIGH PACKAGE,GRAY,TRIM1#,TAG = SIDE AIRBAG
main71074-33K70-E0supersedes 71074-33K61-E0i200911-201010
*DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#,TAG = SIDE AIRBAG; HIGH PACKAGE,GREGE,TRIM4#,TAG = SIDE AIRBAG
main71074-33K71-B1supersedes 71074-33K61-B0i201010-201108
*DRP POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#,TAG = SIDE AIRBAG; HIGH PACKAGE,GRAY,TRIM1#,TAG = SIDE AIRBAG
main71074-33K71-E0supersedes 71074-33K61-E0i201010-201108
*DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#,TAG = SIDE AIRBAG; HIGH PACKAGE,GREGE,TRIM4#,TAG = SIDE AIRBAG
main71074-33K80-B1supersedes 71074-33K61-B0i200911-201010
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#,TAG = SIDE AIRBAG; HIGH PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#,TAG = SIDE AIRBAG
main71074-33K80-E0supersedes 71074-33K61-E0i200911-201010
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#,TAG = SIDE AIRBAG; HIGH PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#,TAG = SIDE AIRBAG
main71074-33K81-B1supersedes 71074-33K61-B0i201010-201108
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#,TAG = SIDE AIRBAG; HIGH PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#,TAG = SIDE AIRBAG
main71074-33K81-E0supersedes 71074-33K61-E0i201010-201108
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#,TAG = SIDE AIRBAG; HIGH PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#,TAG = SIDE AIRBAG
main71074-33L00-B1supersedes 71074-33K61-B0i200907-200911
*DRP POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#,TAG = SIDE AIRBAG; HIGH PACKAGE,GRAY,TRIM1#,TAG = SIDE AIRBAG
main71074-33L00-E0supersedes 71074-33K61-E0i200907-200911
*DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#,TAG = SIDE AIRBAG; HIGH PACKAGE,GREGE,TRIM4#,TAG = SIDE AIRBAG
main71074-33L10-B1supersedes 71074-33K61-B0i200907-200911
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#,TAG = SIDE AIRBAG; HIGH PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#,TAG = SIDE AIRBAG
main71074-33L10-E0supersedes 71074-33K61-E0i200907-200911
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#,TAG = SIDE AIRBAG; HIGH PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#,TAG = SIDE AIRBAG
71120BFRAME ASSY, FRONT SEAT W/ADJUSTER, LH
main71120-33170i200901-201108
main71120-33230i200603-200709
main71120-33231i200709-200901
71200SSEAT ASSY, FRONT LH
main71200-33G70-B2supersedes 71200-33S81-B0i200603-200604
POWER SEAT & LEATHER PACKAGE,MD.GRAY,TRIM1#
main71200-33G70-B5supersedes 71200-33S81-B0i200604-200701
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#
main71200-33G70-E1supersedes 71200-33S81-E0i200603-200604
POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
main71200-33G70-E5supersedes 71200-33S81-E0i200604-200701
POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
main71200-33G71-B0supersedes 71200-33S81-B0i200701-200702
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#
main71200-33G71-B1supersedes 71200-33S81-B0i200702-200708
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#
main71200-33G71-E0supersedes 71200-33S81-E0i200701-200702
POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
main71200-33G71-E1supersedes 71200-33S81-E0i200702-200708
POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
main71200-33G72-B0supersedes 71200-33S81-B0i200709-200901
POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#
main71200-33G72-E0supersedes 71200-33S81-E0i200709-200901
POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
main71200-33G80-B2supersedes 71200-33S81-B0i200603-200604
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,MD.GRAY,TRIM1#
main71200-33G80-B5supersedes 71200-33S81-B0i200604-200701
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,GRAY,TRIM1#
main71200-33G80-E1supersedes 71200-33S81-E0i200603-200604
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,GREGE,TRIM4#
main71200-33G80-E5supersedes 71200-33S81-E0i200604-200701
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,GREGE,TRIM4#
main71200-33G81-B0supersedes 71200-33S81-B0i200701-200702
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,GRAY,TRIM1#
main71200-33G81-E0supersedes 71200-33S81-E0i200701-200702
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,GREGE,TRIM4#
main71200-33G82-B1supersedes 71200-33S81-B0i200702-200708
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,GRAY,TRIM1#
main71200-33G82-E1supersedes 71200-33S81-E0i200702-200708
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,GREGE,TRIM4#
main71200-33G83-B0supersedes 71200-33S81-B0i200709-200901
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,GRAY,TRIM1#
main71200-33G83-E0supersedes 71200-33S81-E0i200709-200901
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,GREGE,TRIM4#
main71200-33P30-B1supersedes 71200-33S81-B0i200901-200907
*DRP POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#; HIGH PACKAGE,GRAY,TRIM1#
main71200-33P30-E1supersedes 71200-33S81-E0i200901-200907
*DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#; HIGH PACKAGE,GREGE,TRIM4#
main71200-33P40-B1supersedes 71200-33S81-B0i200901-200907
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; HIGH PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main71200-33P40-E1supersedes 71200-33S81-E0i200901-200907
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; HIGH PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#
main71200-33R40-B0supersedes 71200-33S81-B0i200907-201009
*DRP POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#; HIGH PACKAGE,GRAY,TRIM1#
main71200-33R40-E0supersedes 71200-33S81-E0i200907-201009
*DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#; HIGH PACKAGE,GREGE,TRIM4#
main71200-33R41-B0supersedes 71200-33S81-B0i201010-201108
*DRP POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#; HIGH PACKAGE,GRAY,TRIM1#
main71200-33R41-E0supersedes 71200-33S81-E0i201010-201108
*DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#; HIGH PACKAGE,GREGE,TRIM4#
main71200-33R50-B0supersedes 71200-33S81-B0i200907-201009
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; HIGH PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main71200-33R50-E0supersedes 71200-33S81-E0i200907-201009
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; HIGH PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#
main71200-33R51-B0supersedes 71200-33S81-B0i201010-201108
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; HIGH PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main71200-33R51-E0supersedes 71200-33S81-E0i201010-201108
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; HIGH PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-33210i200603-200901
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-33160i200603-200901
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
main71706-33030-B1i200901-201108
GRAY,TRIM1#
main71706-33030-E0i200603-200901
GREGE,TRIM4#
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-33250-B1i200901-201108
GRAY,TRIM1#
main71812-33250-E0i200603-200901
GREGE,TRIM4#
71849CAP, SEAT ADJUSTER COVER, LH
main71848-33010×2i200901-201108
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-33120-B1i200901-201108
GRAY,TRIM1#
main71862-33120-E0i200901-201108
GREGE,TRIM4#
71868ASHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
main71868-33050-B1i200603-200901
GRAY,TRIM1#
main71868-33050-E0i200603-200901
GREGE,TRIM4#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-33070i200901-201108
*DRP POWER SEAT & LEATHER PACKAGE; *DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER); HIGH PACKAGE; HIGH PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)
main71873-33070-B0i200603-200604
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,GRAY,TRIM1#; POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#
main71873-33070-E0i200603-200604
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,GREGE,TRIM4#; POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
71873ASHIELD, FRONT SEAT CUSHION, LOWER
main71873-33070i200604-200901
main71873-33070-B0i200603-200604
GRAY,TRIM1#
main71873-33070-E0i200603-200604
GREGE,TRIM4#
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-33080i200901-201108
*DRP POWER SEAT & LEATHER PACKAGE; *DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER); HIGH PACKAGE; HIGH PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)
main71874-33080-B0i200603-200604
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,GRAY,TRIM1#; POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#
main71874-33080-E0i200603-200604
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,GREGE,TRIM4#; POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-30020i200603-200901
71875BCOVER, RECLINING ADJUSTER INSIDE, RH
main71876-60170-B6i200901-201108
GRAY,TRIM1#
main71876-60170-E2i200603-200901
GREGE,TRIM4#
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71875-60140i200901-201108
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71875-60150-B5supersedes 71876-58040-B6i200901-201108
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; *DRP POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#; HIGH PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; HIGH PACKAGE,GRAY,TRIM1#
main71875-60150-E2supersedes 71876-58040-E1i200901-201108
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#; HIGH PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; HIGH PACKAGE,GREGE,TRIM4#
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
main71876-60150-B5i200901-201108
GRAY,TRIM1#
main71876-60150-E1i200901-201108
GREGE,TRIM4#
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-60140i200603-200901
71910AHEADREST ASSY, FRONT SEAT
main71910-33560-B1×2supersedes 71910-33671-B0i200603-200701
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,MD. GRAY,TRIM1#; POWER SEAT & LEATHER PACKAGE,MD. GRAY,TRIM1#
main71910-33560-E1×2supersedes 71910-33671-E0i200603-200701
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,GREGE,TRIM4#; POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
main71910-33561-B1×2supersedes 71910-33671-B0i200701-200702
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,MD.GRAY,TRIM1#; POWER SEAT & LEATHER PACKAGE,MD.GRAY,TRIM1#
main71910-33561-B3×2supersedes 71910-33671-B0i200702-200901
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,GRAY,TRIM1#; POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#
main71910-33561-B5×2supersedes 71910-33671-B0i200901-200910
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; *DRP POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#; HIGH PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; HIGH PACKAGE,GRAY,TRIM1#
main71910-33561-E1×2supersedes 71910-33671-E0i200701-200702
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,GREGE,TRIM4#; POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
main71910-33561-E2×2supersedes 71910-33671-E0i200702-200901
POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH,GREGE,TRIM4#; POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
main71910-33561-E4×2supersedes 71910-33671-E0i200901-200910
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#; HIGH PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; HIGH PACKAGE,GREGE,TRIM4#
main71910-33700-B1×2supersedes 71910-33671-B0i200911-201108
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; *DRP POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#; HIGH PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; HIGH PACKAGE,GRAY,TRIM1#
main71910-33700-E0×2supersedes 71910-33671-E0i200911-201108
*DRP POWER SEAT & LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#; HIGH PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; HIGH PACKAGE,GREGE,TRIM4#
71931SUPPORT, FRONT SEAT HEADREST
main71930-42020-B7×2i200603-200708
W(LOCK)&W(BUTTON),GRAY,TRIM1#
main71930-42020-E1×2i200603-200708
W(LOCK)&W(BUTTON),GREGE,TRIM4#
main71930-52030-B1×2i200901-201108
W(LOCK)&W(BUTTON),GRAY,TRIM1#
main71930-52030-E0×2i200901-201108
W(LOCK)&W(BUTTON),GREGE,TRIM4#
main71931-42020-B7×2i200603-200901
W(LOCK)&W/O(BUTTON),GRAY,TRIM1#
main71931-42020-E1×2i200603-200901
W(LOCK)&W/O(BUTTON),GREGE,TRIM4#
72138BCOVER, SEAT TRACK, LH
main72138-33070-B1i200603-200901
GRAY,TRIM1#
main72138-33070-E0i200603-200901
GREGE,TRIM4#
72158COVER, SEAT TRACK BRACKET, INNER LH
main72138-33070-B1i200603-200901
GRAY,TRIM1#
main72138-33070-E0i200603-200901
GREGE,TRIM4#
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-48020i200901-201108
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-33020i200603-200901
8202WIRING & CLAMP
→ Go to FIG 82-02
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
8421AIR BAG
→ Go to FIG 84-21
85822MOTOR ASSY, POWER SEAT SLIDE, LH
main85801-28060i200907-201108
main85820-33040i200901-200907
85822AMOTOR ASSY, POWER SEAT RECLINING, LH
main85801-28050i200907-201108
main85820-33040i200901-200907
85822BMOTOR ASSY, POWER SEAT TILT, LH
main85801-28080i200907-201108
main85820-33040i200901-200907
85822CMOTOR ASSY, POWER SEAT LIFTER, LH
main85801-28070i200907-201108
main85820-33040i200901-200907
9011910921
main90119-10921
9015940159
main90159-40159
9016740044
main90167-40044
9038910041
main90389-10041
9353054010
main93530-54010
9356054010
main93560-54010
9356054012
main93560-54012
9356855016
main93568-55016
9417060600
main94170-60600
9418560600
main94185-60600

44 parts on this diagram · 3 diagrams in section
